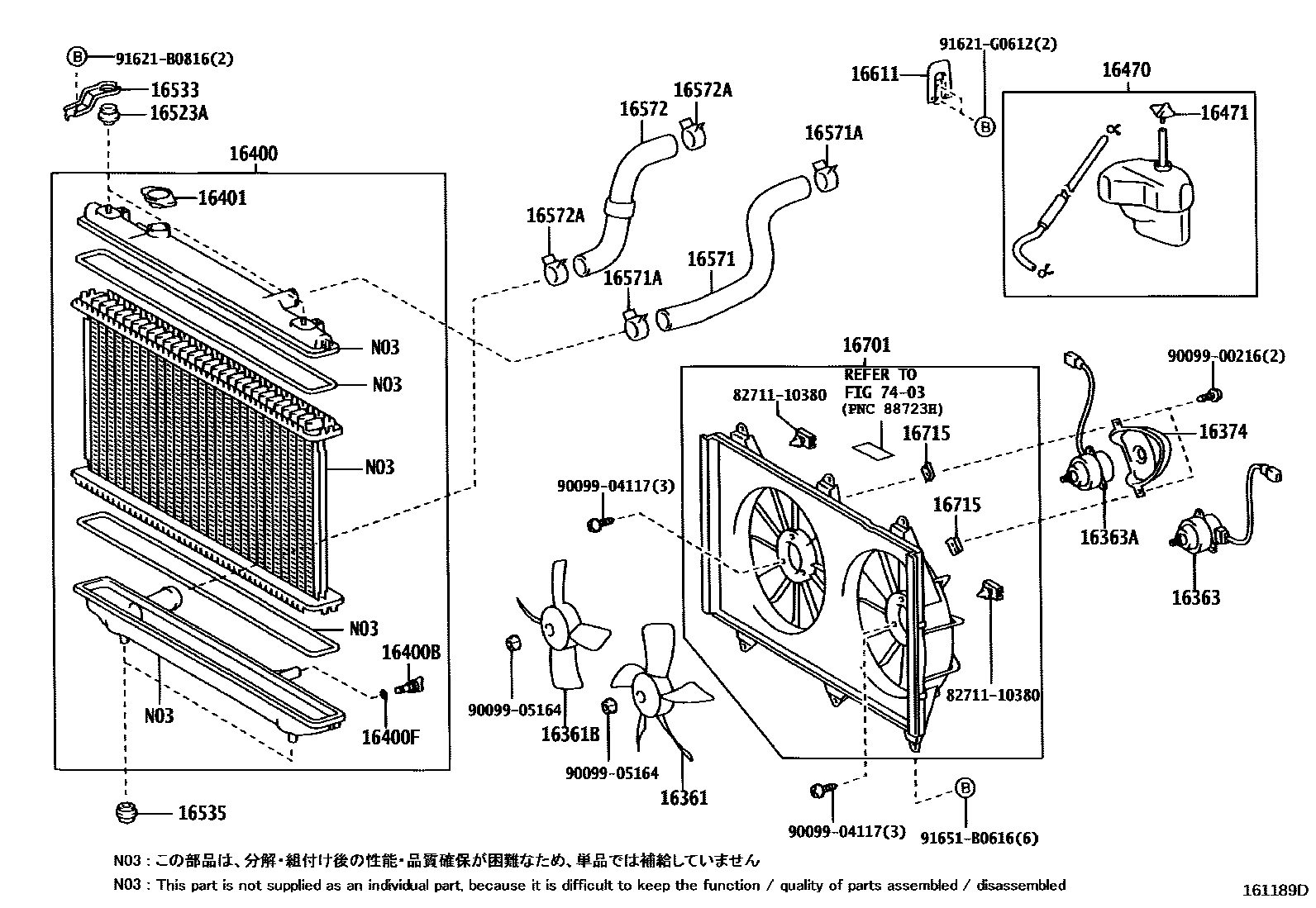

RADIATOR & WATER OUTLET

0001 1TYPE A 0002 1TYPE A 0003 1TYPE B 0004 1TYPE B 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

16361FAN

main16361-20070i1MZFE..MCU2#200011-200308

TYPE B:REFER TO ILLUSTRATION

main16361-20200i3MZFE..MCU2#200308

TOWING PACKAGE

main16361-23030i2AZFE..ACU2#200308

TYPE A:REFER TO ILLUSTRATION

main16361-74140i2AZFE..ACU2#200011-200308

TYPE A:REFER TO ILLUSTRATION

16361BFAN, NO.2

main16361-20080i2AZFE..ACU2#200011-200308

TYPE B:REFER TO ILLUSTRATION

main16361-20210i3MZFE..MCU2#200308

TOWING PACKAGE

main16361-28150i2AZFE..ACU2#200308

TYPE A:REFER TO ILLUSTRATION

main88453-33010i2AZFE..ACU2#200011-200308

TYPE A:REFER TO ILLUSTRATION

16363MOTOR, COOLING FAN

main16363-20170i1MZFE..MCU2#200011-200305

TYPE B:REFER TO ILLUSTRATION

sub16363-20360

main16363-20310i3MZFE..MCU2#200308

TOWING PACKAGE

main16363-20360i1MZFE..MCU2#200305-200705

TYPE B:REFER TO ILLUSTRATION

main16363-20360i3MZFE..MCU2#200308

main16363-74280i2AZFE..ACU2#200011-200308

TYPE A:REFER TO ILLUSTRATION

main16363-74311i2AZFE..ACU2#200308-200705

TYPE A:REFER TO ILLUSTRATION

16363AMOTOR, COOLING FAN, NO.2

main16363-20170i2AZFE..ACU2#200011-200305

TYPE B:REFER TO ILLUSTRATION

sub16363-20360

main16363-20310i3MZFE..MCU2#200308

TOWING PACKAGE

main16363-20360i1MZFE..MCU2#200305-200705

TYPE B:REFER TO ILLUSTRATION

main16363-20360i3MZFE..MCU2#200308

main16363-28270i2AZFE..ACU2#200308-200705

TYPE A:REFER TO ILLUSTRATION

main16363-74290i2AZFE..ACU2#200011-200308

TYPE A:REFER TO ILLUSTRATION

16374INSULATOR, COOLING FAN MOTOR

main16366-28130i2AZFE..ACU2#200011-200308

16400RADIATOR ASSY

main16400-20220i1MZFE..MCU2#200011-200308

main16400-20240i1MZFE..MCU2#200011-200308

TOWING PACKAGE

main16400-20330i3MZFE..MCU2#200308

main16400-20340i3MZFE..MCU2#200308

TOWING PACKAGE

main16400-28240i2AZFE..ACU2#200011-200308

TYPE A:REFER TO ILLUSTRATION

main16400-28260i2AZFE..ACU2#200011-200308

TYPE B:REFER TO ILLUSTRATION

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1MZFE..MCU2#200011-200308

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1MZFE..MCU2#200011-200308

16401CAP SUB-ASSY, RADIATOR

main16401-62100i1MZFE..MCU2#200011-200308

sub16401-31520

16470TANK ASSY, RADIATOR RESERVE

main16470-20070i1MZFE..MCU2#200011-200308

main16470-20100i2AZFE..ACU2#200308

16471CAP SUB-ASSY, RESERVE TANK

main16405-20050i1MZFE..MCU2#200011-200308

main16405-20090i2AZFE..ACU2#200308

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i1MZFE..MCU2#200011-200308

16533SUPPORT, RADIATOR, UPPER

main16533-20010i2AZFE..ACU2#200011-200308

16535SUPPORT, RADIATOR, LOWER

main16535-20010i3MZFE..MCU2#200011-200308

main16535-74210i2AZFE..ACU2#200011-200308

16571HOSE, RADIATOR, INLET

main16571-20050i1MZFE..MCU2#200011-200308

main16571-28110i2AZFE..ACU2#200011-200308

main16571-28210i2AZFE..ACU2#200308

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-35001i3MZFE..MCU2#200206-200308

main90467-37005i1MZFE..MCU2#200204-200206

main90467-37006i2AZFE..ACU2#200011-200204

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-20070i1MZFE..MCU2#200011-200308

main16572-28070i2AZFE..ACU2#200011-200308

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001i1MZFE..MCU2#200206-200308

main90467-37005i2AZFE..ACU2#200204-200206

main90467-37006i1MZFE..MCU2#200011-200204

sub90467-37005

16611BRACKET, RADIATOR RESERVE TANK

main16611-74170i3MZFE..MCU2#200011-200308

16701SHROUD SUB-ASSY, FAN

main16711-20120i1MZFE..MCU2#200011-200308

TYPE B:REFER TO ILLUSTRATION

main16711-28190i2AZFE..ACU2#200011-200308

TYPE A:REFER TO ILLUSTRATION

main16711-28290i2AZFE..ACU2#200308

TYPE A:REFER TO ILLUSTRATION

16715BRACKET, FAN SHROUD

main88688-18030i2AZFE..ACU2#200011-200308

7403

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009900216

main90099-00216

9009904117

main90099-04117

9009905164

main90099-05164

91621B0816

main91621-B0816

91621G0612

main91621-G0612

91651B0616

main91651-B0616

29 parts on this diagram · 10 diagrams in section
