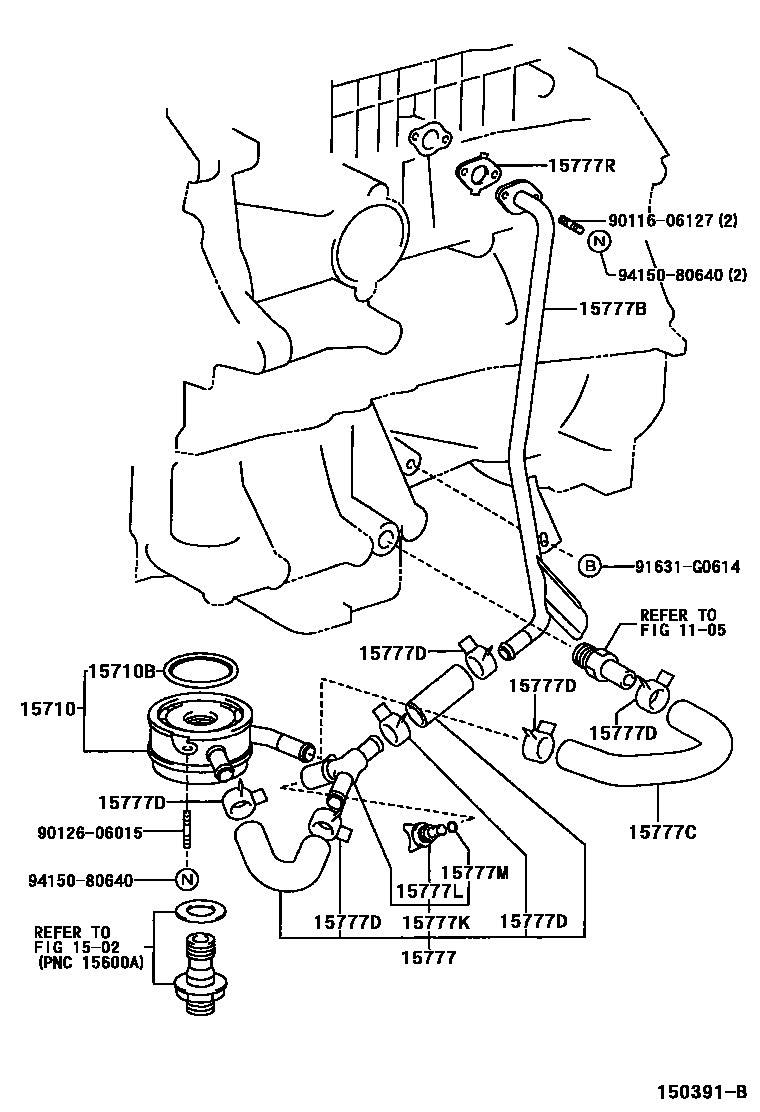

ENGINE OIL COOLER

1105

1502

15710COOLER ASSY, OIL

main15710-28020i2AZFE..ACU2#200011-200308

15710BRING, O(FOR OIL COOLER)

main90301-52006i2AZFE..ACU2#200011-200308

15777HOSE, OIL COOLER

main16267-28020i2AZFE..ACU2#200011-200308

sub16267-28080

15777BPIPE, OIL COOLER

main16279-28010i2AZFE..ACU2#200011-200308

15777CHOSE, OIL COOLER

main16281-28010i2AZFE..ACU2#200011-200308

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main90467-20005i2AZFE..ACU2#200011-200204

sub96134-41900

main96134-41900i2AZFE..ACU2#200204-200308

15777KCOCK ASSY, DRAIN(FOR OIL COOLER HOSE)

main90910-09119i2AZFE..ACU2#200011-200308

15777LPLUG,AIR(FOR OIL COOLER DRAIN COCK)

main23322-54010i2AZFE..ACU2#200011-200308

15777MRING, O(FOR OIL COOLER DRAIN COCK)

main16492-21050i2AZFE..ACU2#200011-200308

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main16258-28020i2AZFE..ACU2#200011-200304

sub16258-28040

main16258-28021i2AZFE..ACU2#200304-200308

sub16258-28040

main16258-28040i2AZFE..ACU2#200308

9011606127

main90116-06127

9012606015

main90126-06015

91631G0614

main91631-G0614

9415080640

main94150-80640

16 parts on this diagram · 1 diagram in section
