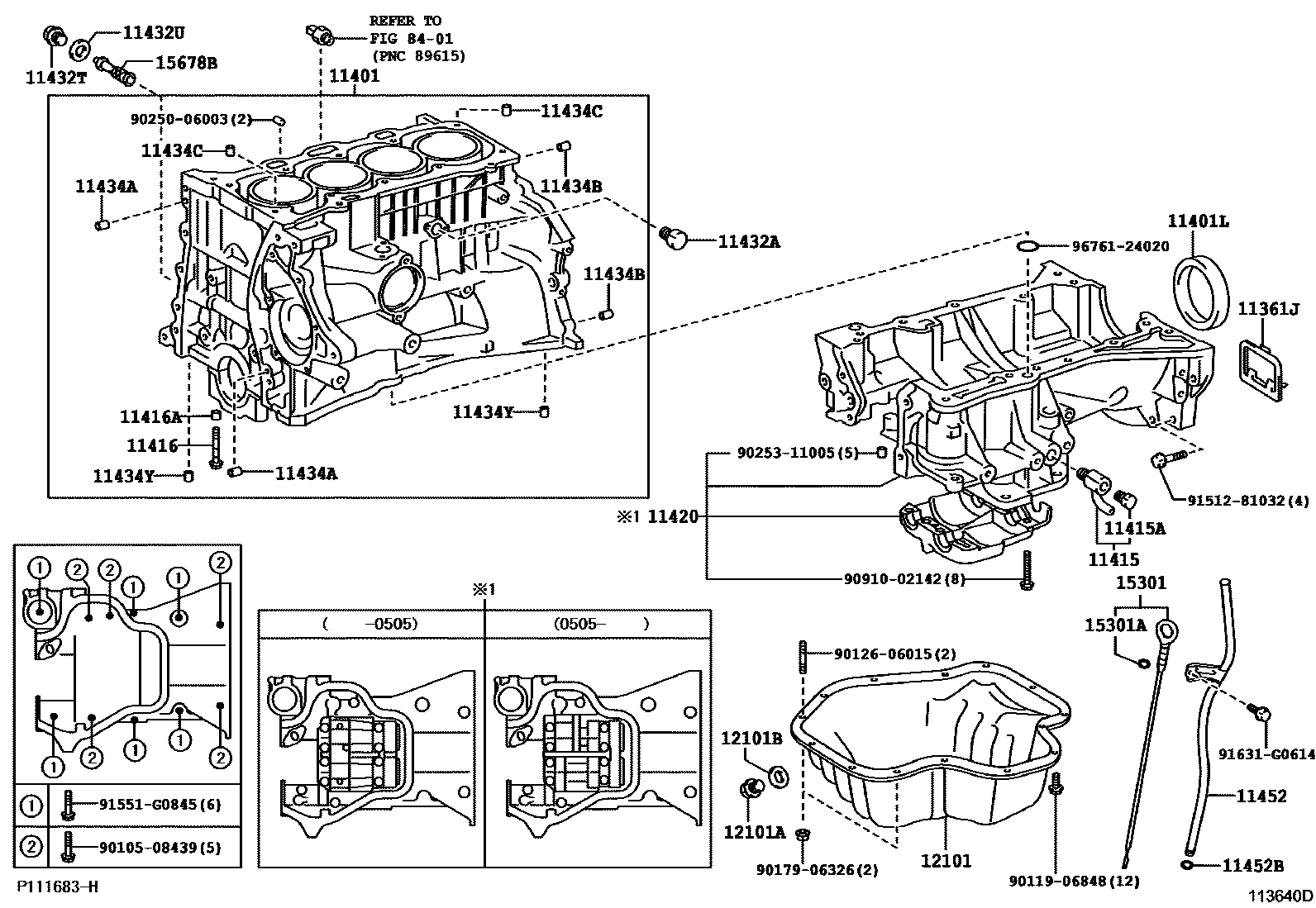

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
ENGINE NO.=0XXXXXX-4XXXXXX
ENGINE NO.=5XXXXXX-9XXXXXX,(J)
sub11410-29325
sub11410-29326
11401LSEAL, ENGINE REAR OIL
sub90311-89007
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11432APLUG, W/HEAD TAPER SCREW, NO.1
11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=15,OD=8
L=18,OD=8
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
L=12,OD=14
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
(L)
(J)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
(L)
(J)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15301ARING, O(FOR OIL LEVEL GAGE)
15678BFILTER, OIL CONTROL VALVE
8401
9010508439
main90105-08439
9011906848
main90119-06848
9012606015
main90126-06015
9017906326
main90179-06326
9025006003
main90250-06003
9025311005
main90253-11005
9091002142
main90910-02142
9151281032
main91512-81032
91551G0845
main91551-G0845
91631G0614
main91631-G0614
9676124020
main96761-24020
35 parts on this diagram · 4 diagrams in section
