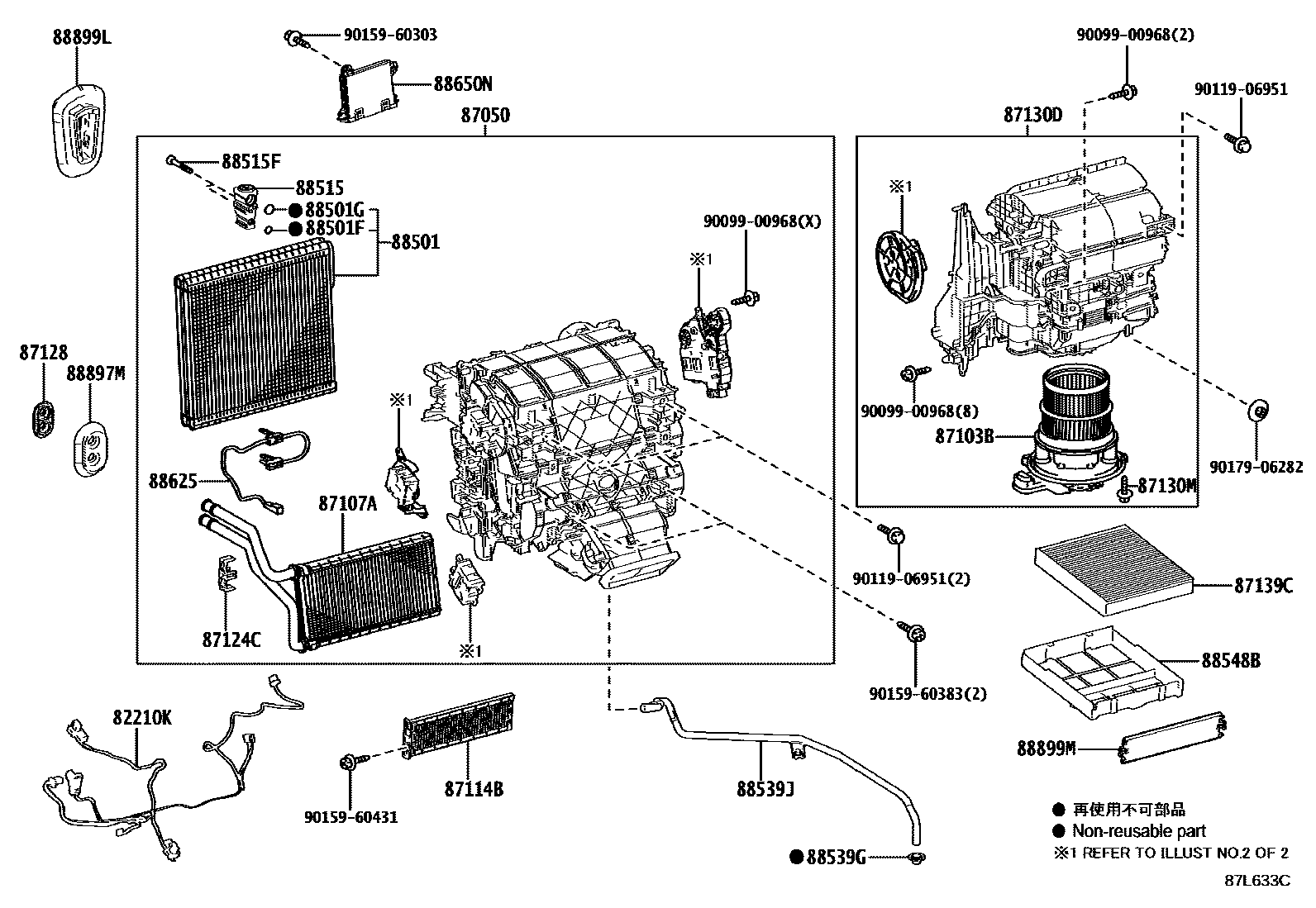

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
DEODORANT FILTER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88548BCASE, AIR FILTER
88650NAMPLIFIER ASSY, AIR CONDITIONER
PREMIUM+&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
sub886H0-48150
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(FRONT SEAT)
sub886H0-48150
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
sub886H0-48180
sub886H0-48081
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(FRONT SEAT)
sub886H0-48081
sub886H0-48091
SEAT HEATER-WITH(*DRP(RADIATION HEATER) & REAR SEAT)
sub886H0-48091
SEAT HEATER-WITH(*DRP(RADIATION HEATER) & REAR SEAT)
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
PREMIUM+
88897MGROMMET (FOR HEATER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
9009900968
main90099-00968
9011906951
main90119-06951
9015960303
main90159-60303
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
29 parts on this diagram · 2 diagrams in section
