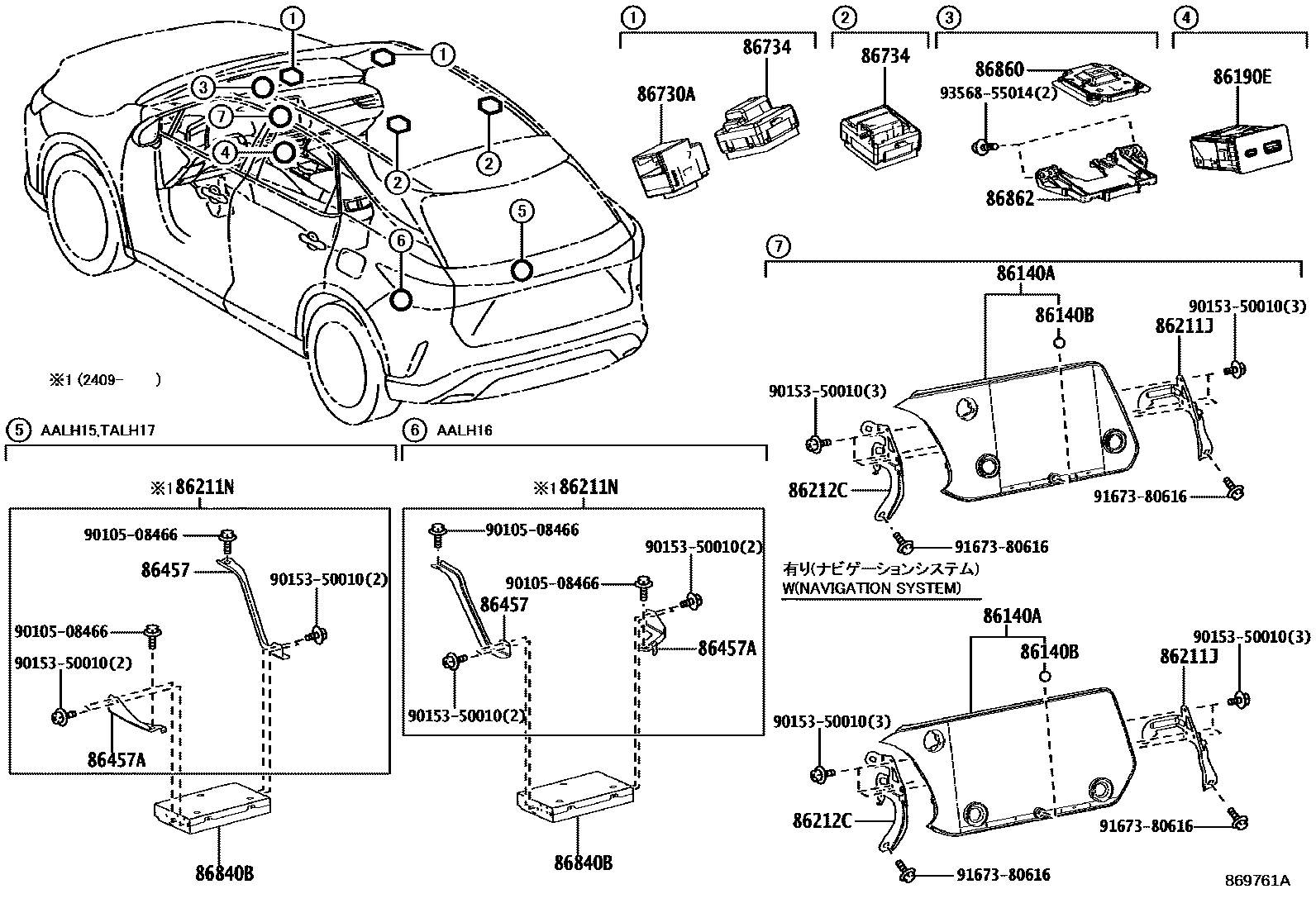

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-48510iAALH16202211-202308

DENSO TEN

main86100-48550iAALH16202308-202410

PANASONIC

main86100-48660iTALA10202410

PANASONIC

main86100-48660iTALA10202410

PANASONIC,EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM

main86140-48G90iTALA10202410

PANASONIC

main86140-48J00iTALA10202211-202410

PANASONIC

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-23061iAALH15,TALH17202211-202308

main90010-24204iAALH16202211-202410

86190EADAPTER ASSY, STEREO JACK

main86190-48110iAALH1#,TALA10,TALH17202211

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-48310iAALH1#,TALA10,TALH17202211

86211NBRACKET, NAVIGATION COMPUTER, NO.1

main86211-48360iAALH15,TALH17202410

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-48310iAALH1#,TALA10,TALH17202211

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-48070iAALH15,TALH17202211

main86457-48090iAALH16202211-202308

86457ABRACKET, MULTI-MEDIA MODULE NO.2

main86457-48080iAALH15,TALH17202211

main86457-48100iAALH16202211-202308

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010iAALH1#,TALA10,TALH17202211

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030iTALA10,TALH17202211

86840BCOMPUTER ASSY, NAVIGATION

main86840-78040iAALH16202211-202410

86860ANTENNA ASSY, NAVIGATION

main86880-42010iTALA10202211

main86880-42030iAALH16202211-202308

86862BRACKET, NAVIGATION ANTENNA

main86862-48060iAALH1#,TALA10,TALH17202211

9010508466

main90105-08466

9015350010

main90153-50010

9167380616

main91673-80616

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section
