RADIO RECEIVER & AMPLIFIER & CONDENSER

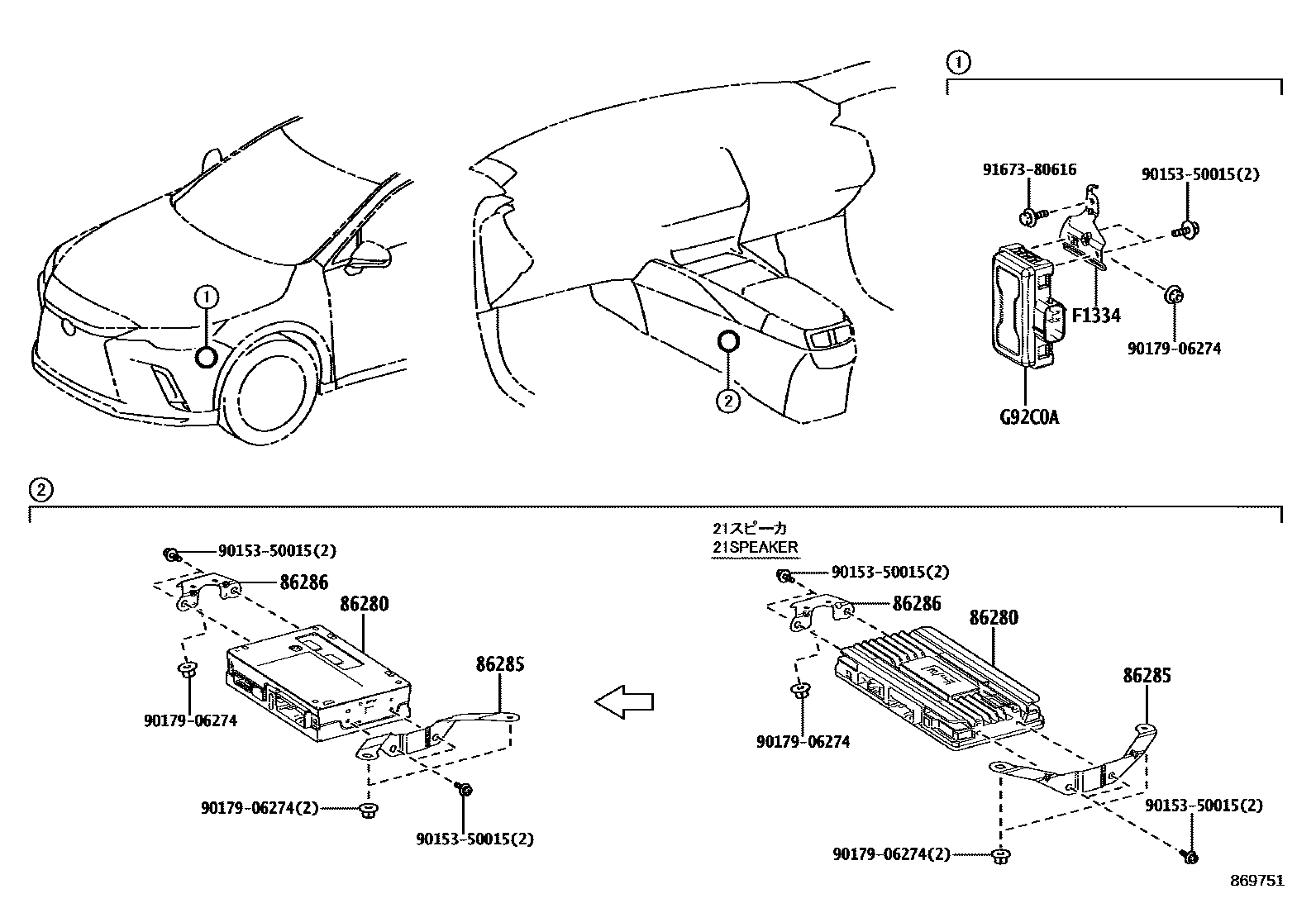

Parts diagram
86280AMPLIFIER ASSY, STEREO COMPONENT
main86280-48460i202211-202410
PREMIUM&EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM
main86280-48460i202211-202410
PREMIUM+&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM
main86280-48460i202410
EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM
main86280-48460i202211
main86280-48480i202211
main86280-48510i202211-202308
AUDIO-EMV & 21SPEAKER
sub86280-48511
main86280-48511i202309-202411
AUDIO-EMV & 21SPEAKER
main86280-48512i202412
AUDIO-EMV & 21SPEAKER
86285BRACKET, AMPLIFIER, NO.1
main86285-48210i202211
main86285-48230i202211
AUDIO-EMV & 21SPEAKER
86286BRACKET, AMPLIFIER, NO.2
main86286-48160i202211
F1334BRACKET, CONVERTER CONTROL, NO.1
mainF13340E020i202211
G92C0ACONVERTER ASSY, ECO-RUN VEHICLE
mainG92C030020i202211
9015350015
main90153-50015
9017906274
main90179-06274
9167380616
main91673-80616

8 parts on this diagram · 2 diagrams in section
