HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85271AHOSE, HEADLAMP CLEANER, NO.2
L=280
L=280,COLD AREA SPEC
L=280,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=280,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1550
L=1550,COLD AREA SPEC
L=1550,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1550,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85272ACLAMP, HEADLAMP CLEANER, NO.1
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85272BCLAMP, HEADLAMP CLEANER, NO.2
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85272CCLAMP, HEADLAMP CLEANER, NO.3
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85272DCLAMP, HEADLAMP CLEANER, NO.4
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85330BBUSH, HEADLAMP CLEANER WASHER JAR
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85353COVER, HEADLAMP WASHER, RH
WHITE NOVA GF.,083
COLD AREA SPEC,WHITE NOVA GF.,083
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),WHITE NOVA GF.,083
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),WHITE NOVA GF.,083
SONIC CHROME,1L1
COLD AREA SPEC,SONIC CHROME,1L1
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC CHROME,1L1
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC CHROME,1L1
SONIC IRIDIUM,1L2
COLD AREA SPEC,SONIC IRIDIUM,1L2
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC IRIDIUM,1L2
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
COLD AREA SPEC,GRAPHITE BLACK GF.,223
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),GRAPHITE BLACK GF.,223
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),GRAPHITE BLACK GF.,223
SONIC COPPER,4Y5
COLD AREA SPEC,SONIC COPPER,4Y5
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC COPPER,4Y5
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC COPPER,4Y5
HEAT BLUE CONTRAST LAYERI,8X1
85354COVER, HEADLAMP WASHER, LH
WHITE NOVA GF.,083
COLD AREA SPEC,WHITE NOVA GF.,083
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),WHITE NOVA GF.,083
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),WHITE NOVA GF.,083
SONIC CHROME,1L1
COLD AREA SPEC,SONIC CHROME,1L1
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC CHROME,1L1
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC CHROME,1L1
SONIC IRIDIUM,1L2
COLD AREA SPEC,SONIC IRIDIUM,1L2
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC IRIDIUM,1L2
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
COLD AREA SPEC,GRAPHITE BLACK GF.,223
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),GRAPHITE BLACK GF.,223
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),GRAPHITE BLACK GF.,223
SONIC COPPER,4Y5
COLD AREA SPEC,SONIC COPPER,4Y5
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC COPPER,4Y5
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC COPPER,4Y5
HEAT BLUE CONTRAST LAYERI,8X1
85361CBRACKET, WASHER
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85362BRACKET, WASHER, NO.2
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=80
L=80,COLD AREA SPEC
L=80,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=80,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
9007515059
main90075-15059
9007515099
main90075-15099
9007517013
main90075-17013
9007591002
main90075-91002
9016750063
main90167-50063

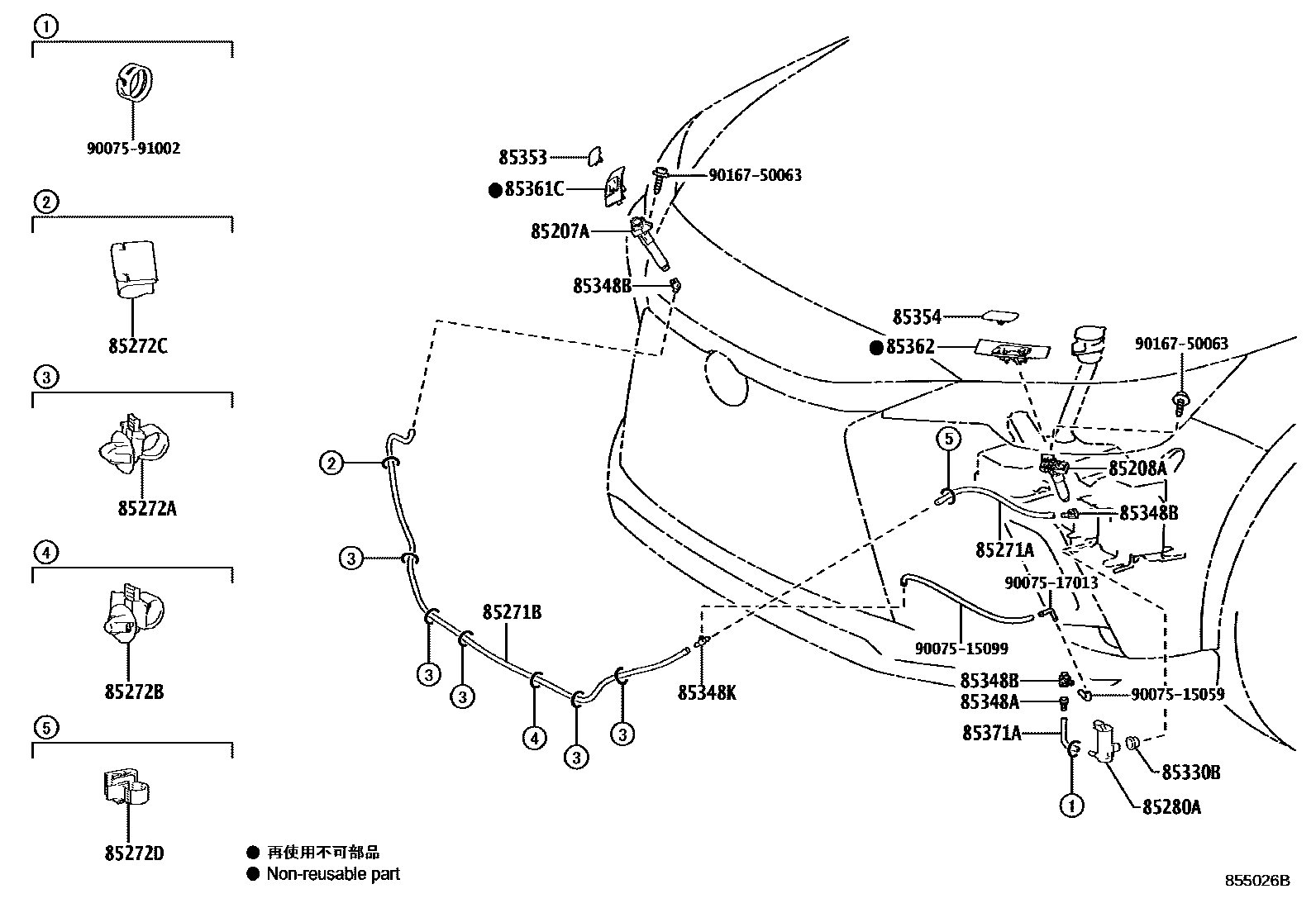

23 parts on this diagram · 1 diagram in section
