DC/DC CONVERTER & CHARGER(BEV OR FCEV)

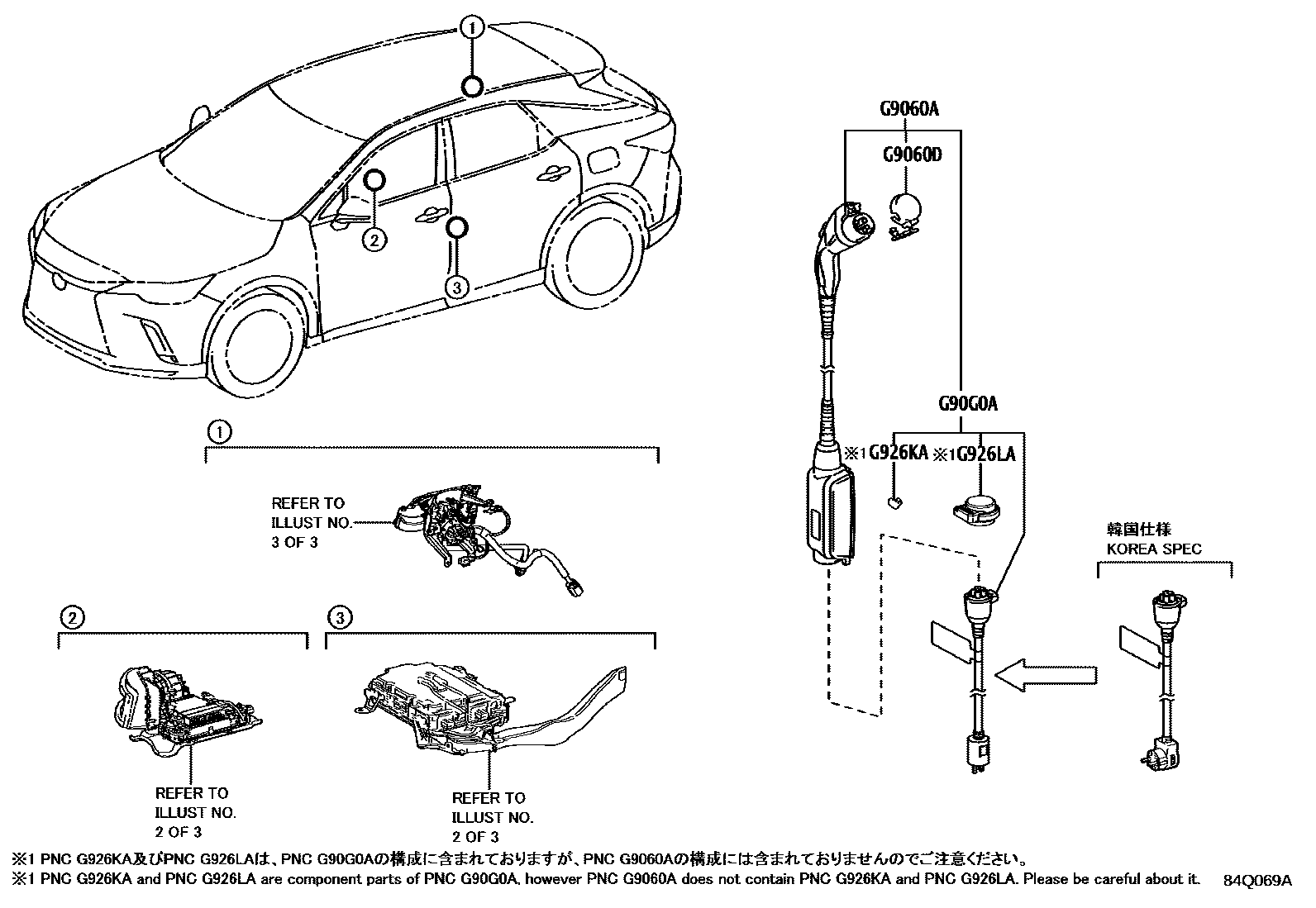

Parts diagram

G9060ACABLE ASSY, ELECTRIC VEHICLE CHARGER

mainG906047130i202308

mainG906047411i202211-202308

G9060DCOVER, EV CHARGER CABLE

main82821-47650i202211

G90G0APLUG ASSY, CABLE EV CHARGER

mainG90G047100i202211-202308

mainG90G047120i202308

G926KAKEY, PLUG CABLE EV CHARGER

mainG926K47020i202211

G926LACOVER, PLUG CABLE EV CHARGER

mainG926L47020i202211

5 parts on this diagram · 3 diagrams in section
