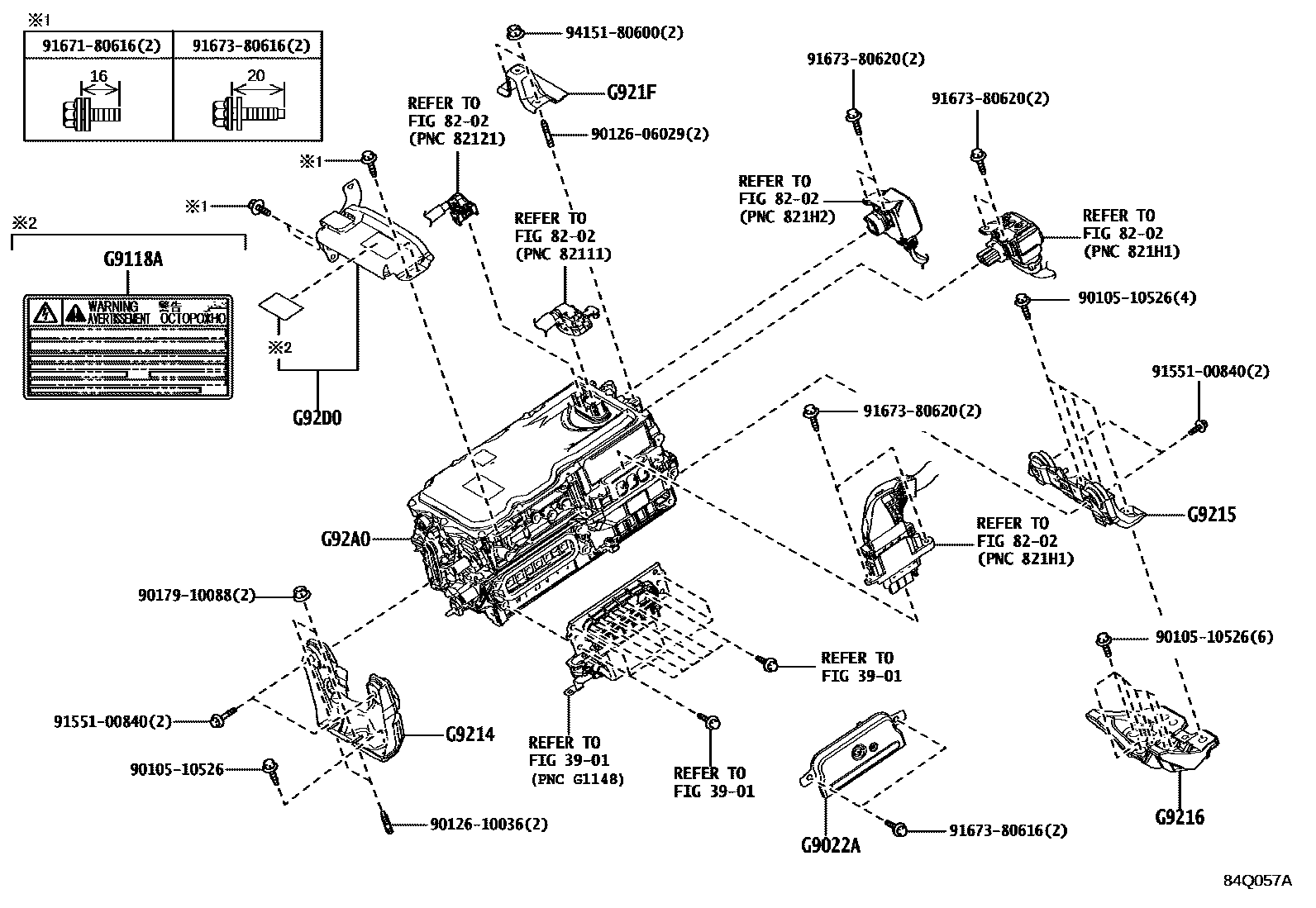

HEV INVERTER

0001 1 0002 1 0003 1 0004 1 0005 1

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAALH1#202211

mainG920348030iTALH17202211

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010iAALH1#202211

G9214BRACKET, INVERTER, NO.1

mainG921442010iAALH16202211

mainG921448070iAALH15202211

G9215BRACKET, INVERTER, NO.2

mainG921542010iAALH15202211

mainG921542020iAALH16202211

G9216BRACKET, INVERTER, NO.3

mainG921642020iAALH16202211

mainG921678020iAALH15202211

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010iAALH1#202211

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A048381iAALH15202211-202302

subG92A0-48382

mainG92A048382iAALH15202303-202312

subG92A0-48383

mainG92A048383iAALH15202401

mainG92A048400iAALH16202211-202307

subG92A0-48401

mainG92A048401iAALH16202308-202404

subG92A0-48402

mainG92A048402iAALH16202405

mainG92H048011iTALH17202211-202508

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D042010iAALH1#202211

9010510526

main90105-10526

9012606029

main90126-06029

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167180616

main91671-80616

9167380616

main91673-80616

9167380620

main91673-80620

9415180600

main94151-80600

19 parts on this diagram · 5 diagrams in section
