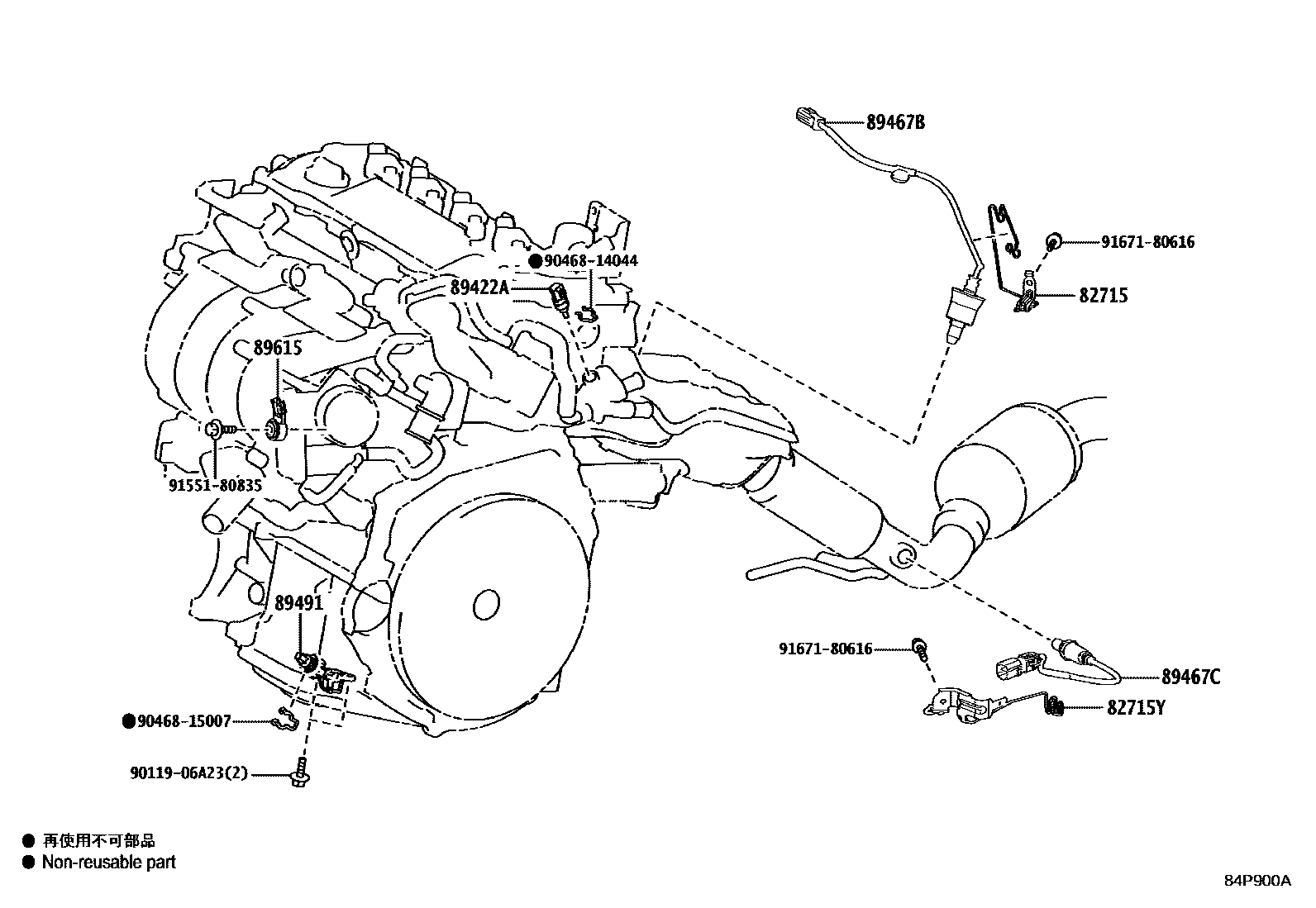

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1COWL 0010 1INSTRUMENT PANEL 0011 1CONSOLE BOX 0012 1STEERING 0013 1SEAT 0014 1DOOR & ROOF 0015 1FLOOR & BACK DOOR 1/2 0016 1FLOOR & BACK DOOR 2/2 0017 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-33V10iAALH1#202211

main8946A-48110iTALA10,TALH17202211-202406

main8946A-48130iTALA10,TALH17202406

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-42K60iAALH15202211

main8946A-78030iTALA10,TALH17202211

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAALH1#,TALA10,TALH17202211

89467BSENSOR, AIR FUEL RATIO

main89467-48400iTALA10,TALH17202211

main89467-78070iAALH1#202211

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42170iAALH15202211

main89467-42190iAALH16202211

main89467-78050iTALA10,TALH17202211

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iAALH1#,TALA10,TALH17202211

89615SENSOR, KNOCK CONTROL

main89615-20090iAALH1#202211

main89615-78010iTALA10,TALH17202211

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180616

main91671-80616

12 parts on this diagram · 17 diagrams in section
