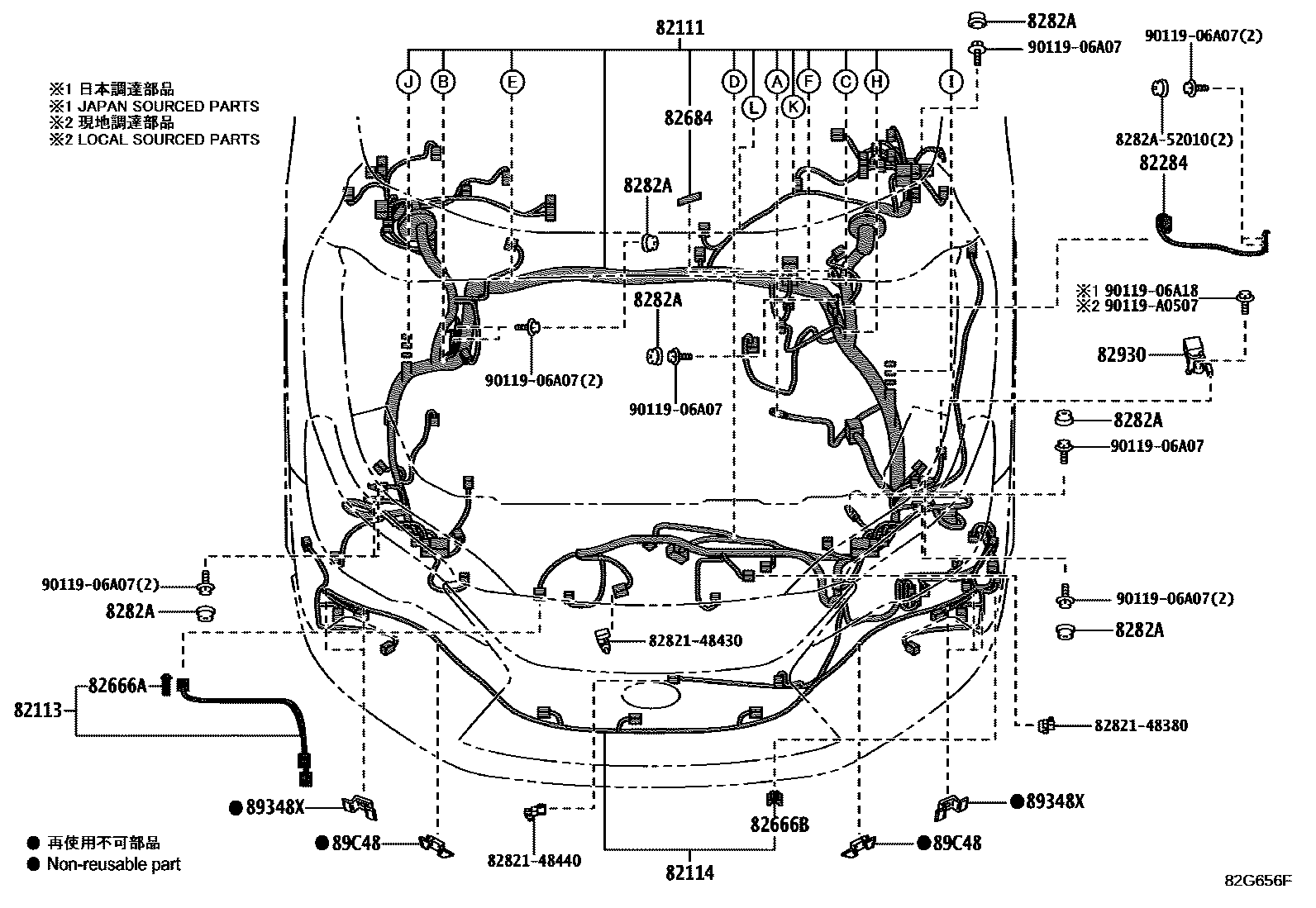

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
82113WIRE, ENGINE ROOM, NO.3
82114WIRE, ENGINE ROOM, NO.4
82284WIRE, EARTH
82666AHOLDER, CONNECTOR NO.2
82666BHOLDER, CONNECTOR NO.3
82684LABEL, CUT HIGH VOLTAGE ELECTRICITY
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE(WIDE) & WITH(*AHB)
8282ACAP, EARTH BOLT, NO.1
ANTI-THEFT SYSTEM-WITH(*IM&ALARM&SIREN&*IS&TILT)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
HEADLAMP-LED TRIPLE BEAM TYPE(WIDE) & WITH(*AHB)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
HEADLAMP-LED TRIPLE BEAM TYPE(WIDE) & WITH(*AHB)&ADVANCED PARK-WITH(REMOTE CONTROLFUNCTION)
HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&ADVANCED PARK-WITH
82930CONDENSER ASSY, WIRING HARNESS, NO.1
89348XCLIP, ULTRASONIC SENSOR, FRONT
89C48CLIP, ULTRASONIC SENSOR, FRONT NO.2
8282148380RETAINER, HEADLAMP HARNESS
main82821-48380
8282148430RETAINER, HEADLAMP HARNESS
main82821-48430
8282148440RETAINER, HEADLAMP HARNESS
main82821-48440
8282A52010CAP, EARTH BOLT, NO.1
main8282A-52010
9011906A07
main90119-06A07
9011906A18
main90119-06A18
90119A0507
main90119-A0507
18 parts on this diagram · 39 diagrams in section
