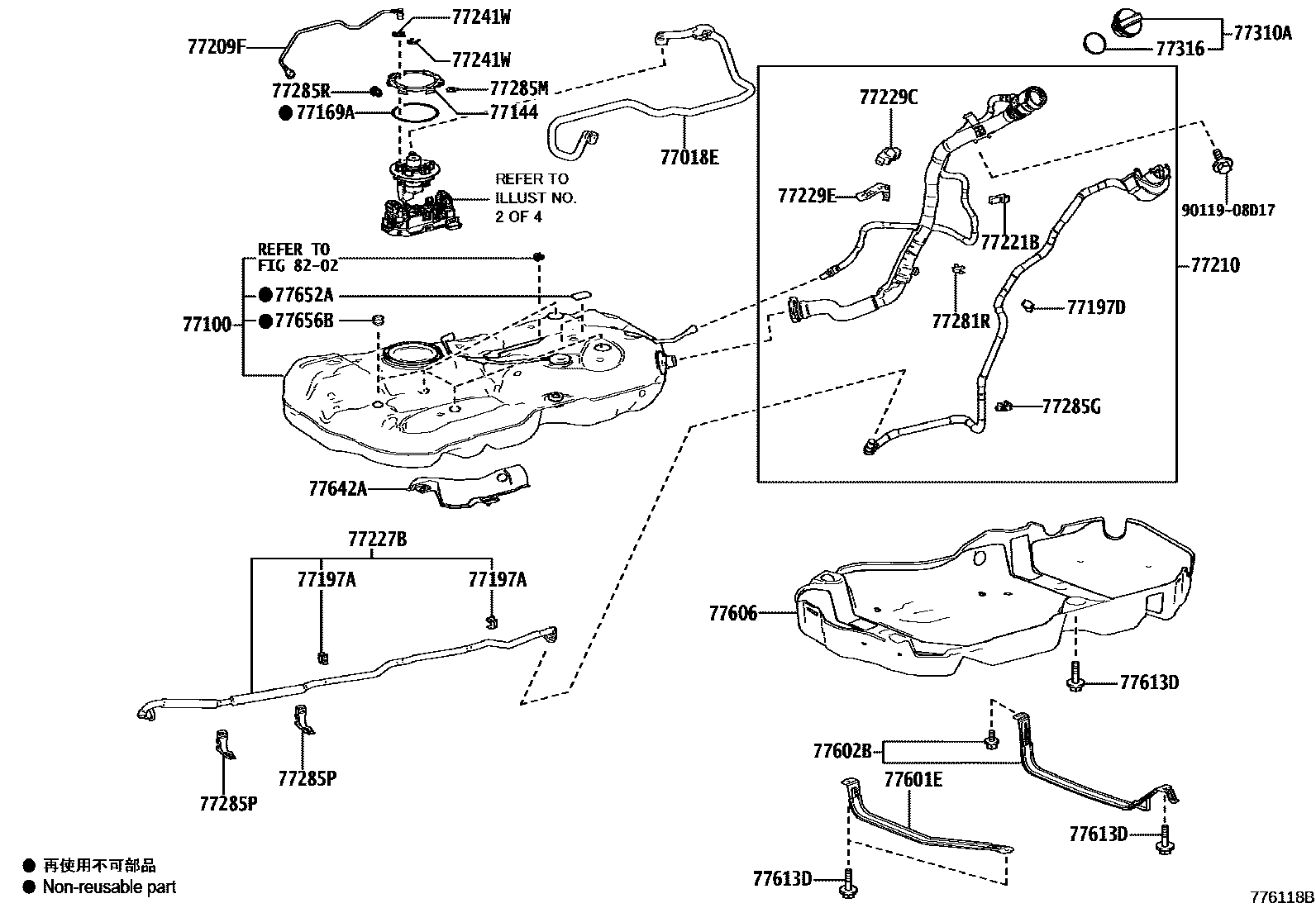

FUEL TANK & TUBE
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77227BTUBE, FUEL TANK BREATHER, NO.7
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77281RCLAMP, FUEL FILLER PIPE, NO.2
77285GCLAMP, FUEL TUBE, NO.1
77285MCLAMP, FUEL TUBE, NO.1
77285PCLAMP, NO.1(FOR CHARCOAL CANISTER PIPE)
77285RCLAMP, FUEL TUBE, NO.1
77316GASKET, FUEL TANK CAP
77601EBAND SUB-ASSY, FUEL TANK
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613DBOLT, FUEL TANK BAND SET, NO.2
L=59
L=29
77652CUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
8202
9011908D17
main90119-08D17
30 parts on this diagram · 9 diagrams in section
