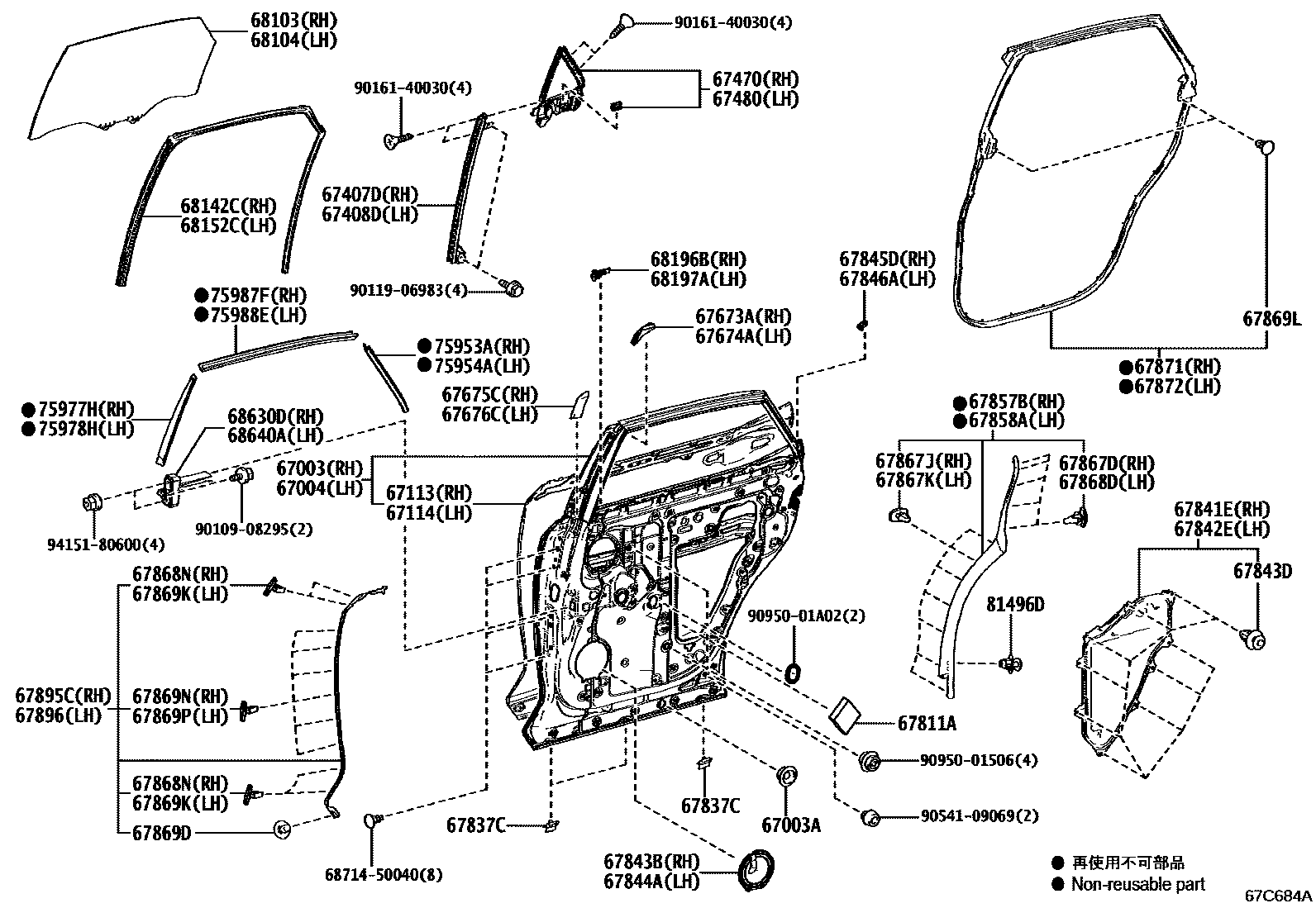

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1HIGH DECREMENT MASTIC SEAL

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-48280iAALH15,TALA10202211-202308

main67003-48290iTALH17202211

LUXURY

main67003-48290iAALH16202308-202509

67003APLUG, HOLE(FOR REAR DOOR PANEL)

main90950-01958iAALH1#,TALA10,TALH17202211-202212

OD=41

main90950-01A48iAALH1#,TALA10,TALH17202212

OD=38

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-48280iAALH16202211-202308

main67004-48290iAALH16202308-202509

main67004-48290iTALH17202211

LUXURY

67113PANEL, REAR DOOR, OUTER RH

main67113-48100iAALH1#,TALA10,TALH17202211

67114PANEL, REAR DOOR, OUTER LH

main67114-48100iAALH1#,TALA10,TALH17202211

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-48110iAALH1#,TALA10,TALH17202211

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-48120iAALH1#,TALA10,TALH17202211

67470SEAL ASSY, REAR DOOR REAR GUIDE, RH

main67470-48020iAALH1#,TALA10,TALH17202211

67480SEAL ASSY, REAR DOOR REAR GUIDE, LH

main67480-48020iAALH1#,TALA10,TALH17202211

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48060iAALH1#,TALA10,TALH17202211

67674AGARNISH, REAR DOOR FRAME, LH

main67674-48060iAALH1#,TALA10,TALH17202211

67675CGARNISH, REAR DOOR FRAME, NO.2 RH

main67675-48010iAALH1#,TALA10,TALH17202211

67676CGARNISH, REAR DOOR FRAME, NO.2 LH

main67676-48010iAALH1#,TALA10,TALH17202211

67811APAD, REAR DOOR SILENCER

main67811-30100iAALH1#,TALA10,TALH17202211

67837CSEAL, REAR DOOR DUST PROOF

main67837-48050iAALH1#,TALA10,TALH17202211

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-48100iAALH1#,TALA10,TALH17202211

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-48090iAALH1#,TALA10,TALH17202211

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-48010iAALH1#,TALA10,TALH17202211

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-09206iAALH1#,TALA10,TALH17202211

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-48010iAALH1#,TALA10,TALH17202211

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-48020iAALH1#,TALA10,TALH17202211

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-48020iAALH1#,TALA10,TALH17202211

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-48040iAALH1#,TALA10,TALH17202211

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-48030iAALH1#,TALA10,TALH17202211

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52010iAALH1#,TALA10,TALH17202211

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main90467-08219iAALH1#,TALA10,TALH17202211

67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)

main90467-08219iAALH1#,TALA10,TALH17202211

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-30110iAALH1#,TALA10,TALH17202211

67868NCLIP, DOOR WEATHERSTRIP, RH

main67869-48010iAALH1#,TALA10,TALH17202211

67869DCLIP, DOOR WEATHERSTRIP

main67869-26050iAALH1#,TALA10,TALH17202211

67869KCLIP, DOOR WEATHERSTRIP, LH

main67869-48010iAALH1#,TALA10,TALH17202211

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050iAALH1#,TALA10,TALH17202211

67869NCLIP, REAR DOOR WEATHERSTRIP, RH

main67869-48020iAALH1#,TALA10,TALH17202211

67869PCLIP, REAR DOOR WEATHERSTRIP, LH

main67869-48030iAALH1#,TALA10,TALH17202211

67871WEATHERSTRIP, REAR DOOR, RH

main67871-48110iAALH1#,TALA10,TALH17202211

67872WEATHERSTRIP, REAR DOOR, LH

main67872-48110iAALH1#,TALA10,TALH17202211

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-48050iAALH1#,TALA10,TALH17202211

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-48050iAALH1#,TALA10,TALH17202211

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-48320iAALH16202211-202410

main68103-48330iAALH16202211-202410

main68103-48390iAALH16202410

KOREA SPEC

main68103-48400iAALH16202410

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-48320iAALH16202211-202410

main68104-48330iAALH16202211-202410

main68104-48390iAALH15,TALH17202410

KOREA SPEC

main68104-48400iAALH16202410

68142CRUN, REAR DOOR GLASS, RH

main68142-48100iAALH1#,TALA10,TALH17202211-202410

sub68142-48101

main68142-48101iAALH1#,TALA10,TALH17202410

68152CRUN, REAR DOOR GLASS, LH

main68152-48100iAALH1#,TALA10,TALH17202211-202410

main68152-48101iAALH1#,TALA10,TALH17202410

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-48040iAALH1#,TALA10,TALH17202211

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-48040iAALH1#,TALA10,TALH17202211

68630DCHECK ASSY, REAR DOOR, RH

main68630-48100iAALH1#,TALA10,TALH17202211

68640ACHECK ASSY, REAR DOOR, LH

main68640-48090iAALH1#,TALA10,TALH17202211

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-48060iAALH1#,TALA10,TALH17202211

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-48060iAALH1#,TALA10,TALH17202211

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-48070iAALH1#,TALA10,TALH17202211

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-48070iAALH1#,TALA10,TALH17202211

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-48110iAALH15,TALA10202211-202308

main75987-48120iTALH17202211

LUXURY

main75987-48120iAALH16202308-202509

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-48110iAALH16202211-202308

main75988-48120iAALH16202308-202509

main75988-48120iTALH17202211

LUXURY

81496DGUIDE, REAR COMBINATION LAMP

main81496-50010iAALH1#,TALA10,TALH17202211

6871450040

main68714-50040

9010908295

main90109-08295

9011906983

main90119-06983

9016140030

main90161-40030

9054109069

main90541-09069

9095001506

main90950-01506

9095001A02

main90950-01A02

9415180600

main94151-80600

61 parts on this diagram · 3 diagrams in section
