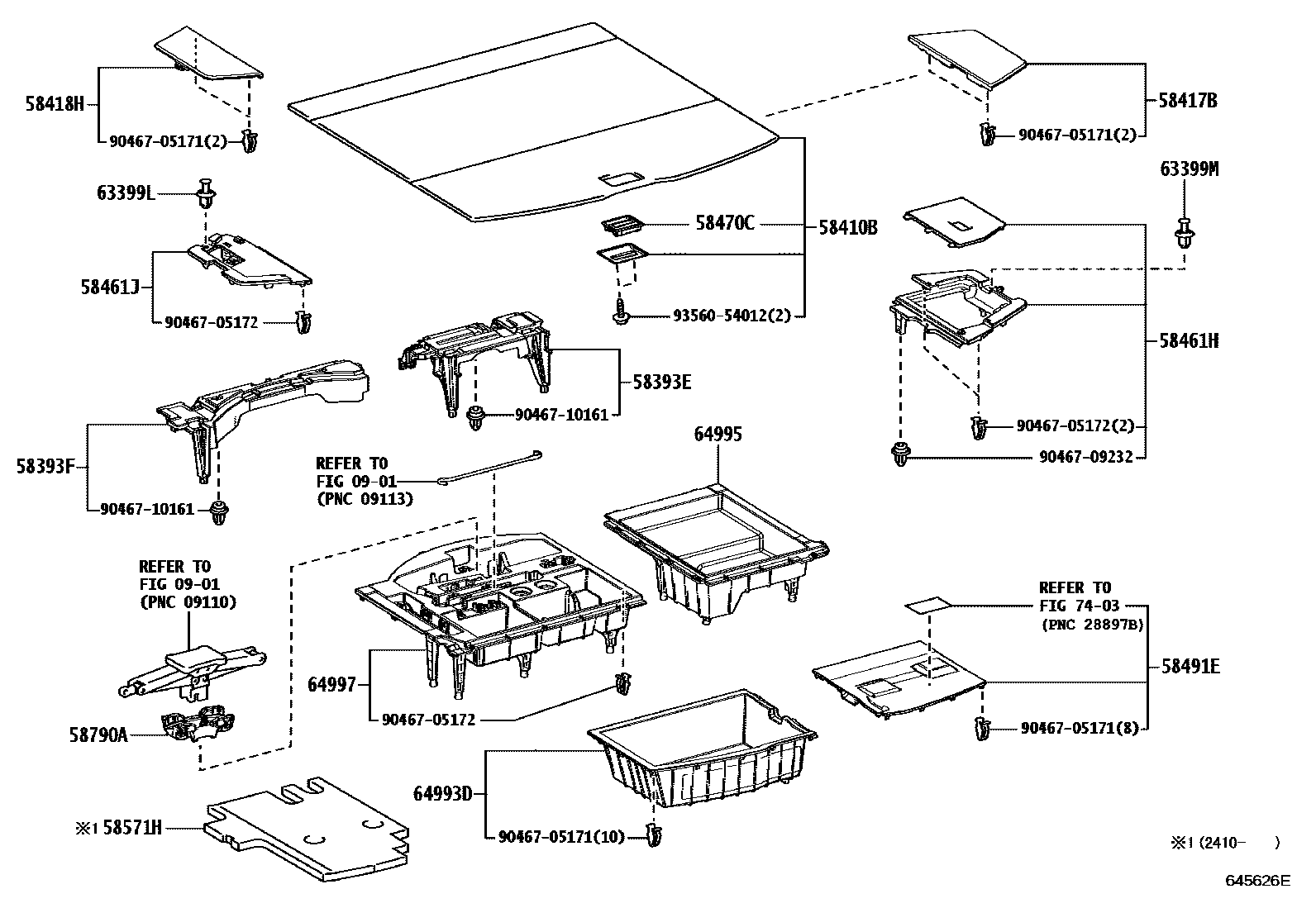

DECK BOARD & DECK TRIM COVER
0901
58393ESUPPORT, DECK BOARD SET
58393FSUPPORT, DECK BOARD SET, LH
58410BBOARD ASSY, DECK
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,1#,2#,4#
58417BBOARD, REAR FLOOR, REAR RH
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
58418HBOARD, REAR FLOOR, REAR LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
58461HCOVER, JUNCTION BLOCK SERVICE
58461JCOVER, JUNCTION BLOCK SERVICE, LH
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,1#,2#,4#
58491EPLATE, BATTERY SERVICE COVER
58571HCARPET, REAR FLOOR
58790ACARRIER ASSY, JACK
63399LCLIP, JUNCTION BLOCK SERVICE COVER, LH
63399MCLIP, JUNCTION BLOCK SERVISE COVER, RH
64993BOX, DECK FLOOR, REAR
64993DBOX, DECK FLOOR, REAR LH
64997BOX, DECK FLOOR, LH
7403
9046705171
main90467-05171
9046705172
main90467-05172
9046709232
main90467-09232
9046710161
main90467-10161
9356054012
main93560-54012
24 parts on this diagram · 5 diagrams in section
