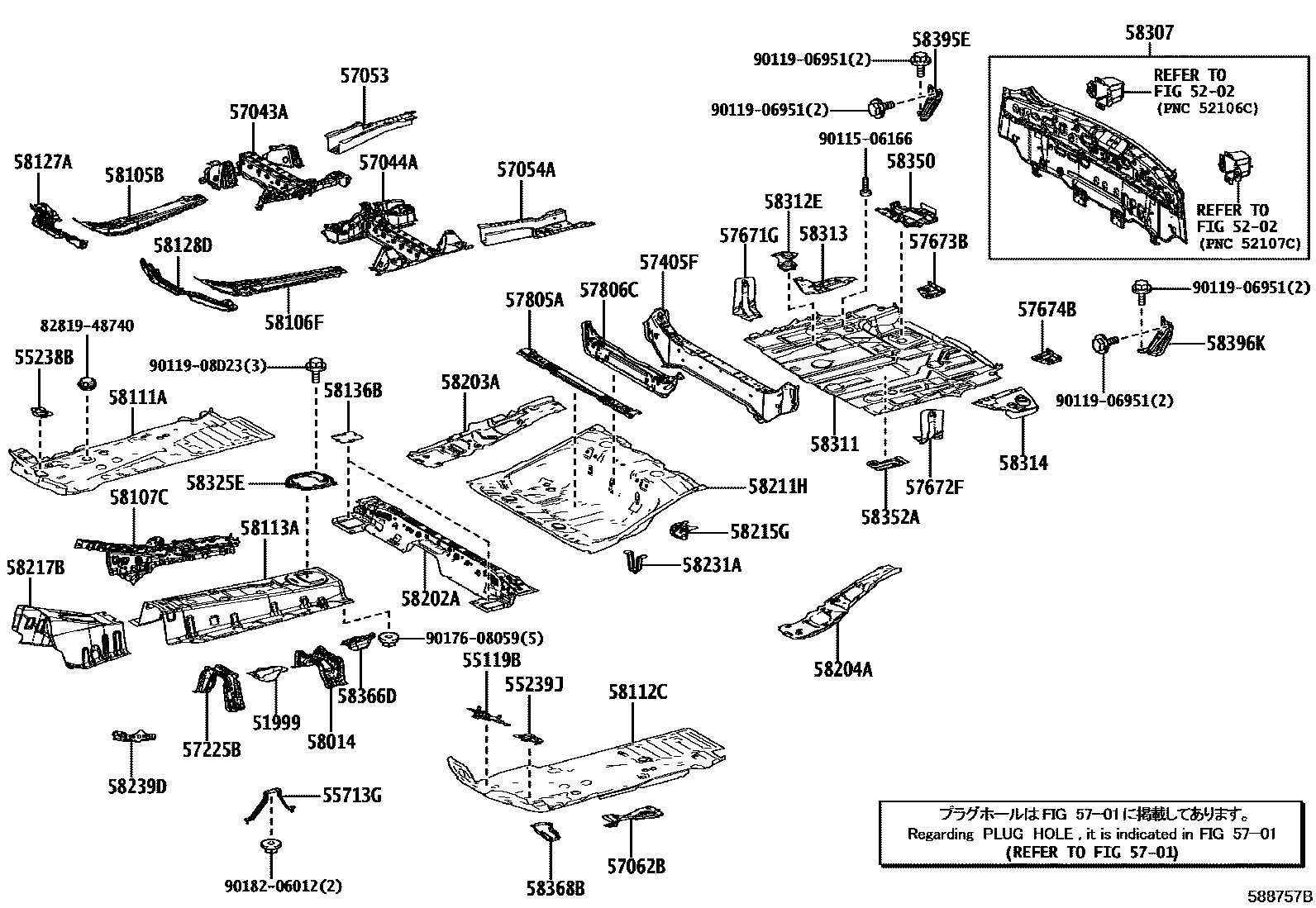

FLOOR PAN & LOWER BACK PANEL
51999HANGER, EXHAUST PIPE SUPPORT, NO.7
5202
55119BEXTENSION, DASH PANEL, LH
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
55713GBRACKET, FRONT LOWER PANEL
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
KOREA SPEC
KOREA SPEC&STEP & STEP COVER-WITH(WELDNUT FOR SIDE STEP)
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
KOREA SPEC
KOREA SPEC&STEP & STEP COVER-WITH(WELDNUT FOR SIDE STEP)
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57225BBRACE, FRONT MOUNTING BRACKET
57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57671GMEMBER, REAR FLOOR CROSS, NO.1 RH
57672FMEMBER, REAR FLOOR CROSS, NO.1 LH
57673BBRACE, REAR FLOOR NO.2 CROSSMEMBER, RH
57674BBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH
57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57806CREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136BCOVER, CENTER FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58211HPAN, CENTER FLOOR
58215GBRACKET, REAR SEAT MOUNTING, NO.1
58217BPLATE, FRONT FLOOR
58231ABRACKET, CENTER FLOOR HEAT INSULATOR, NO.1
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58352ABRACKET, REAR FLOOR STAY
58366DREINFORCEMENT, FUEL TANK SUPPORT, REAR
58368BBRACKET, FUEL TUBE, NO.2
58395EGUSSET, BACK DOOR OPENING, LOWER RH
58396KGUSSET, BACK DOOR OPENING, LOWER LH
8281948740GROMMET, WIRING HARNESS
main82819-48740
9011506166
main90115-06166
9011906951
main90119-06951
9011908D23
main90119-08D23
9017608059
main90176-08059
9018206012
main90182-06012
56 parts on this diagram · 4 diagrams in section
