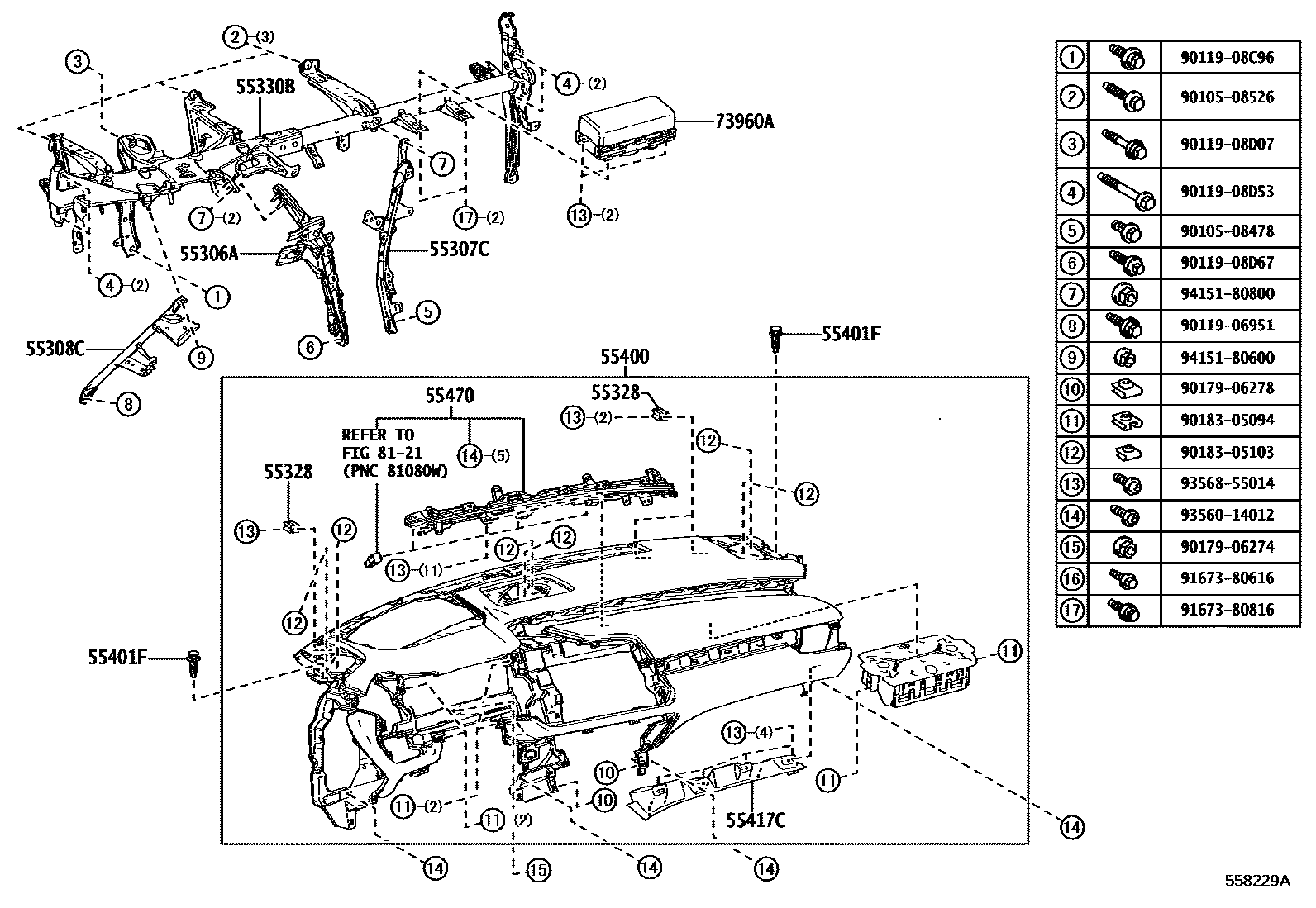

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM0#,1#,2#,4#
PREMIUM+,BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#
PREMIUM+,BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
55401FCLIP(FOR SAFETY PAD)
sub52161-0K040
55417CBRACKET, INSTRUMENT PAD, NO.3
55470GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL
PREMIUM+
PREMIUM+
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8121
9010508478
main90105-08478
9010508526
main90105-08526
9011906951
main90119-06951
9011908C96
main90119-08C96
9011908D07
main90119-08D07
9011908D53
main90119-08D53
9011908D67
main90119-08D67
9017906274
main90179-06274
9017906278
main90179-06278
9018305094
main90183-05094
9018305103
main90183-05103
9167380616
main91673-80616
9167380816
main91673-80816
9356014012
main93560-14012
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
28 parts on this diagram · 5 diagrams in section
