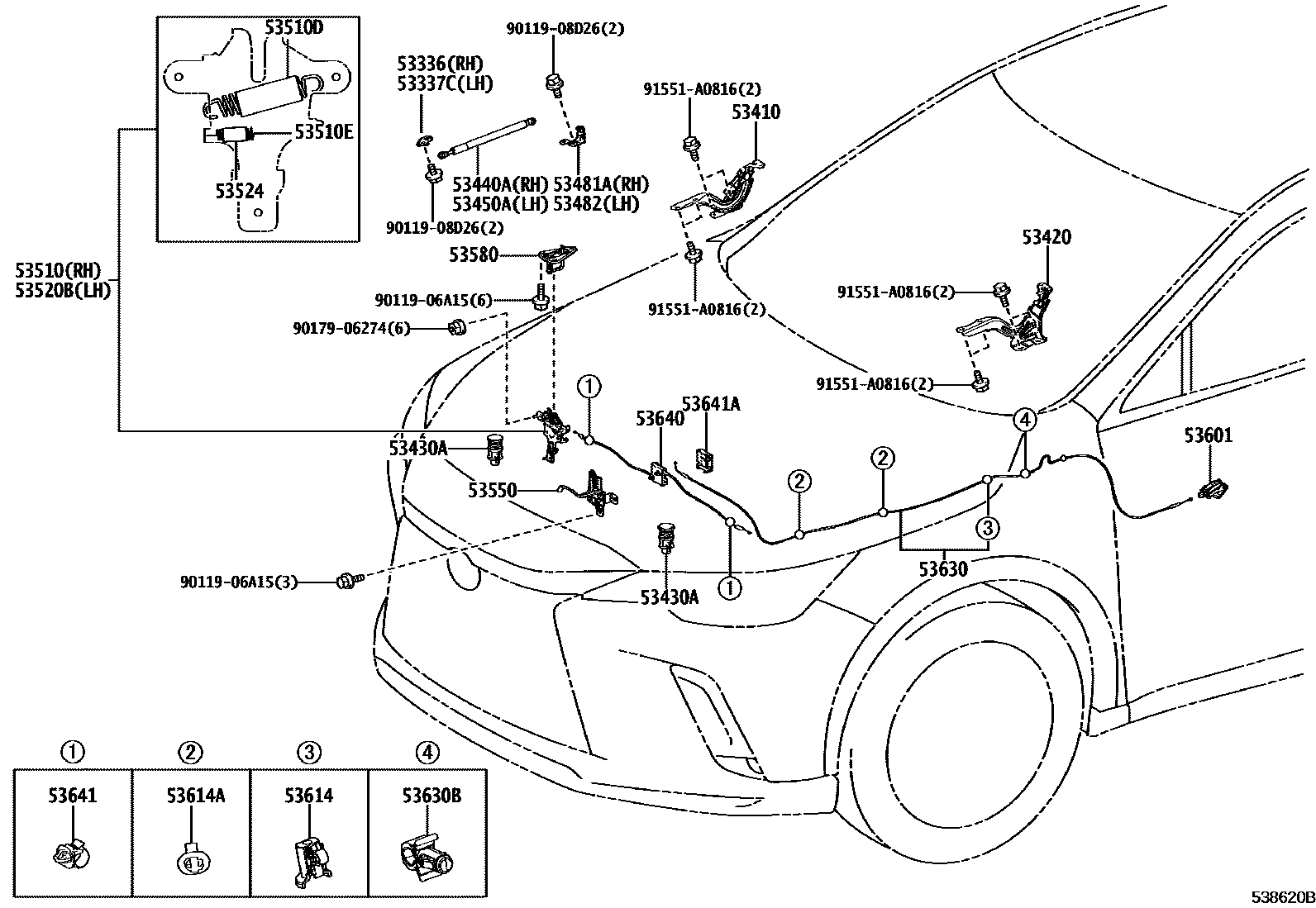

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53430ASPRING, TENSION(FOR HOOD SUPPORT)
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53481ABRACKET, HOOD SUPPORT, RH
53482BRACKET, HOOD SUPPORT, LH
53510LOCK ASSY, HOOD
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.0,CW=14
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53520BLOCK ASSY, HOOD, LH
53524DAMPER, HOOD LOCK SPRING
L=20
L=18
53550HOOK ASSY, HOOD AUXILIARY CATCH
53580STRIKER ASSY, HOOD LOCK
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
53614CLAMP, HOOD LOCK CONTROL CABLE
53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53640JUNCTION ASSY, HOOD LOCK CONTROL
53641CLAMP, HOOD LOCK CONTROL WIRE
53641ACOVER, HOOD LOCK CONTROL
9011906A15
main90119-06A15
9011908D26
main90119-08D26
9017906274
main90179-06274
91551A0816
main91551-A0816
28 parts on this diagram · 1 diagram in section
