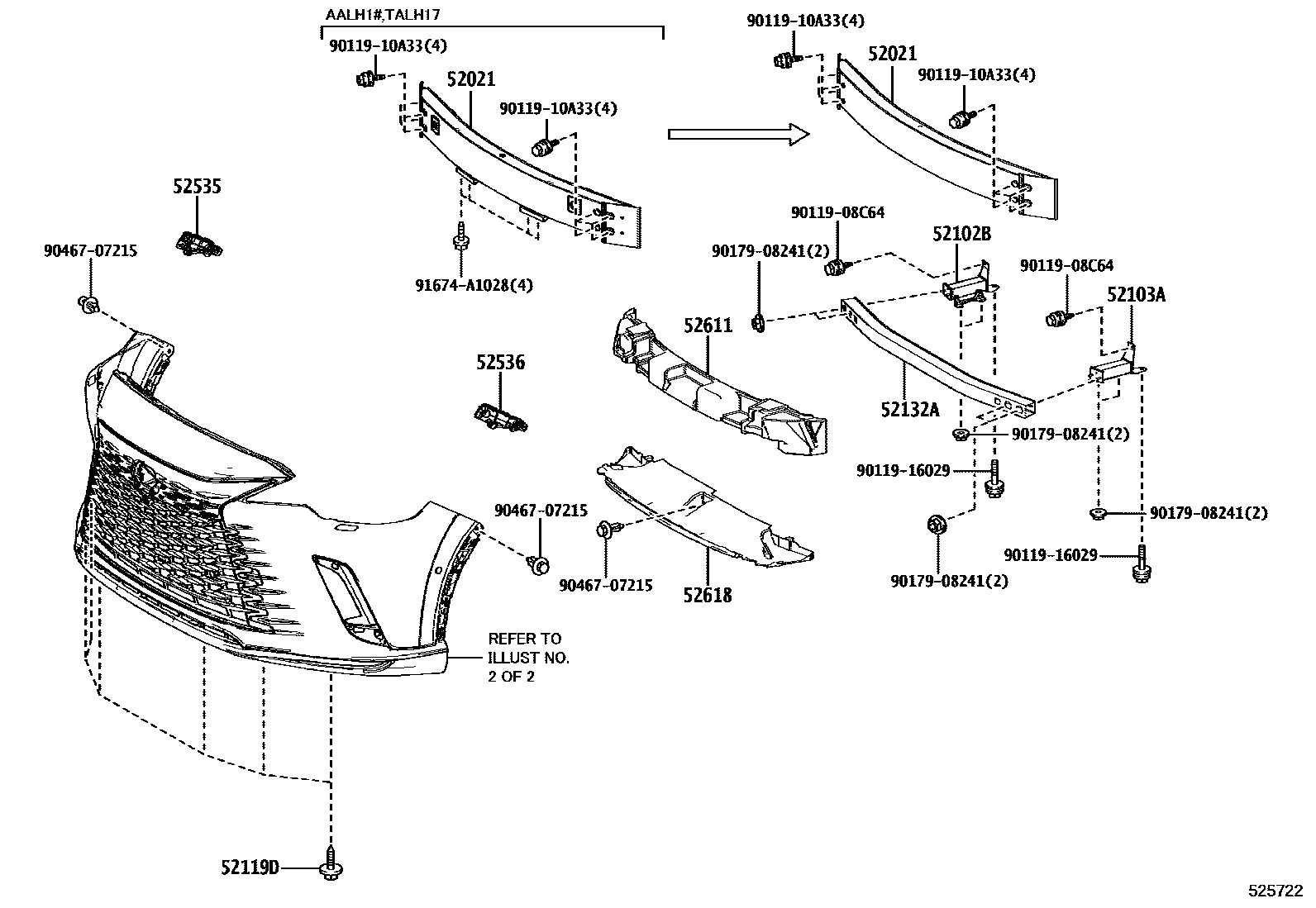

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT & BLACK SPORT PACKAGE0004 1F SPORT 0005 1BLACK SPORT PACKAGE

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-48130iAALH16202211-202308

main52021-48140iAALH16202211

main52021-48150iTALH17202211

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-48040iAALH1#,TALA10,TALH17202211

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-48010iAALH1#,TALA10,TALH17202211

52119DSCREW, NO.1

main90159-60477iAALH1#,TALA10,TALH17202211

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-48030iAALH1#,TALA10,TALH17202211

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48060iAALH1#,TALA10,TALH17202211

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-48050iAALH1#,TALA10,TALH17202211

52611ABSORBER, FRONT BUMPER ENERGY

main52611-48250iAALH1#,TALA10,TALH17202211

52618ABSORBER, FRONT BUMPER, LOWER

main52618-48060iAALH1#,TALA10,TALH17202211

9011908C64

main90119-08C64

9011910A33

main90119-10A33

9011916029

main90119-16029

9017908241

main90179-08241

9046707215

main90467-07215

91674A1028

main91674-A1028

15 parts on this diagram · 5 diagrams in section
