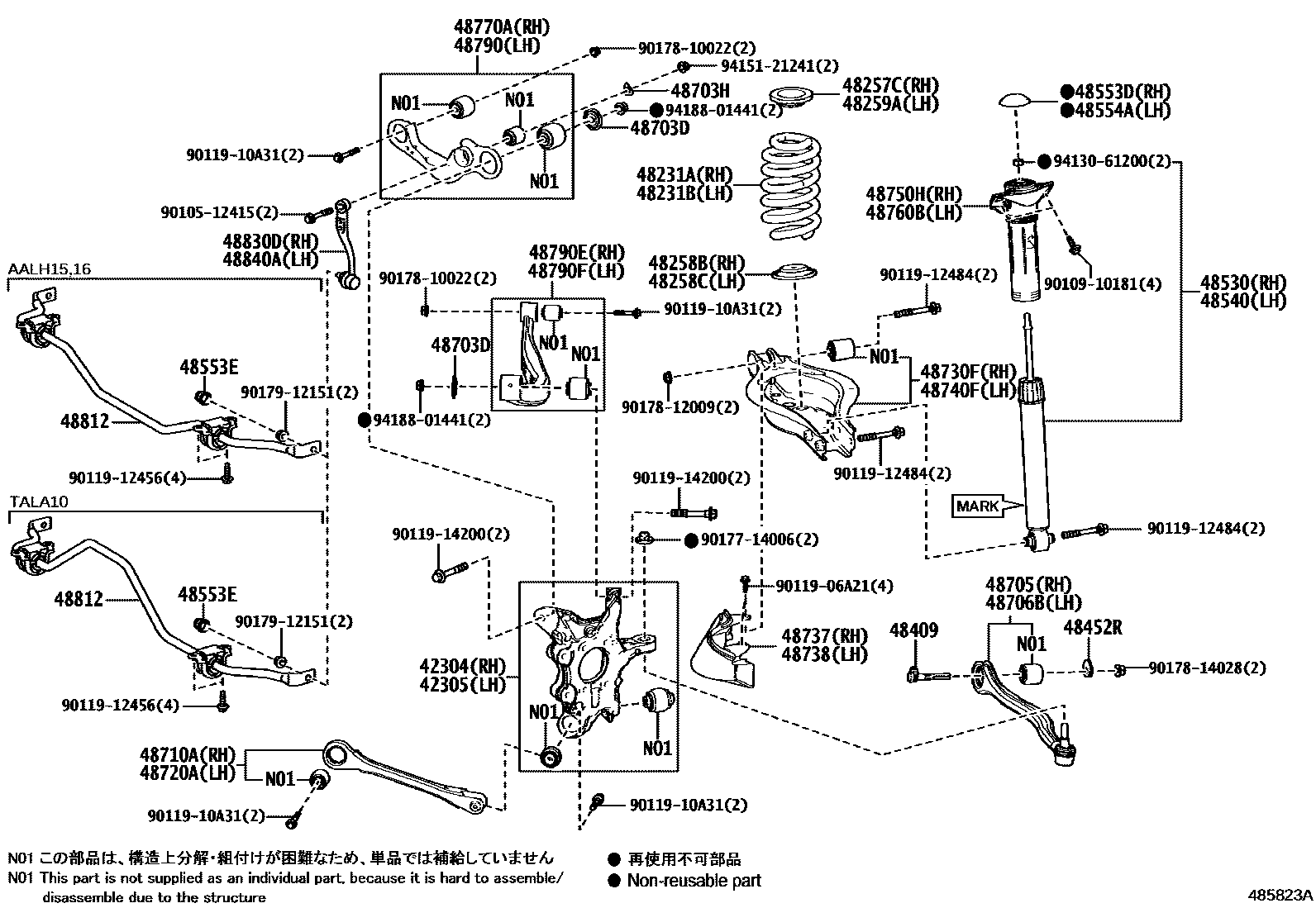

REAR SPRING & SHOCK ABSORBER

0001 1WITHOUT(AVS) 0002 1WITH(AVS)

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-48080iAALH1#,TALA10,TALH17202211

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-48080iAALH1#,TALA10,TALH17202211

48231ASPRING, COIL, REAR RH

main48231-48A00iTALA10202211-202409

main48231-48A60iAALH15202211-202409

main48231-48A70iAALH16202308-202409

main48231-48A80iAALH16202211-202409

main48231-48B00iTALA10202410

main48231-48B80iAALH15202410

main48231-48B90iAALH16202410

main48231-48C00iAALH16202410

KOREA SPEC

48231BSPRING, COIL, REAR LH

main48231-48A00iTALA10202211-202409

main48231-48A60iAALH15202211-202409

main48231-48A70iAALH16202308-202409

main48231-48A80iAALH16202211-202409

main48231-48B00iTALA10202410

main48231-48B80iAALH15202410

main48231-48B90iAALH16202410

main48231-48C00iTALH17202410

KOREA SPEC

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-48020iAALH1#,TALA10,TALH17202211

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-48040iAALH1#,TALA10,TALH17202211

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-48040iAALH1#,TALA10,TALH17202211

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-48020iAALH1#,TALA10,TALH17202211

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011iAALH1#,TALA10202211

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-48020iAALH1#,TALA10202211

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80B70iAALH16202308-202410

MARK 48530-48530

main48530-8Z212iTALA10202211-202410

MARK 48530-48470

main48530-8Z217iAALH15202211-202410

MARK 48530-48540

main48530-8Z218iAALH16202211-202308

MARK 48530-48550

main48530-8Z220iAALH15202211

MARK 48530-48530,LUXURY

main48530-8Z220iTALH17202211

MARK 48530-48530

main48530-8Z303iTALA10202410

MARK 48530-48750

main48530-8Z308iAALH15202410

MARK 48530-48800

main48530-8Z310iAALH16202410

MARK 48530-48820

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80B70iAALH16202308-202410

MARK 48530-48530

main48530-8Z212iTALA10202211-202410

MARK 48530-48470

main48530-8Z217iAALH15202211-202410

MARK 48530-48540

main48530-8Z218iAALH16202211-202308

MARK 48530-48550

main48530-8Z303iTALA10202410

MARK 48530-48750

main48530-8Z308iAALH15202410

MARK 48530-48800

main48530-8Z310iAALH16202410

MARK 48530-48820

main48540-80595iAALH15202211

MARK 48540-48530,LUXURY

main48540-80595iTALH17202211

MARK 48540-48530

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-47010iAALH1#,TALA10,TALH17202211

48553ECAP

main48553-52030iAALH1#,TALA10,TALH17202211

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-47010iAALH1#,TALA10,TALH17202211

48703DWASHER(FOR REAR SUSPENSION ARM)

main48715-48010iAALH1#,TALA10,TALH17202211

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main48715-48020iAALH1#,TALA10,TALH17202211

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-48010iAALH1#,TALA10202211

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-48010iAALH1#,TALA10202211

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-48100iAALH1#,TALA10,TALH17202211

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48720-48020iAALH1#,TALA10,TALH17202211

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-48190iAALH1#,TALA10,TALH17202211

48737COVER, REAR SUSPENSION ARM, RH

main48737-48030iAALH1#,TALA10,TALH17202211

48738COVER, REAR SUSPENSION ARM, LH

main48738-48030iAALH1#,TALA10,TALH17202211

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-48050iAALH1#,TALA10,TALH17202211

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-48080iAALH1#,TALA10,TALH17202211

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-48080iAALH1#,TALA10,TALH17202211

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-48030iAALH1#,TALA10,TALH17202211

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-48030iAALH1#,TALA10,TALH17202211

48790EARM ASSY, UPPER CONTROL, REAR RH NO.2

main48790-48010iAALH1#,TALA10,TALH17202211

48790FARM ASSY, UPPER CONTROL, REAR LH NO.2

main48790-48020iAALH1#,TALA10,TALH17202211

48812BAR, STABILIZER, REAR

main48805-48160iTALA10202211

main48805-48180iAALH1#,TALH17202211

48830DLINK ASSY, REAR STABILIZER, RH

main48830-48060iAALH1#,TALA10,TALH17202211

48840ALINK ASSY, REAR STABILIZER, LH

main48840-48010iAALH1#,TALA10,TALH17202211

9010512415

main90105-12415

9010910181

main90109-10181

9011906A21

main90119-06A21

9011910A31

main90119-10A31

9011912456

main90119-12456

9011912484

main90119-12484

9011914200

main90119-14200

9017714006

main90177-14006

9017810022

main90178-10022

9017812009

main90178-12009

9017814028

main90178-14028

9017912151

main90179-12151

9413061200

main94130-61200

9415121241

main94151-21241

9418801441

main94188-01441

49 parts on this diagram · 2 diagrams in section
