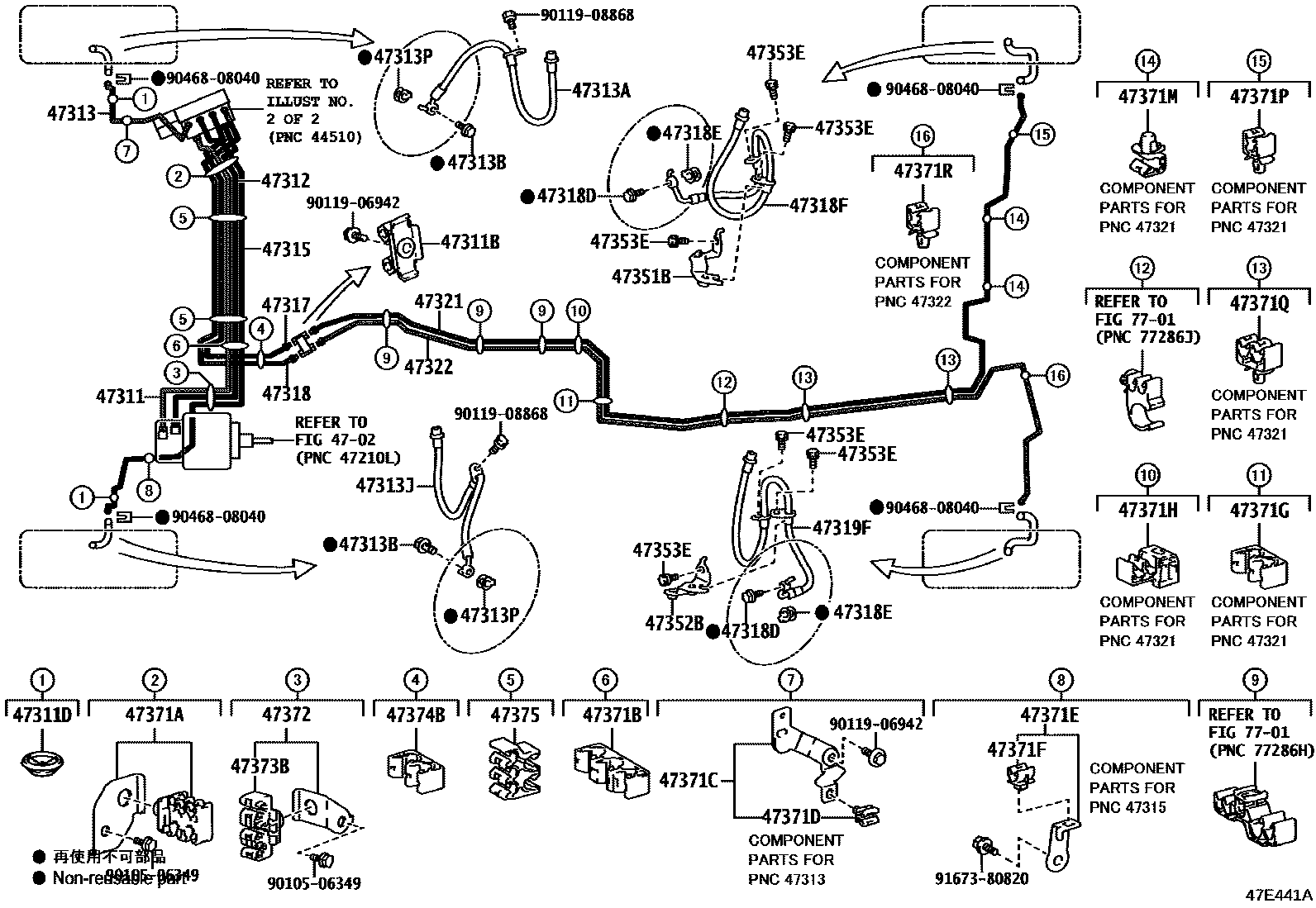

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-48120iTALA10202211

main47311-48140iAALH15,TALH17202211

main47311-48160iAALH16202211

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iTALA10202211

main90412-10314iAALH1#,TALH17202211

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037iAALH1#,TALA10,TALH17202211

47312TUBE, FRONT BRAKE, NO.2

main47312-48070iTALA10202211

main47312-48090iAALH15,TALH17202211

main47312-48110iAALH16202211

47313TUBE, FRONT BRAKE, NO.3

main47313-48080iTALA10202211

main47313-48100iTALH17202211

main47313-48120iAALH15202211

main47313-48140iAALH16202211

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J86iAALH1#,TALA10202211

main90947-02K42iTALH17202211

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iAALH1#,TALA10,TALH17202211

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J90iAALH1#,TALA10202211

main90947-02K44iTALH17202211

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iAALH1#,TALA10,TALH17202211

47315TUBE, FRONT BRAKE, NO.5

main47315-48270iTALA10202211

main47315-48290iAALH15,TALH17202211

main47315-48310iAALH16202211

47317TUBE, FRONT BRAKE, NO.7

main47317-48410iTALA10202211

main47317-48430iAALH15,TALH17202211

main47317-48450iAALH16202211

47318TUBE, FRONT BRAKE, NO.8

main47318-48260iTALA10202211

main47318-48280iAALH15,TALH17202211

main47318-48300iAALH16202211

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iAALH1#,TALA10,TALH17202211

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iAALH1#,TALA10,TALH17202211

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J91iAALH1#,TALA10,TALH17202211

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J92iAALH1#,TALA10,TALH17202211

47321TUBE, REAR BRAKE, NO.1

main47321-48190iAALH15,TALA10,TALH17202211

main47321-48200iAALH16202211

47322TUBE, REAR BRAKE, NO.2

main47322-48200iAALH15,TALA10,TALH17202211

main47322-48210iAALH16202211

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-48030iAALH1#,TALA10,TALH17202211

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-48030iAALH1#,TALA10,TALH17202211

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08868iAALH1#,TALA10,TALH17202211

47371ACLAMP, BRAKE TUBE, NO.1

main47371-48190iTALA10202211

main47371-48230iAALH1#,TALH17202211

47371BCLAMP, BRAKE TUBE, NO.6

main47371-48250iTALA10202211

main90949-01E43iAALH1#,TALH17202211

47371CCLAMP, BRAKE TUBE, NO.7

main47371-48210iAALH15202211

main47371-48250iTALH17202211

main90949-01D56iAALH16,TALA10202211

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D56iAALH15,TALA10,TALH17202211

47371ECLAMP, BRAKE TUBE, NO.9

main47371-42140iAALH1#,TALH17202211

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D56iAALH1#,TALH17202211

47371GCLAMP, BRAKE TUBE, NO.11

main90464-00903iAALH15,TALA10,TALH17202211

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D11iAALH15,TALA10,TALH17202211

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D17iAALH15,TALA10,TALH17202211

47371PCLAMP, BRAKE TUBE, NO.14

main90949-01E01iAALH15,TALA10,TALH17202211

47371QCLAMP, BRAKE TUBE, NO.15

main90949-01E02iAALH15,TALA10,TALH17202211

47371RCLAMP, BRAKE TUBE, NO.16

main90949-01E01iAALH1#,TALA10,TALH17202211

47372CLAMP, BRAKE TUBE, NO.2

main47371-48230iTALA10202211

main47371-48240iAALH1#,TALH17202211

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E79iTALA10202211

main90949-01E80iAALH1#,TALH17202211

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00903iAALH1#,TALA10,TALH17202211

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E40iAALH1#,TALA10,TALH17202211

7701

9010506349

main90105-06349

9011906942

main90119-06942

9011908868

main90119-08868

9046808040

main90468-08040

9167380820

main91673-80820

44 parts on this diagram · 5 diagrams in section
