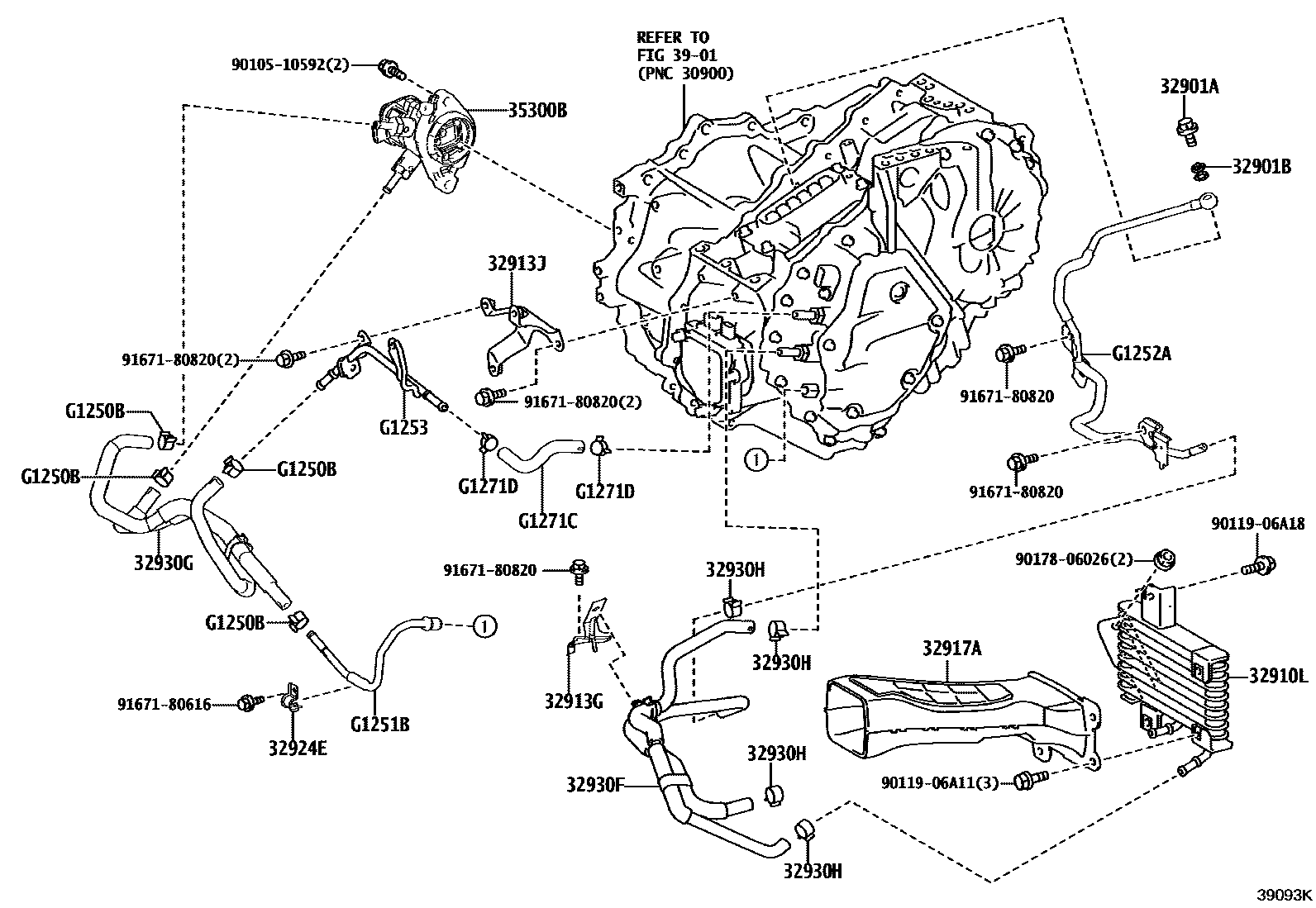

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1WITHOUT MOTOR COOLING COOLER 0002 1WITH MOTOR COOLING COOLER 0003 1 0004 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAALH1#202211

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAALH1#202211

32910LCOOLER ASSY, OIL

main32910-48230iAALH15202211-202410

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-42050iAALH15202211-202410

32913JBRACKET, TRANSMISSION OIL COOLER, NO.2

main32913-78030iAALH1#202211

32917ADUCT, TRANSMISSION OIL COOLER AIR

main32917-48090iAALH15202211-202410

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iAALH15202211-202410

32930FHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-48100iAALH15202211-202410

main32930-48110iTALH17202211

32930GHOSE ASSY, TRANSMISSION OIL COOLER, NO.2

main32930-42070iAALH15202211-202410

32930HCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAALH15202211-202410

main96138-42501iTALH17202211

35300BPUMP ASSY, OIL W/MOTOR

main35300-48070iAALH15202211-202410

3901

G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)

main90466-16004iAALH15202211-202410

(J)

main90466-16004iAALH16202211

G1251BPIPE, MOTOR COOLING, NO.1

mainG125142010iAALH15202211-202410

G1252APIPE, MOTOR COOLING, NO.2

mainG125242010iAALH15202211-202410

mainG125278010iAALH15202410

G1253PIPE, MOTOR COOLING, NO.3

mainG125478010iAALH15202211-202410

G1271CHOSE, MOTOR COOLING, NO.1

mainG127142010iAALH15202211-202410

mainG128178010iAALH15202410

G1271DCLIP, NO.1(FOR MOTOR COOLING HOSE)

main90466-16004iAALH1#202211

9010510592

main90105-10592

9011906A11

main90119-06A11

9011906A18

main90119-06A18

9017806026

main90178-06026

9167180616

main91671-80616

9167180820

main91671-80820

24 parts on this diagram · 4 diagrams in section
