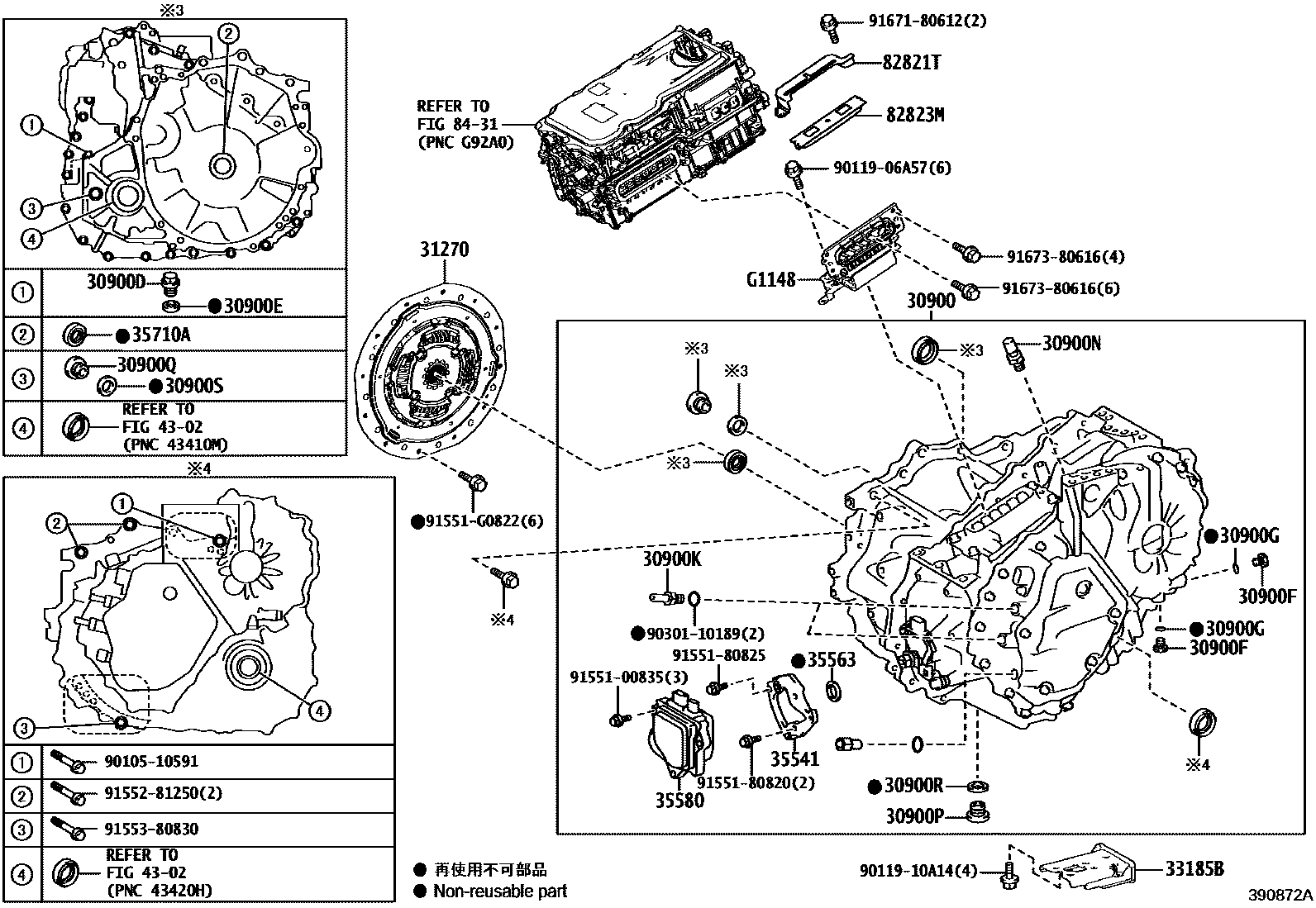

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1HYBRID VEHICLE TRANSAXLE ASSY0002 1W/MOTOR & INVERTER TRANSAXLE 0003 1W/MOTOR & INVERTER TRANSAXLE 0004 1W/MOTOR & INVERTER TRANSAXLE 0005 1RR TRACTION W/TRANSAXLE MOTOR0006 1RR W/MOTOR&INVERTER TRANSAXLE

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-48170iAALH1#202211-202407

sub30900-48171

main30900-48171iAALH15202407-202410

main30900-48200iAALH15202410

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAALH1#202211

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAALH1#202211

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-13001iAALH1#202211

30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)

main90301-10189iAALH1#202211

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAALH15202211-202410

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03223iAALH1#202211

30900PPLUG, DRAIN(HEV)

main90341-18016iAALH1#202211

30900QPLUG, FILLER(HEV)

main35150-44010iTALH17202211

main90341-18016iAALH1#202211

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAALH1#202211

30900SGASKET, FILLER PLUG(HEV)

main90301-09173iTALH17202211

main90430-18008iAALH1#202211

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-48040iAALH1#202211

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-42030iAALH1#202211

35541BRACKET, SHIFT CONTROL ACTUATOR

main35541-30030iTALH17202211

main35541-78010iAALH1#202211

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-52010iTALH17202211-202212

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-48011iTALH17202211

main35580-52011iAALH1#202211

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-29003iAALH1#202211

4302

82821TCOVER, CONNECTOR

main82821-47240iAALH1#202211

82823MCAP, TERMINAL

main82823-47040iAALH1#202211

8431

G1148CABLE, MOTOR

mainG114848110iAALH1#202211

9010510591

main90105-10591

9011906A57

main90119-06A57

9011910A14

main90119-10A14

9030110189

main90301-10189

9155100835

main91551-00835

9155180820

main91551-80820

9155180825

main91551-80825

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

9167180612

main91671-80612

9167380616

main91673-80616

34 parts on this diagram · 6 diagrams in section
