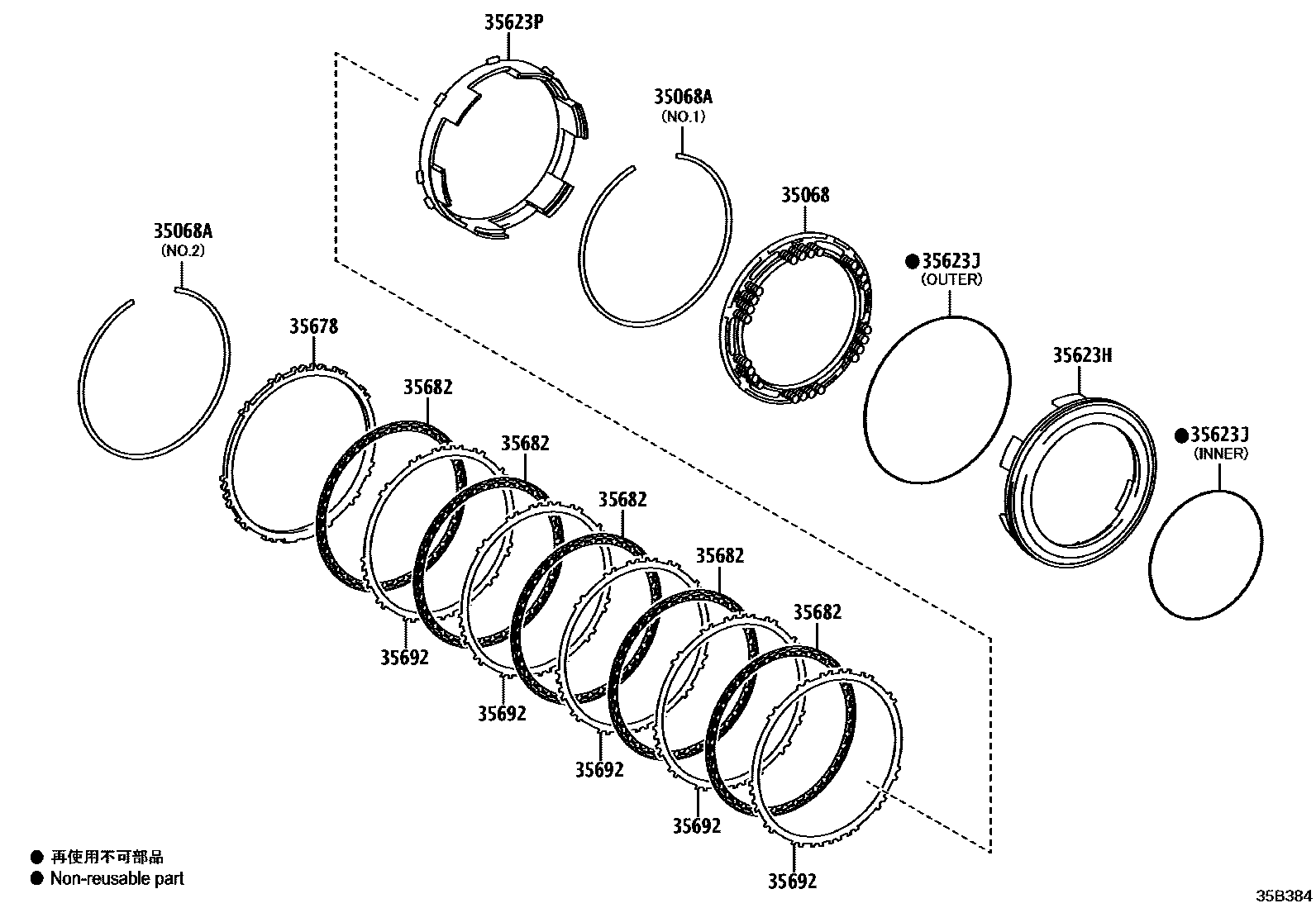

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-48020iTALA10202211

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99174iTALA10202211

NO.2

main90520-99175iTALA10202211

NO.1

35623HPISTON, 1ST & REVERSE BRAKE

main35623-48050iTALA10202211

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99209iTALA10202211

INNER

main90301-99210iTALA10202211

OUTER

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35624-48030iTALA10202211

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-78050iTALA10202211

T=5.0,MARK 0

main35678-78060iTALA10202211

T=5.1,MARK 1

main35678-78070iTALA10202211

T=5.2,MARK 2

main35678-78080iTALA10202211

T=5.3,MARK 3

main35678-78090iTALA10202211

T=5.4,MARK 4

main35678-78100iTALA10202211

T=5.5,MARK 5

main35678-78110iTALA10202211

T=5.6,MARK 6

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-78010×5iTALA10202211

35692PLATE, BRAKE(FOR 2ND BRAKE)

main35692-48020×5iTALA10202211

8 parts on this diagram · 1 diagram in section
