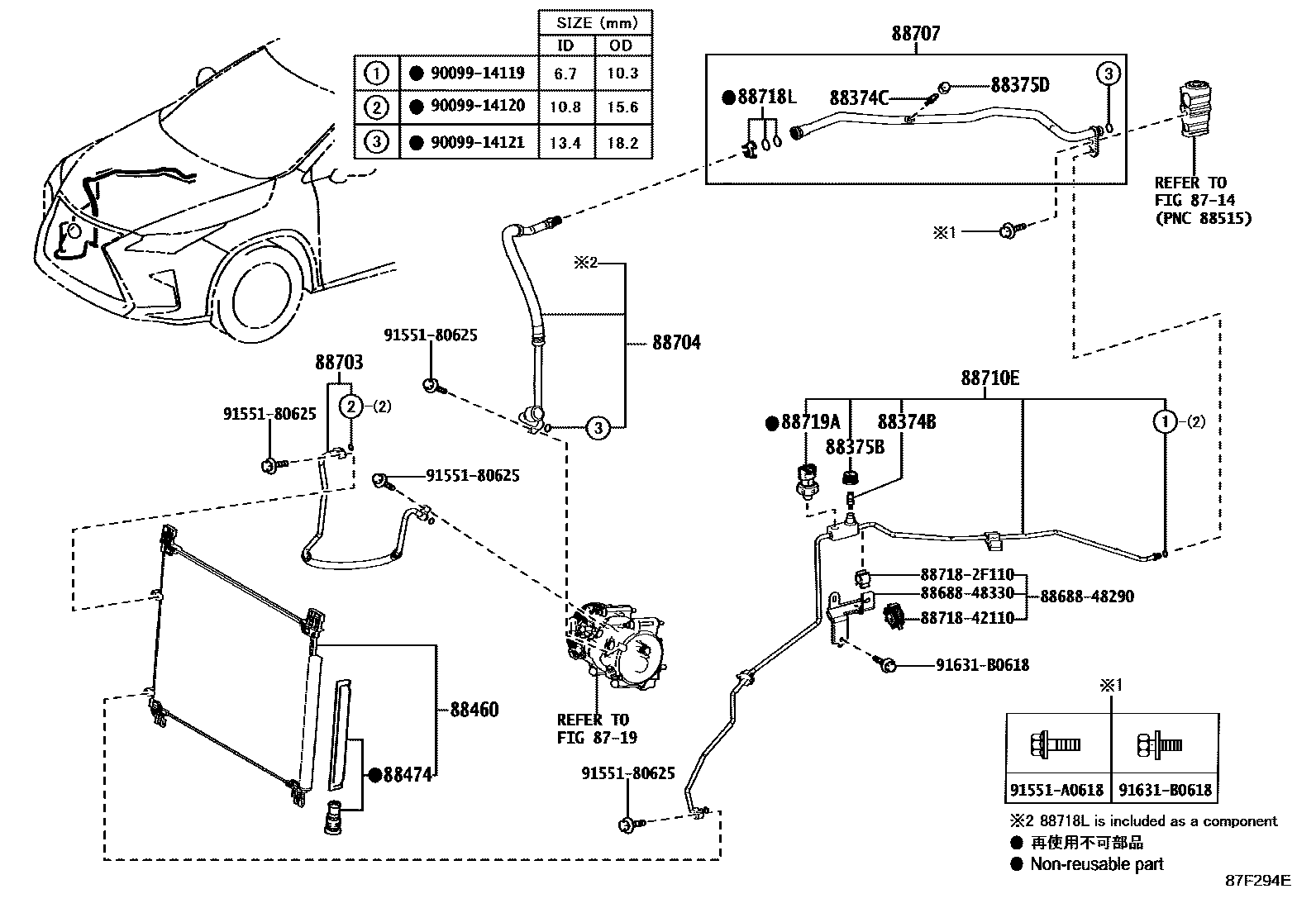

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGGL25,GYL25201509-201908

88374CVALVE, SERVICE, NO.2

main88374-30010iGGL25,GYL25201509-201908

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGGL25,GYL25201509-201908

main88375-30320iGGL25..B201908

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGGL25,GYL25201509-201908

main88375-30310iGGL25..B201908

88460CONDENSER ASSY, COOLER

main88460-48210iGGL25201509-201908

main88460-48220iGYL25201510-201908

main88460-48300iGGL25..B201908

88474DRYER, COOLER

main88474-12010iGGL25201509-201908

main88474-47020iGYL25201510-201908

88703HOSE SUB-ASSY, DISCHARGE

main88703-48310iGGL25201509-201908

main88703-48320iGYL25201510-201908

88704HOSE SUB-ASSY, SUCTION

main88704-48300iGGL25201509-201908

main88704-48310iGYL25201510-201908

88707PIPE SUB-ASSY, SUCTION

main88707-48211iGGL25201509-201611

main88707-48221iGYL25201510-201908

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-48560iGGL25201509-201611

main88710-48570iGGL25..B201908

main88710-48580iGGL25201611-201908

main88710-48590iGYL25201510-201908

88718LCLAMP, PIPING

main88718-52280iGGL25,GYL25201509-201908

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGGL25,GYL25201509-201908

8868848290BRACKET, COOLER DIAPHRAGM

main88688-48290

8868848330BRACKET, COOLER DIAPHRAGM

main88688-48330

887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2F110

8871842110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-42110

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

91631B0618

main91631-B0618

24 parts on this diagram · 5 diagrams in section
