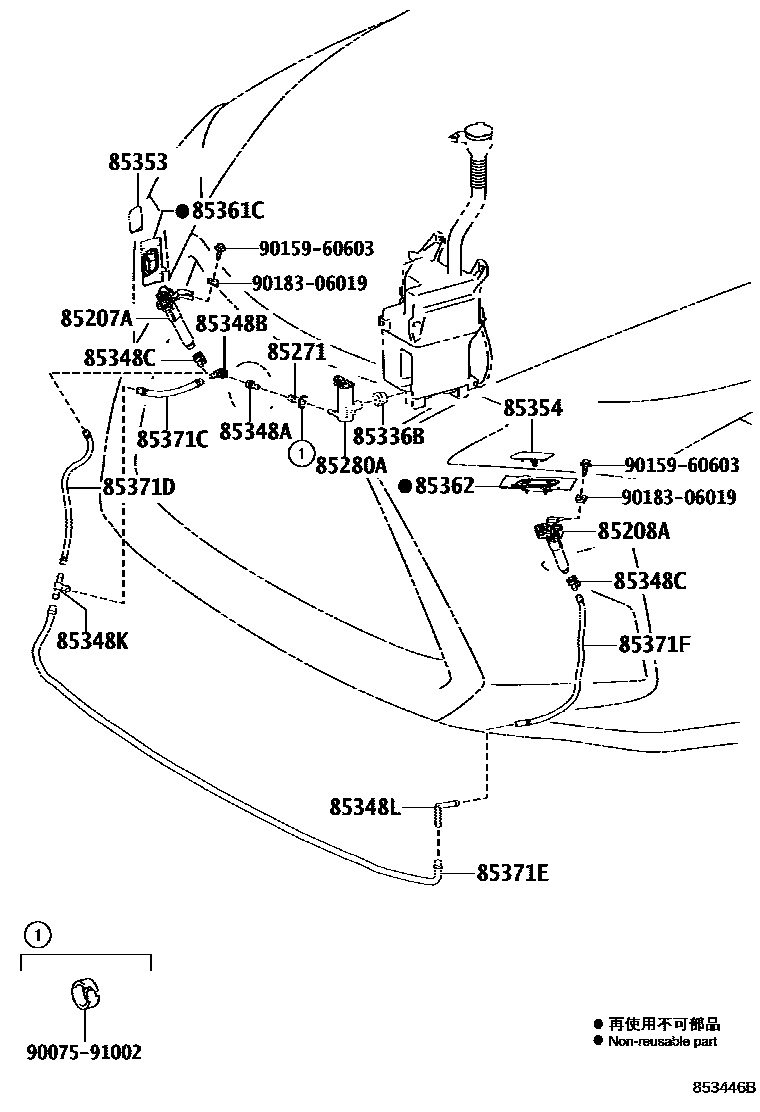

HEADLAMP CLEANER

0001 1 0002 1

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15053

main90075-15074

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

85336BPACKING, HEADLAMP CLEANER WASHER

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

85353COVER, HEADLAMP WASHER, RH

main85353-48030

main85353-48050

85354COVER, HEADLAMP WASHER, LH

main85354-48030

main85354-48050

85361CBRACKET, WASHER

85362BRACKET, WASHER, NO.2

main85362-48010

main85362-48020

85371CHOSE, HEADLAMP CLEANER, NO.1

85371DHOSE, HEADLAMP CLEANER, NO.2

85371EHOSE, HEADLAMP CLEANER, NO.3

85371FHOSE, HEADLAMP CLEANER, NO.4

9007591002

main90075-91002

9015960603

main90159-60603

9018306019

main90183-06019

21 parts on this diagram · 2 diagrams in section
