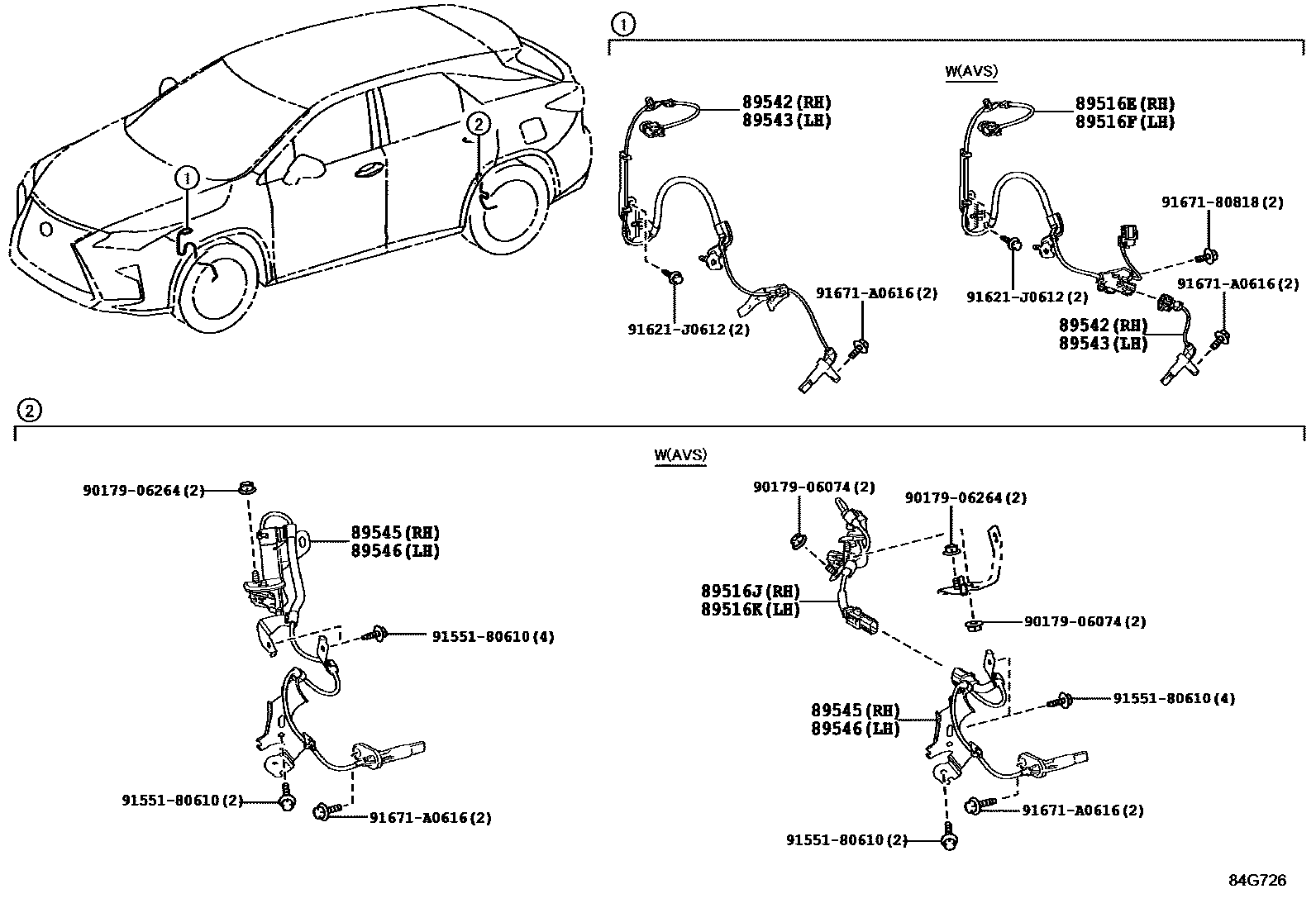

ABS & VSC

0001 1SKID CONTROL SENSER 0002 1COMPUTER & BUZZER & SENSER

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

89516JWIRE, SKID CONTROL SENSOR, REAR RH NO.2

89516KWIRE, SKID CONTROL SENSOR, REAR LH NO.2

89542SENSOR, SPEED, FRONT RH

main89542-48060iGGL25,GYL25201509-201908

89543SENSOR, SPEED, FRONT LH

main89543-48060iGGL25,GYL25201509-201908

89545SENSOR, SPEED, REAR RH

main89545-48090iGGL25,GYL25201509-201908

89546SENSOR, SPEED, REAR LH

main89546-48090iGGL25,GYL25201509-201908

9017906074

main90179-06074

9017906264

main90179-06264

9155180610

main91551-80610

91621J0612

main91621-J0612

9167180818

main91671-80818

91671A0616

main91671-A0616

14 parts on this diagram · 2 diagrams in section
