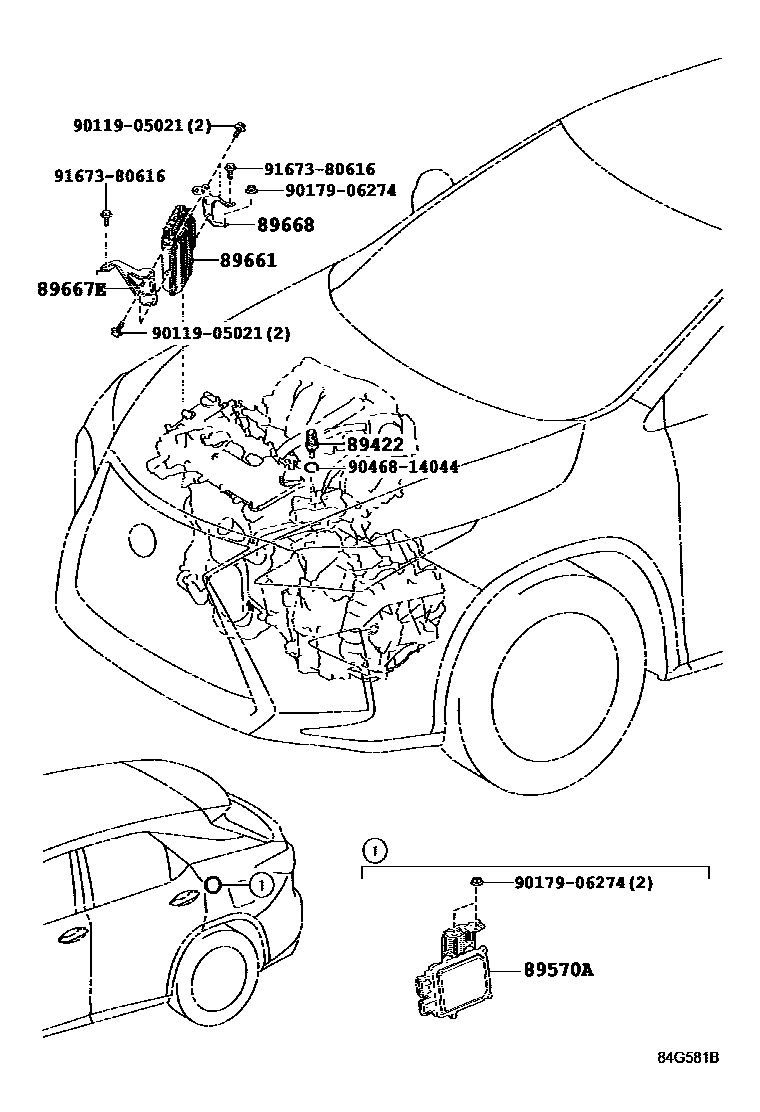

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-47010iGGL25,GYL25201509-201908

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-48020iGGL25,GYL25201509-201908

89661COMPUTER, ENGINE CONTROL

main89661-48K50iGGL25..B202007-202011

DENSO

sub89661-48K51

main89661-48K51iGGL25..B202012-202107

DENSO

main89661-48K70iGYL25201712-201808

DENSO

main89661-48N70iGGL25..B201509-201512

sub89661-48N71

main89661-48N71iGGL25..B201601-201608

main89661-48N72iGGL25..B201609-201712

sub89661-48N73

main89661-48R70iGYL25201510-201608

DENSO

main89661-48S40iGGL25..A201509-201712

main89661-48T50iGYL25201608-201712

DENSO

main89661-48V20iGGL25..B201712-201807

DENSO

sub89661-48X00

main89661-48V80iGGL25..A201712-201809

DENSO

sub89661-48X30

main89661-48X00iGGL25..B201808-201812

DENSO

sub89661-48X01

main89661-48X01iGGL25..B201901-201904

DENSO

sub89661-48X02

main89661-48X02iGGL25..B201905-201908

DENSO

sub89661-48X03

main89661-48X30iGGL25..A201810-201908

DENSO

sub89661-48X31

main89661-48X40iGGL25..B201908-202007

DENSO

sub89661-48X41

main89661-48X90iGGL25..A201908-202007

DENSO

main89661-48Y90iGYL25201908-202007

DENSO

main89661-4D060iGYL25201808-201908

DENSO

main89661-4D360iGGL25..A202007

DENSO

main89661-4D370iGYL25202007

DENSO

main89661-4D720iGGL25..B202107

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-48170iGGL25201509-201908

main89667-48180iGYL25201510-201908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48190iGGL25201509-201908

main89668-48200iGYL25201510-201908

9011905021

main90119-05021

9017906274

main90179-06274

9046814044

main90468-14044

9167380616

main91673-80616

9 parts on this diagram · 2 diagrams in section
