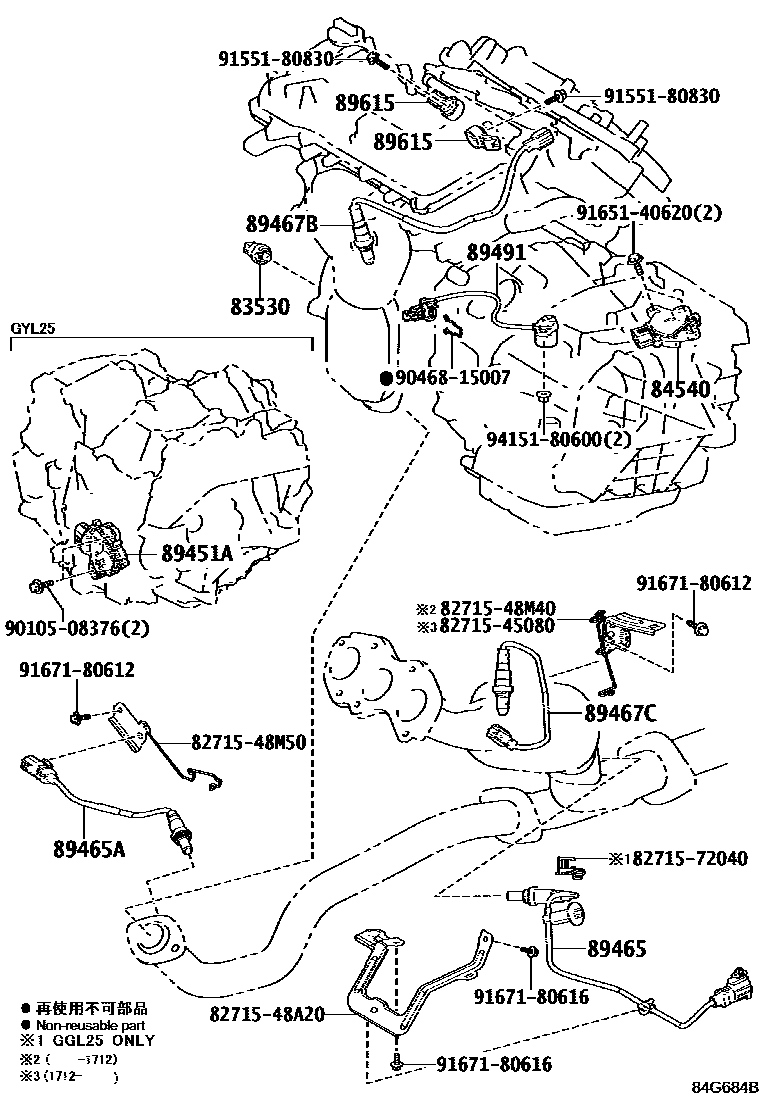

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM(1/2) 0003 1ENGINE ROOM(2/2) 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL(1/2) 0007 1INSTRUMENT PANEL(2/2) 0008 1INSTRUMENT PANEL(2/2) 0009 1STEERING 0010 1SEAT 0011 1DOOR, ROOF & FLOOR 0012 1LUGGAGE & BACK DOOR 0013 1LUGGAGE & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGGL25,GYL25201509-201908

DENSO,*369

main83530-60020iGGL25,GYL25201509-201908

YAZAKI,*369

84540SWITCH ASSY, NEUTRAL START

main84540-48030iGGL25201509-201908

89451ASENSOR, SHIFT LEVER POSITION

main89451-52040iGYL25201510-201908

89465SENSOR, OXYGEN

main89465-48400iGGL25201509-201908

main89465-48410iGYL25201510-201908

89465ASENSOR, OXYGEN NO.2

main89465-48390iGGL25,GYL25201509-201908

89467BSENSOR, AIR FUEL RATIO

main89467-48310iGGL25,GYL25201509-201908

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-48320iGGL25,GYL25201509-201908

89491SENSOR, ENGINE OIL LEVEL

main89491-48020iGGL25,GYL25201509-201808

sub89491-48021

main89491-48021iGGL25,GYL25201809-202004

sub89491-48040

main89491-48040iGGL25,GYL25202005-202204

sub89491-48041

main89491-48041iGGL25,GYL25202205

89615SENSOR, KNOCK CONTROL

main89615-20090iGGL25,GYL25201509-201908

8271545080BRACKET,WIRING HARNESS CLAMP

main82715-45080

8271548A20BRACKET,WIRING HARNESS CLAMP

main82715-48A20

8271548M40BRACKET,WIRING HARNESS CLAMP

main82715-48M40

8271548M50BRACKET,WIRING HARNESS CLAMP

main82715-48M50

8271572040BRACKET,WIRING HARNESS CLAMP

main82715-72040

9010508376

main90105-08376

9046815007

main90468-15007

9155180830

main91551-80830

9165140620

main91651-40620

9167180612

main91671-80612

9167180616

main91671-80616

9415180600

main94151-80600

21 parts on this diagram · 13 diagrams in section
