WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1DOOR 0008 1FLOOR & ROOF 0009 1FLOOR & ROOF 0010 1HIGH VOLTAGE CABLE 0011 1SEAT 0012 1CLAMP & BRACKET 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CONNECTOR 1/3 0016 1CONNECTOR 2/3 0017 1CONNECTOR 3/3

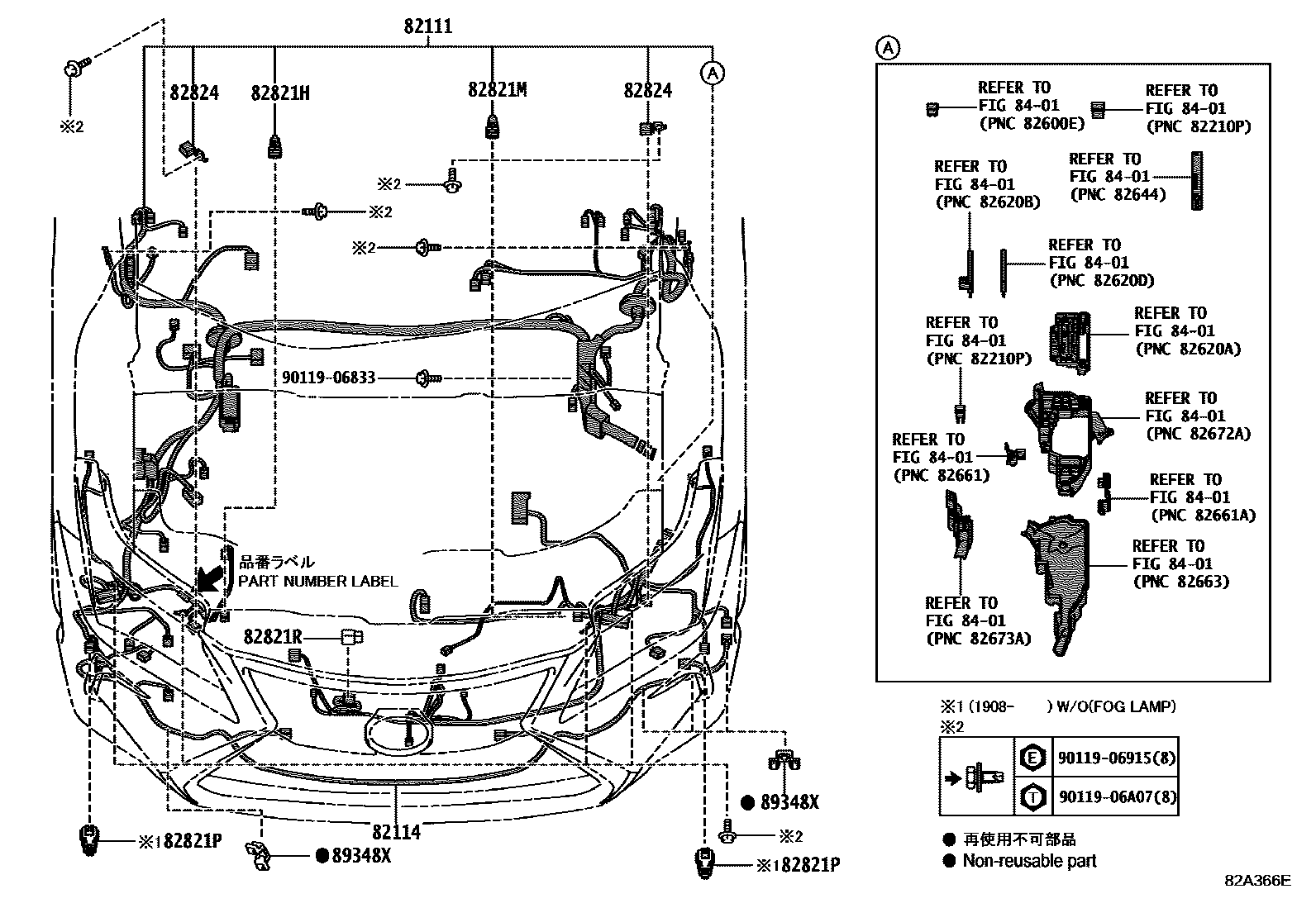

82111WIRE, ENGINE ROOM MAIN

main82111-4D080iGGL25..A201509-201608

main82111-4D081iGGL25..A201608-201712

main82111-4D082iGGL25..A201712-201908

main82111-4D160iGYL25201510-201608

main82111-4D161iGYL25201608-201712

main82111-4D162iGYL25201712-201908

main82111-4D330iGGL25..A201908

main82111-4D370iGGL25..B201908

main82111-4D430iGGL25..B201509-201608

main82111-4D431iGGL25..B201608-201712

main82111-4D432iGGL25..B201712-201908

main82111-4DB40iGYL25201908-202007

main82111-4DJ40iGYL25202007

82114WIRE, ENGINE ROOM, NO.4

main82114-48060iGGL25..B201509-201908

CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)

main82114-48100iGGL25,GYL25201908

82821HCOVER, CONNECTOR

main82821-42040iGGL25,GYL25201509-201908

82821MCOVER, CONNECTOR

main82821-30650iGGL25,GYL25201509-201908

82821PCOVER, CONNECTOR

main82821-48260iGGL25..B201908

82821RCOVER, CONNECTOR

main82821-48310iGGL25..B201509-201908

AIR CONDITIONER-AUTOMATIC INTAKE SYSTEM

main82821-48310iGGL25..B201908-202107

82824CONNECTOR, WIRING HARNESS

main82824-48020iGGL25,GYL25201509-201908

8401

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iGGL25,GYL25201908

9011906833

main90119-06833

9011906915

main90119-06915

9011906A07

main90119-06A07

12 parts on this diagram · 17 diagrams in section
