INTERIOR LAMP

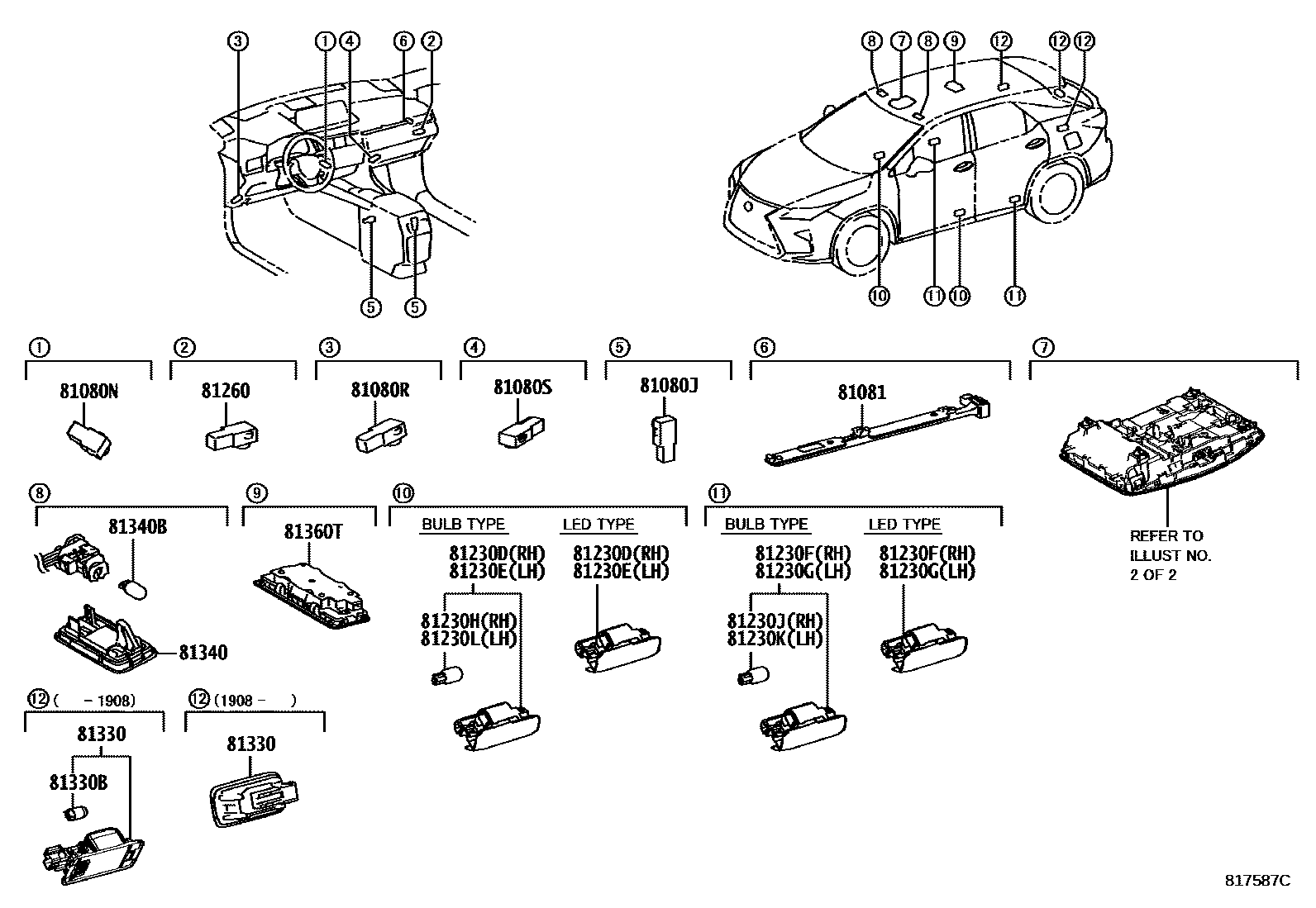

Parts diagram
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
main81080-22040i201509-201610
main81080-33290i201705-201908
main81080-58100i201611-201704
sub81080-33290
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
main81080-30010i201509-201908
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
main81080-22040i201509-201611
main81080-33290i201704-201908
main81080-58100i201612-201703
sub81080-33290
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
main81080-22040i201509-201611
main81080-33290i201704-201908
main81080-58100i201612-201703
sub81080-33290
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
main81081-48010i201509-202006
"VERSION L"*(L)
sub81081-48011
main81081-48010i201509-202006
"F-SPORT"*(F)
sub81081-48011
main81081-48011i202007
"VERSION L"*(L)
main81081-48011i202007-202107
"F-SPORT"*(F)
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
main81230-30200i201509-201908
BULB TYPE
main81230-50070i201509-202107
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i201509-202107
DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i202107
"VERSION L"*(L)&SUN SHADE-WITH,LED TYPE
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
main81230-30200i201509-201908
BULB TYPE
main81230-50070i201509-202107
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i201509-202107
DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i202107
"VERSION L"*(L)&SUN SHADE-WITH,LED TYPE
81230FLAMP ASSY, REAR DOOR COURTESY, RH
main81230-30200i201509-201908
BULB TYPE
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,LED TYPE
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,LED TYPE
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,LED TYPE
main81230-50070i201509-202111
"F-SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i201509-201908
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN),LED TYPE
main81230-50070i201509-201908
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,LED TYPE
main81230-50070i201509-201908
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,LED TYPE
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,LED TYPE
main81230-50070i201908-202111
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),LED TYPE
main81230-50070i201908-202111
"F-SPORT"*(F)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i202107-202111
"VERSION L"*(L)&SUN SHADE-WITH&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),LEDTYPE
main81230-50070i202111
"VERSION L"*(L)&SUN SHADE-WITH,LED TYPE
main81230-50070i202111
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i202111
DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),LED TYPE
81230GLAMP ASSY, REAR DOOR COURTESY, LH
main81230-30200i201509-201908
BULB TYPE
main81230-30200i201908-202111
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER
main81230-50070i201509-201908
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR
main81230-50070i201509-201908
"F-SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)
main81230-50070i201509-201908
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)
main81230-50070i201509-201908
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER
main81230-50070i201509-201908
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR
main81230-50070i201908-202111
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),LED TYPE
main81230-50070i201908-202111
"F-SPORT"*(F)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i201908-202111
"F-SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i202107-202111
"VERSION L"*(L)&SUN SHADE-WITH&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),LEDTYPE
main81230-50070i202111
"VERSION L"*(L)&SUN SHADE-WITH,LED TYPE
main81230-50070i202111
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),LED TYPE
main81230-50070i202111
DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),LED TYPE
81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)
main90981-12010i201509-201908
12V 5W
81230JBULB(FOR REAR DOOR COURTESY LAMP RH)
main90981-12010i201509-201908
12V 5W
81230KBULB(FOR REAR DOOR COURTESY LAMP LH)
main90981-12010i201509-201908
12V 5W
81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)
main90981-12010i201509-201908
12V 5W
81260LAMP ASSY, GLOVE BOX
main81080-33290i201705-201908
main81080-58100i201509-201704
sub81080-33290
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
main81330-58010i201509-201908
main81360-78020i201908
81330BBULB, LUGGAGE COMPARTMENT LAMP
main99132-12050i201509-201908
12V 5W
81340LAMP ASSY, VANITY
main81340-30110i201509-201908
81340BBULB (FOR VANITY LAMP)
main90981-11062i201509-201908
12V 8W
81360TLAMP ASSY, SPOT
main81360-48120-A0i201509-201908
ECRU,TRIM0#,5#
sub81360-48120
main81360-48120-A0i201509-201908
ECRU,TRIM00,01,02,03,04,5#,6#
sub81360-48120
main81360-48120-A0i201908
ECRU,TRIM0#,5#,6#
sub81360-48120
main81360-48120-B1i201509-201908
MOON STONE,TRIM20,21,22,23,24,4#
sub81360-48120
main81360-48120-B1i201509-201908
MOON STONE,TRIM2#,4#
sub81360-48120
main81360-48120-B1i201908
MOON STONE,TRIM20,23,24,29,4#
sub81360-48120
main81360-48120-B1i201908
MOON STONE,TRIM1#,2#,4#
sub81360-48120
main81360-48120-C0i201509-201908
BLACK,TRIM05,06,25,26,3#
sub81360-48120
main81360-48120-C0i201908-201909
BLACK,TRIM25,26,27,28,3#,9#
sub81360-48120
main81360-48120-C1i201909
BLACK,TRIM25,26,27,28,3#,9#
sub81360-48120

19 parts on this diagram · 2 diagrams in section
