HEADLAMP

0001 1SINGLE BEAM TYPE 0002 1SINGLE BEAM TYPE 0003 1TRIPLE BEAM TYPE 0004 1SINGLE BEAM TYPE 0005 1SINGLE BEAM TYPE 0006 1TRIPLE BEAM TYPE 0007 1TRIPLE BEAM TYPE

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-48C30iGGL25,GYL25..A201509-201712

COLD AREA SPEC

sub81016-48C31

main81016-48C31iGGL25,GYL25..A201712-201908

COLD AREA SPEC

main81016-48F00iGGL25,GYL25..A201908

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-48C30iGGL25,GYL25..A201509-201712

COLD AREA SPEC

sub81056-48C31

main81056-48C31iGGL25,GYL25..A201712-201908

COLD AREA SPEC

main81056-48F00iGGL25,GYL25..A201908

81134GASKET, HEADLAMP

main90075-23003iGGL25,GYL25..A201509-201908

HEADLAMP-LED TRIPLE BEAM TYPE

main90075-23003iGGL25,GYL25..A201509-201908

COLD AREA SPEC

main90075-23003iGGL25,GYL25..A201908

81135UNIT ASSY, HEADLAMP, RH

main81140-48E00iGGL25..B201509-201805

sub81140-48E01

main81140-48E01iGGL25..B201805-201908

main81140-48G10iGGL25..B201908

main81145-48C50iGGL25,GYL25..A201509-201908

main81145-48F20iGGL25,GYL25..A201908

81175UNIT ASSY, HEADLAMP, LH

main81070-48E00iGGL25..B201509-201805

sub81070-48E01

main81070-48E01iGGL25..B201805-201908

main81070-48G10iGGL25..B201908

main81185-48C50iGGL25,GYL25..A201509-201908

main81185-48F20iGGL25,GYL25..A201908

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48100iGGL25,GYL25201509-201908

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-48120iGGL25,GYL25201509-201908

main81193-48160iGGL25,GYL25201908

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-48100iGGL25,GYL25201509-201908

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-48120iGGL25,GYL25201509-201908

main81194-48160iGGL25,GYL25201908

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81193-48110iGGL25,GYL25201509-201908

main81193-48150iGGL25,GYL25201908

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81194-48110iGGL25,GYL25201509-201908

main81194-48150iGGL25,GYL25201908

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iGGL25,GYL25..A201509-201908

12V 21W,AMBER

main90981-15024iGGL25..B201509-201908

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iGGL25,GYL25..A201509-201908

main90075-60083iGGL25..B201509-201908

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11069iGGL25..B201509-201908

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main90075-60089iGGL25..B201509-201908

9007502056

main90075-02056

9010506298

main90105-06298

9010906374

main90109-06374

9015950311

main90159-50311

9018905142

main90189-05142

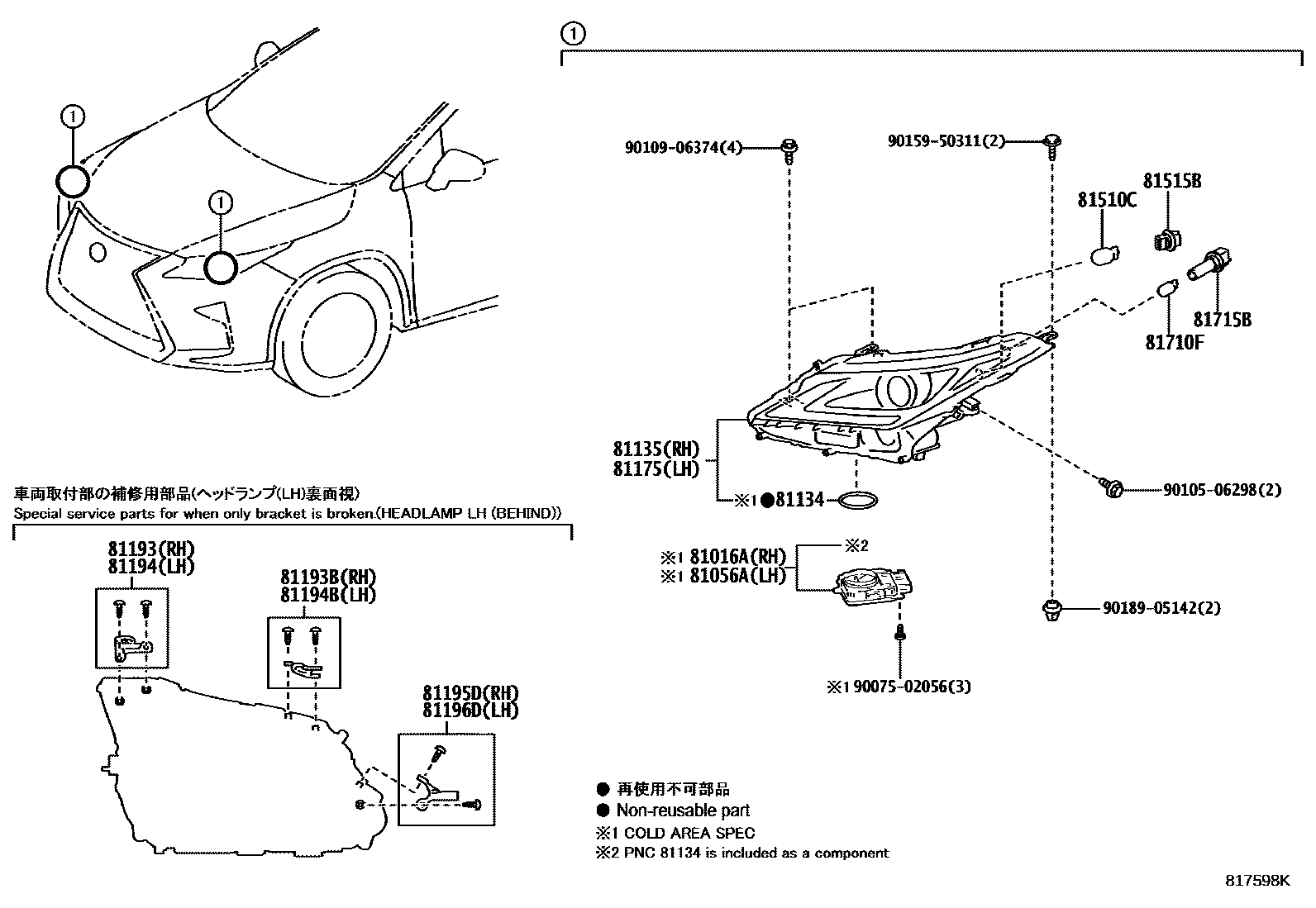

20 parts on this diagram · 7 diagrams in section
