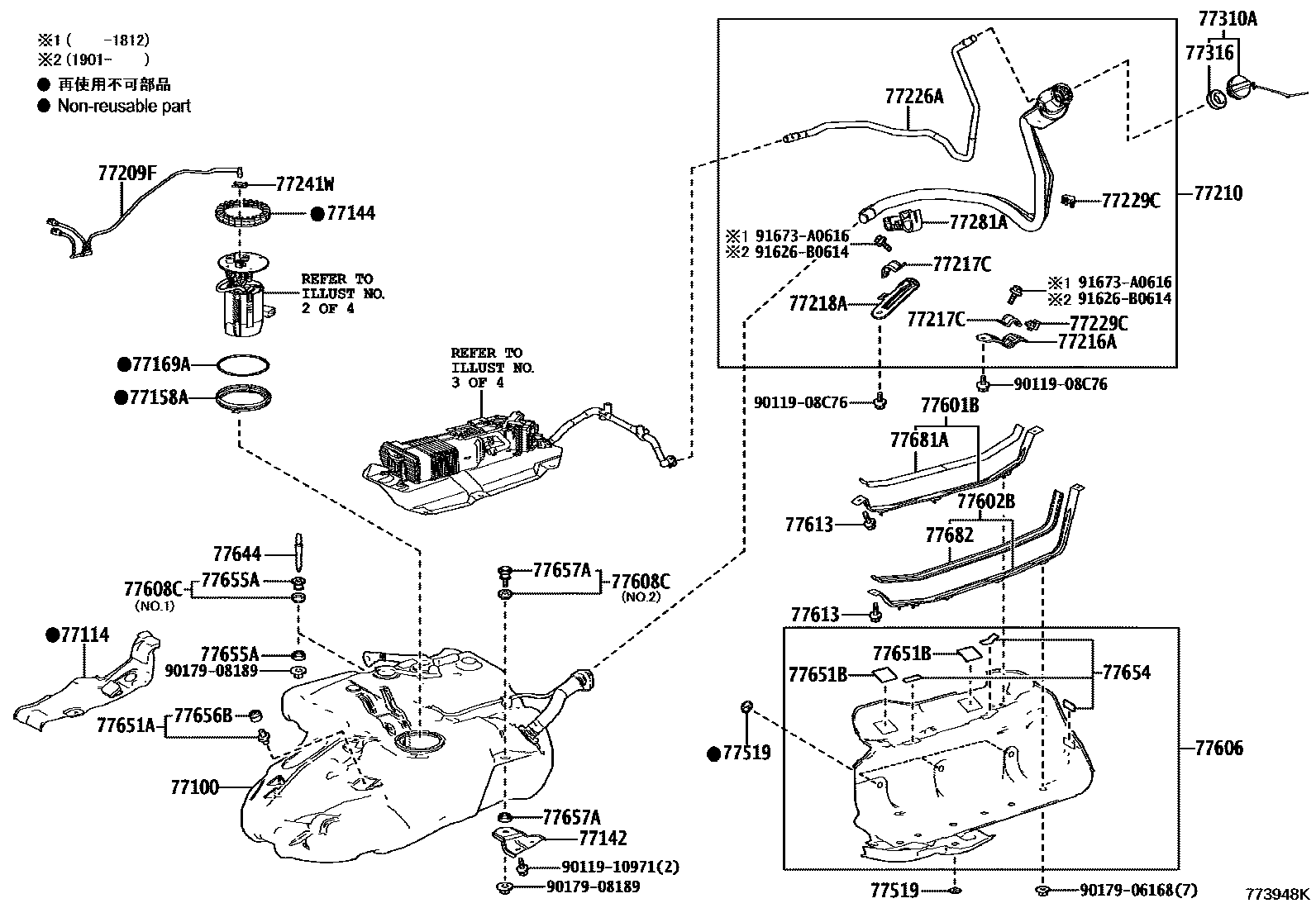

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER 0010 1FUEL LID OPENER

77100TANK ASSY, FUEL

main77001-0E110iGYL25201510-201604

sub77001-0E111

sub77209-0E101

main77001-0E111iGYL25201604-201712

(L)

main77001-48220iGGL25201509-201908

sub77001-0E100

sub77114-0E050

sub77652-48060

sub77653-08010

main77001-48230iGYL25201710-201908

(J)

main77001-48230iGYL25201908-202209

77114PLATE, FUEL TANK SIDE, REAR

main77114-48040iGGL25201509-201908

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-48010iGGL25201509-201908

77144RETAINER, FUEL PUMP GAUGE

main77144-48020iGGL25201509-201908

77158ASUPPORT, TANK SUCTION TUBE

main77158-48020iGGL25201509-201908

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33030iGYL25201510-201908

main77169-48040iGGL25201509-201908

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0E100iGYL25201510-201603

sub77209-0E101

main77209-0E101iGYL25201604-201712

(L)

main77209-0W010iGGL25201712-201908

(L)

main77209-0W010iGGL25201509-201712

main77209-48160iGYL25201710-201908

(J)

main77209-48160iGYL25201908

main77209-48170iGGL25201712-201908

(J)

77210PIPE ASSY, FUEL TANK FILLER

main77210-0E110iGGL25201509-201711

main77210-0E120iGYL25201510-201908

main77210-48390iGGL25201712-201908

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0E040iGYL25201509-201908

main77216-48080iGGL25201712-201908

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0E050iGYL25201509-201908

main77217-48080iGGL25201712-201908

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-0E060iGYL25201510-201908

main77218-0E080iGGL25201509-201711

main77218-48140iGGL25201712-201908

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0E080iGGL25201509-201711

main77226-0E090iGYL25201510-201908

main77226-48220iGGL25201712-201908

77229CCLAMP, BREATHER TUBE

main77229-0E010iGYL25201509-201908

main77229-48030iGGL25201712-201908

77241WCLIP, TUBE JOINT

main77241-02010iGYL25201510-201604

main77241-02010iGYL25201604-201712

(L)

main77241-33011iGGL25201509-201908

main77241-33011iGYL25201710-201908

(J)

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-48130iGGL25201509-201908

77281ACLAMP, FUEL FILLER PIPE

main77281-0E030iGYL25201509-201908

main77281-48080iGGL25201712-201908

77310ACAP ASSY, FUEL TANK

main77300-53030iGGL25201509-201908

main77300-53040iGYL25201510-201908

77316GASKET, FUEL TANK CAP

main77316-75020iGGL25,GYL25201509-201908

77519SPACER, FUEL TANK BRACKET

main77529-48010iGGL25201509-201908

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-0E040iGYL25201510-201908

main77601-48190iGGL25201509-201908

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0E040iGYL25201510-201908

main77602-48180iGGL25201509-201908

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0E050iGYL25201510-201908

main77606-48140iGGL25201509-201908

77608CCUSHION SET, FUEL TANK

main77608-48011iGGL25201509-201908

NO.1

main77608-48040iGGL25201509-201908

NO.2

77613BOLT, FUEL TANK BAND SET

main90119-10971iGGL25,GYL25201509-201908

77644BOLT, FUEL TANK

main77644-48010iGGL25201509-201908

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iGYL25201510-201908

main77651-48020iGGL25201509-201908

77651BCUSHION, FUEL TANK

main77651-12070iGGL25201509-201908

77654CUSHION, FUEL TANK, NO.2

main77652-48020iGGL25201509-201908

77655ACUSHION, FUEL TANK, NO.5

main77655-48011iGGL25201509-201908

77656BCUSHION, FUEL TANK, NO.6

main77656-48020iGGL25201509-201908

77657ACUSHION, FUEL TANK, NO.5

main77655-48020iGGL25201509-201908

77681ASEAT, FUEL TANK BAND

main77681-48050iGGL25201509-201908

77682SEAT, FUEL TANK BAND, LH

main77616-0E050iGYL25201510-201908

main77682-48050iGGL25201509-201908

9011908C76

main90119-08C76

9011910971

main90119-10971

9017906168

main90179-06168

9017908189

main90179-08189

91626B0614

main91626-B0614

91673A0616

main91673-A0616

39 parts on this diagram · 10 diagrams in section
