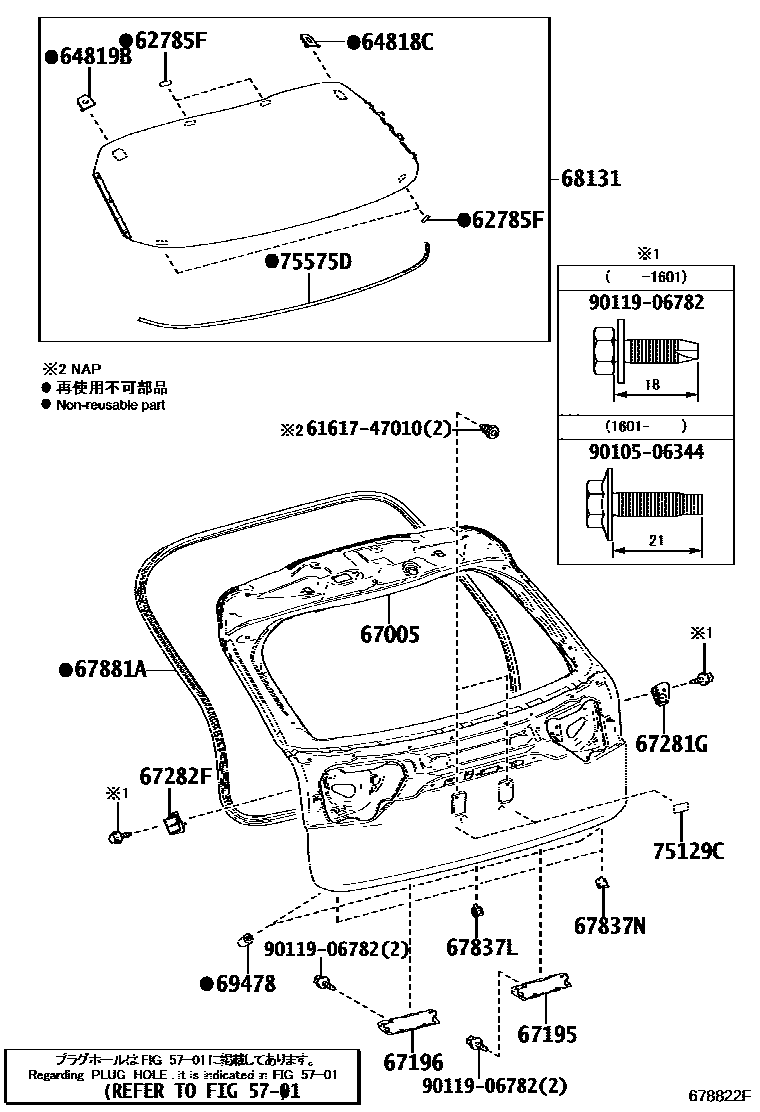

BACK DOOR PANEL & GLASS
5701
62785FSPACER, BACK DOOR GLASS
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)
sub67005-48820
sub67005-48830
67195REINFORCEMENT, BACK DOOR STAY, LOWER RH
67196REINFORCEMENT, BACK DOOR STAY, LOWER LH
67837LSEAL, DOOR DUST PROOF
67837NSEAL, BACK DOOR DUST PROOF
68131GLASS, BACK DOOR
69478CUSHION, BACK DOOR LOWER STOPPER
75129CCUSHION, REAR LICENCE PLATE
75575DMOULDING, BACK WINDOW, LOWER
6161747010REINFORCEMENT, BACK FRAME UPPER CORNER, RH
main61617-47010
9010506344
main90105-06344
9011906782
main90119-06782
19 parts on this diagram · 2 diagrams in section
