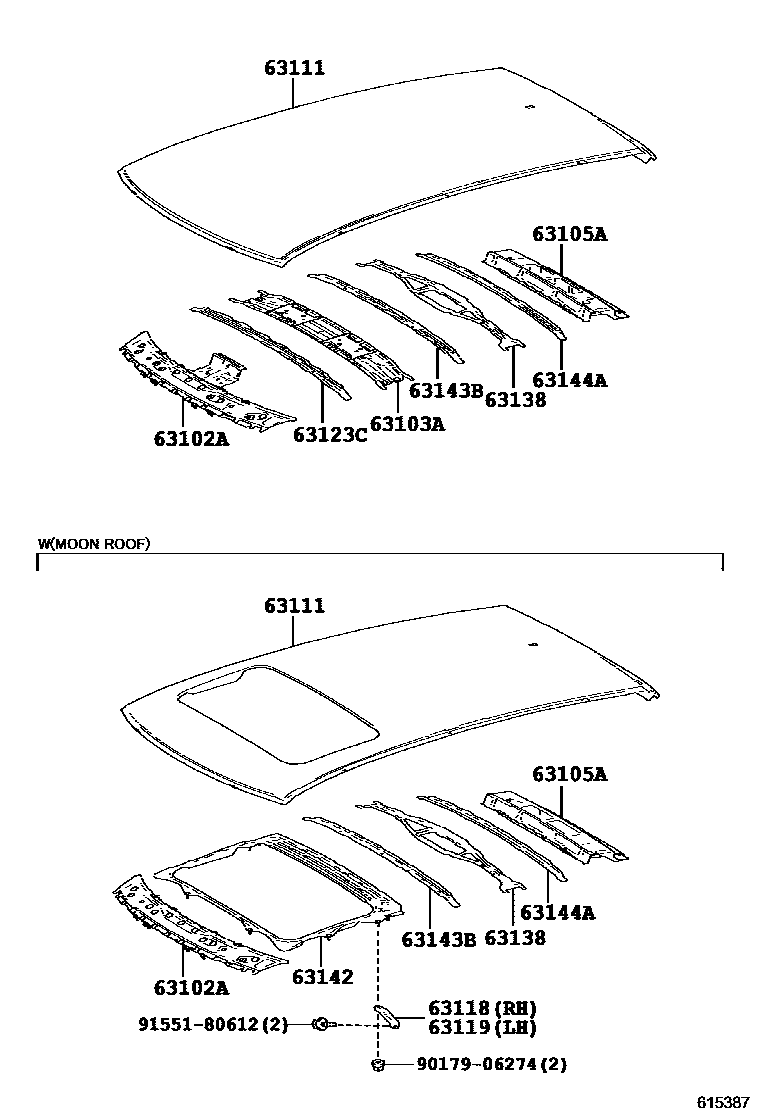

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF PANEL(PANORAMA) 0003 1SLIDING ROOF(MOON) 0004 1SLIDING ROOF(PANORAMA) 0005 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48240iGGL25,GYL25..A201509-201908

ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

main63102-48916iGGL25,GYL25..A201509-201908

main63102-48917iGGL25,GYL25..A201509-201908

ROOF RAIL-WITH&MOON ROOF-WITH

main63102-48917iGGL25,GYL25..A201509-201908

MOON ROOF-WITH

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-48060iGGL25,GYL25..A201509-201908

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48080iGGL25,GYL25201509-201908

63111PANEL, ROOF

main63111-48260iGGL25,GYL25..A201509-201908

ROOF RAIL-WITH

main63111-48270iGGL25,GYL25..A201509-201908

main63111-48300iGGL25,GYL25..A201509-201908

ROOF RAIL-WITH&MOON ROOF-WITH

main63111-48310iGGL25,GYL25..A201509-201908

MOON ROOF-WITH

main63111-48340iGGL25,GYL25..A201509-201908

ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-48110iGGL25..B201509-201908

MOON ROOF-WITH

main63118-48110iGGL25..B201509-201908

ROOF RAIL-WITH&MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-48110iGGL25..B201509-201908

ROOF RAIL-WITH&MOON ROOF-WITH

main63118-48110iGGL25..B201509-201908

MOON ROOF-WITH

63123CREINFORCEMENT, ROOF PANEL

main63123-48060iGGL25,GYL25..A201509-201908

63138BRACKET, DOME LAMP, NO.2

main63138-48050iGGL25,GYL25201509-201908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-48070iGGL25..B201509-201908

ROOF RAIL-WITH&MOON ROOF-WITH

main63142-48070iGGL25..B201509-201908

MOON ROOF-WITH

main63142-48080iGGL25,GYL25..A201509-201908

ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48100iGGL25,GYL25201509-201908

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48090iGGL25,GYL25201509-201908

9017906274

main90179-06274

9155180612

main91551-80612

13 parts on this diagram · 5 diagrams in section
