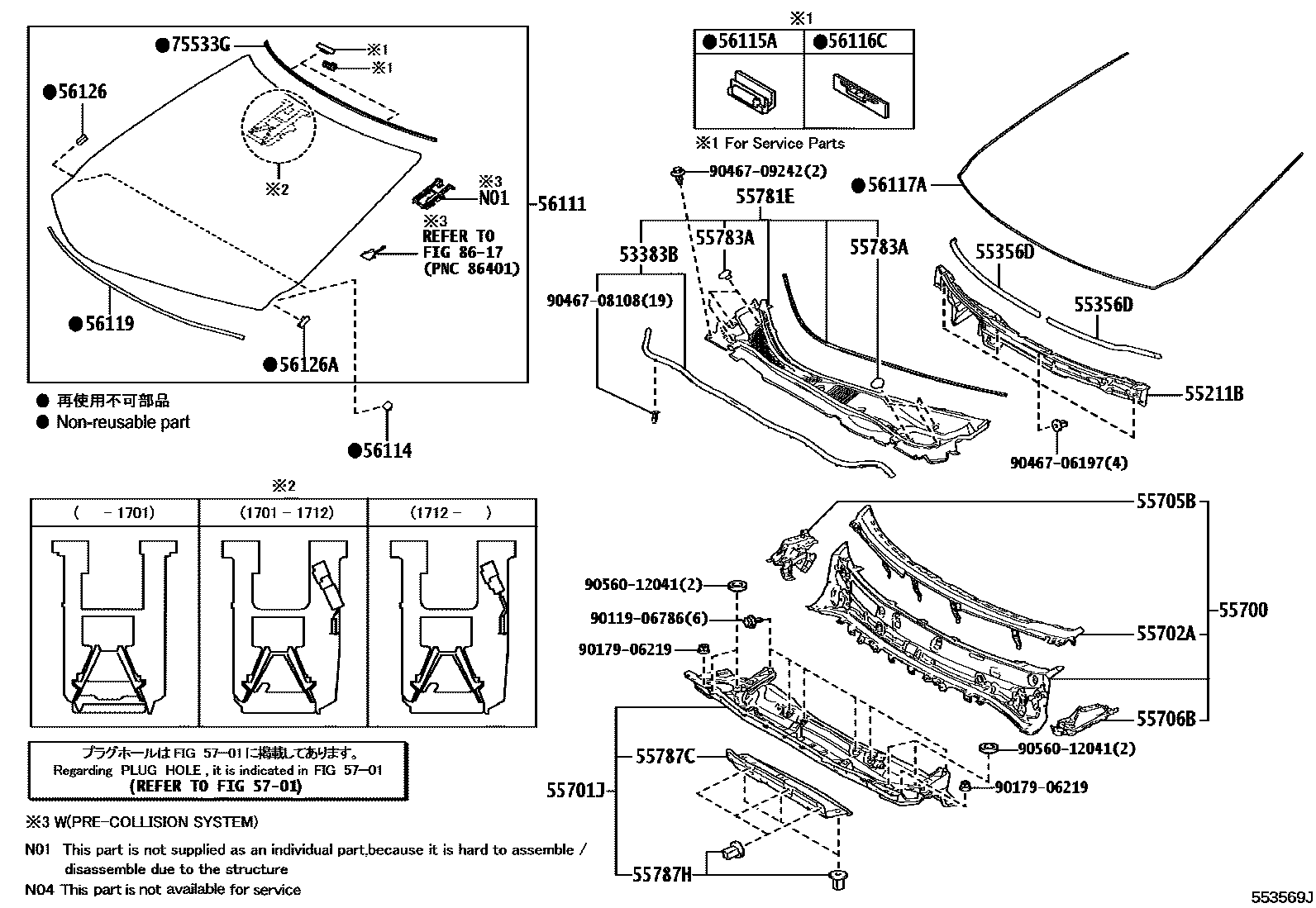

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700PANEL ASSY, FRONT
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
sub55708-48171
55783APAD, COWL TOP SILENCER
55787CINSULATOR, COWL TOP PANEL, NO.1
55787HCLIP, COWL TOP PANEL INSULATOR
BLACK
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=3143,COLD AREA SPEC
*D,L=3143,COLD AREA SPEC&HEAD UP DISPLAY-WITH
*D,L=3143,HEAD UP DISPLAY-WITH
*D,L=3143
*D,L=3143,ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +
*D,L=3143,ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&COLD AREA SPEC
*D,L=3143,ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&COLD AREA SPEC&HEAD UP DISPLAY-WITH
*D,L=3143,ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD UP DISPLAY-WITH
56119SEAL, WINDSHIELD GLASS
56126SPACER, WINDSHIELD GLASS, NO.2
56126ASPACER, WINDSHIELD GLASS, NO.1
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906786
main90119-06786
9017906219
main90179-06219
9046706197
main90467-06197
9046708108
main90467-08108
9046709242
main90467-09242
9056012041
main90560-12041
29 parts on this diagram · 1 diagram in section
