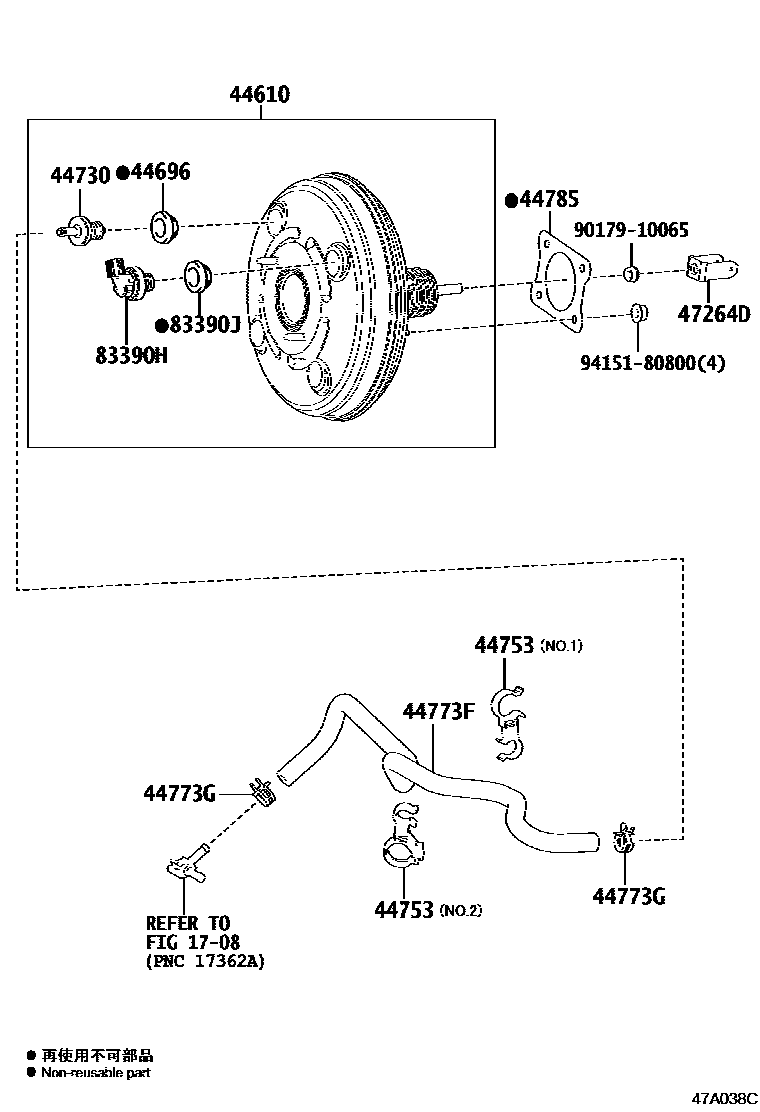

BRAKE BOOSTER & VACUUM TUBE

1708

44610BOOSTER ASSY, BRAKE

main44610-48440iGGL25201509-201908

44696GROMMET, CHECK VALVE

main90480-24439iGGL25201509-201908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGGL25201509-201908

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-48330iGGL25201509-201908

NO.1

main44753-48350iGGL25201509-201908

NO.2

44773FHOSE, UNION TO CHECK VALVE

main44773-48210iGGL25201509-201908

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGGL25201509-201908

44785GASKET, BRAKE BOOSTER

main44785-12040iGGL25201509-201908

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iGGL25201509-201908

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGGL25201509-201908

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iGGL25201509-201908

9017910065

main90179-10065

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
