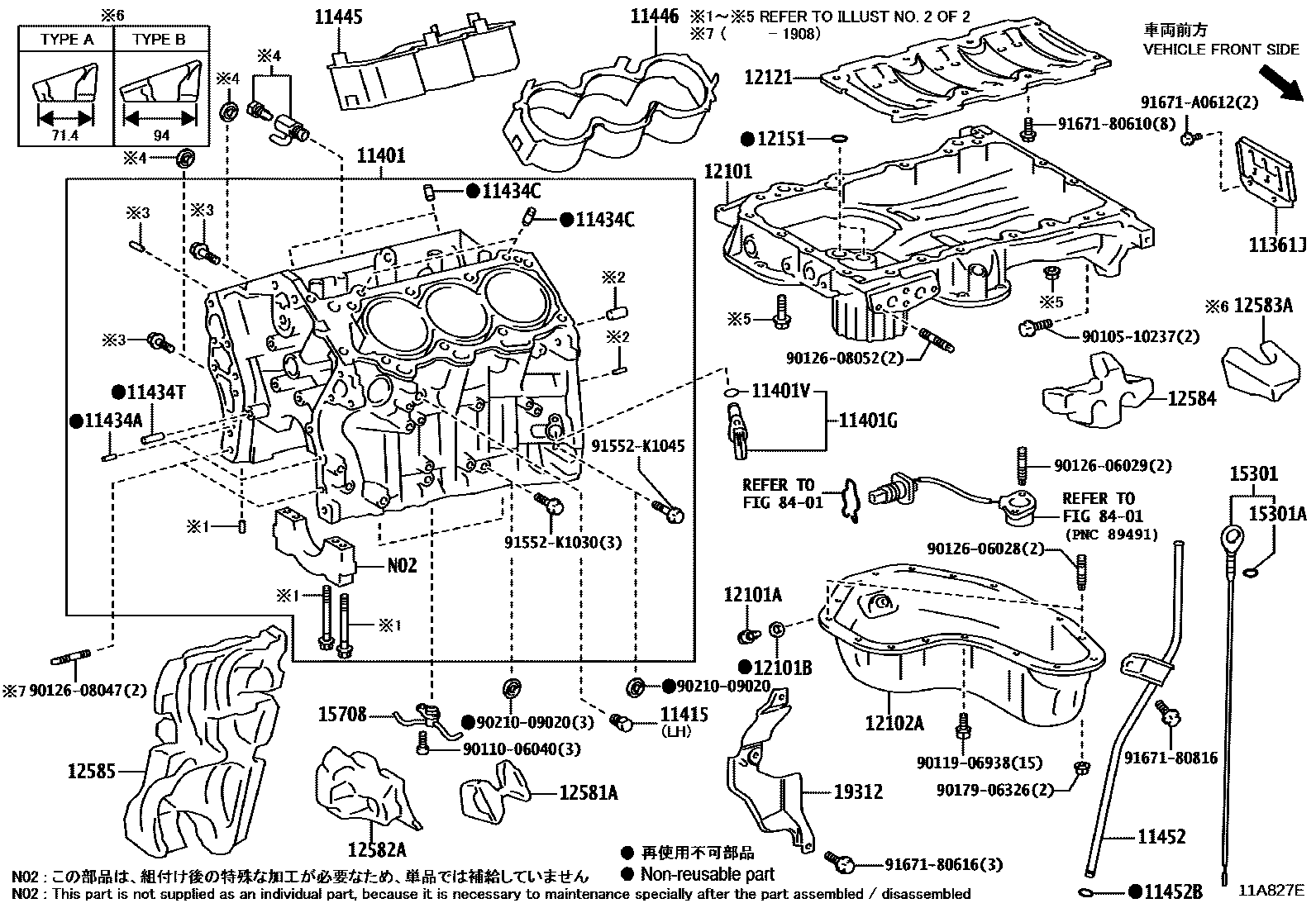

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
LH
RH
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
11445SPACER, CYLINDER BLOCK WATER JACKET
11446SPACER, CYLINDER BLOCK WATER JACKET, LH
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12121PLATE, OIL PAN BAFFLE, NO.1
12151GASKET, OIL PAN
12581AINSULATOR, CYLINDER BLOCK, NO.1
12582AINSULATOR, CYLINDER BLOCK, NO.2
12583AINSULATOR, CYLINDER BLOCK, NO.3
12584INSULATOR, CYLINDER BROCK, NO.4
main12584-31010
12585INSULATOR, CYLINDER BROCK, NO.5
main12585-31010
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15708NOZZLE SUB-ASSY, OIL, NO.1
19312PROTECTOR, CRANK POSITION SENSOR
8401
9010510237
main90105-10237
9011006040
main90110-06040
9011906938
main90119-06938
9012606028
main90126-06028
9012606029
main90126-06029
9012608047
main90126-08047
9012608052
main90126-08052
9017906326
main90179-06326
9021009020
main90210-09020
91552K1030
main91552-K1030
91552K1045
main91552-K1045
9167180610
main91671-80610
9167180616
main91671-80616
9167180816
main91671-80816
91671A0612
main91671-A0612
43 parts on this diagram · 4 diagrams in section
