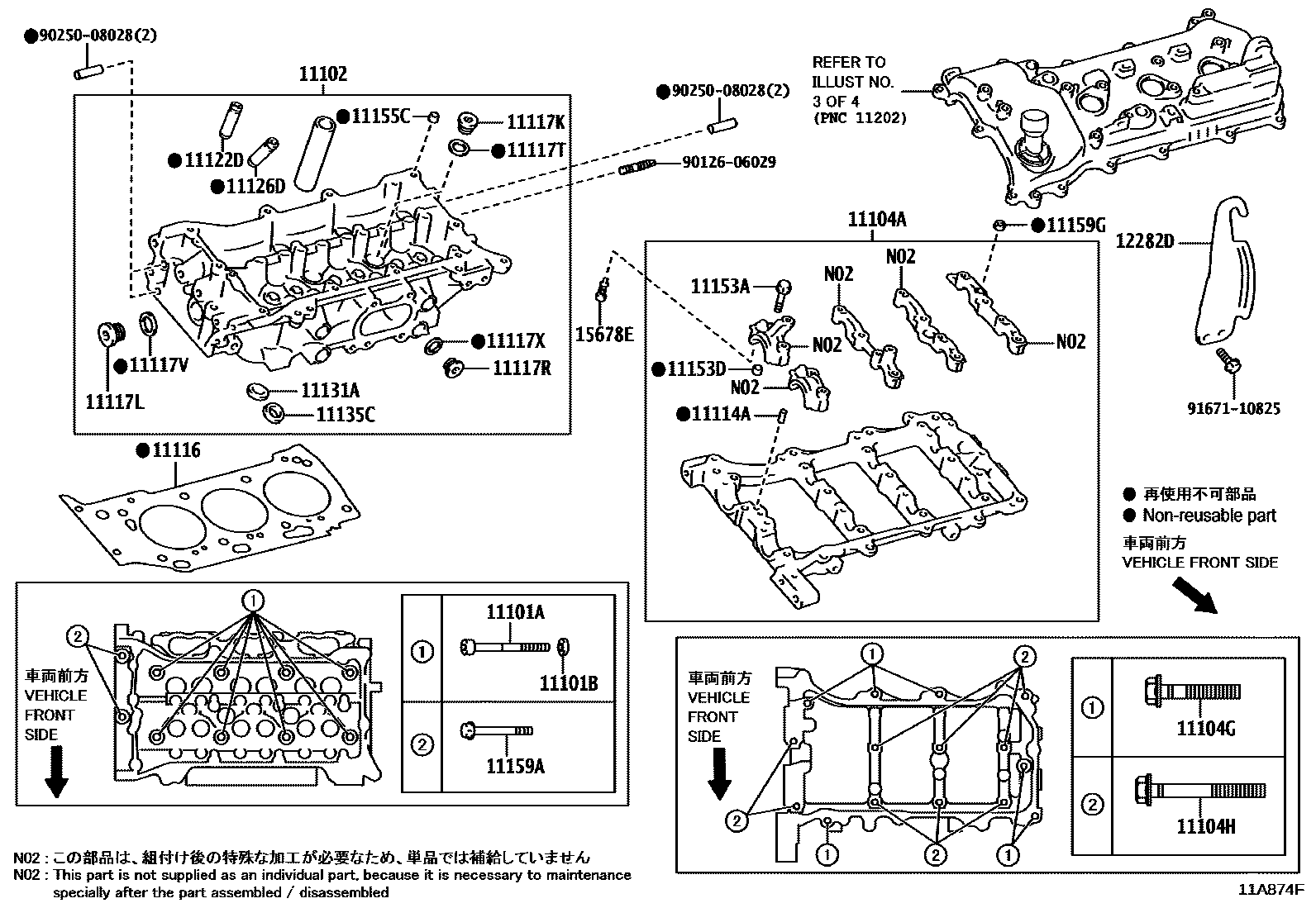

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11104GBOLT(FOR CAMSHAFT HOUSING SET, LH NO.1)
11104HBOLT(FOR CAMSHAFT HOUSING SET, LH NO.2)
11114APIN, STRAIGHT
L=13.8,OD=5.0
11116GASKET, CYLINDER HEAD, NO.2
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117RPLUG, W/HEAD STRAIGHT SCREW, LH NO.3
11117TGASKET(FOR WATER HOLE LH)
11117VGASKET(FOR CYLINDER HEAD SCREW PLUG, LH NO.1)
11117XGASKET(FOR CYLINDER HEAD SCREW PLUG, LH NO.2)
11122DBUSH, INTAKE VALVE GUIDE, LH
STD
11126DBUSH, EXHAUST VALVE GUIDE, LH
11131SEAT, INTAKE VALVE
11131ASEAT, INTAKE VALVE, NO.2
11135CSEAT, EXHAUST VALVE, LH
STD
O/S 0.03
11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11153DPIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)
11155CPIN, RING NO.2
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
12282DHANGER, ENGINE, NO.2
15678EFILTER, OIL CONTROL VALVE, LH
9012606029
main90126-06029
9025008028
main90250-08028
9167110825
main91671-10825
30 parts on this diagram · 6 diagrams in section
