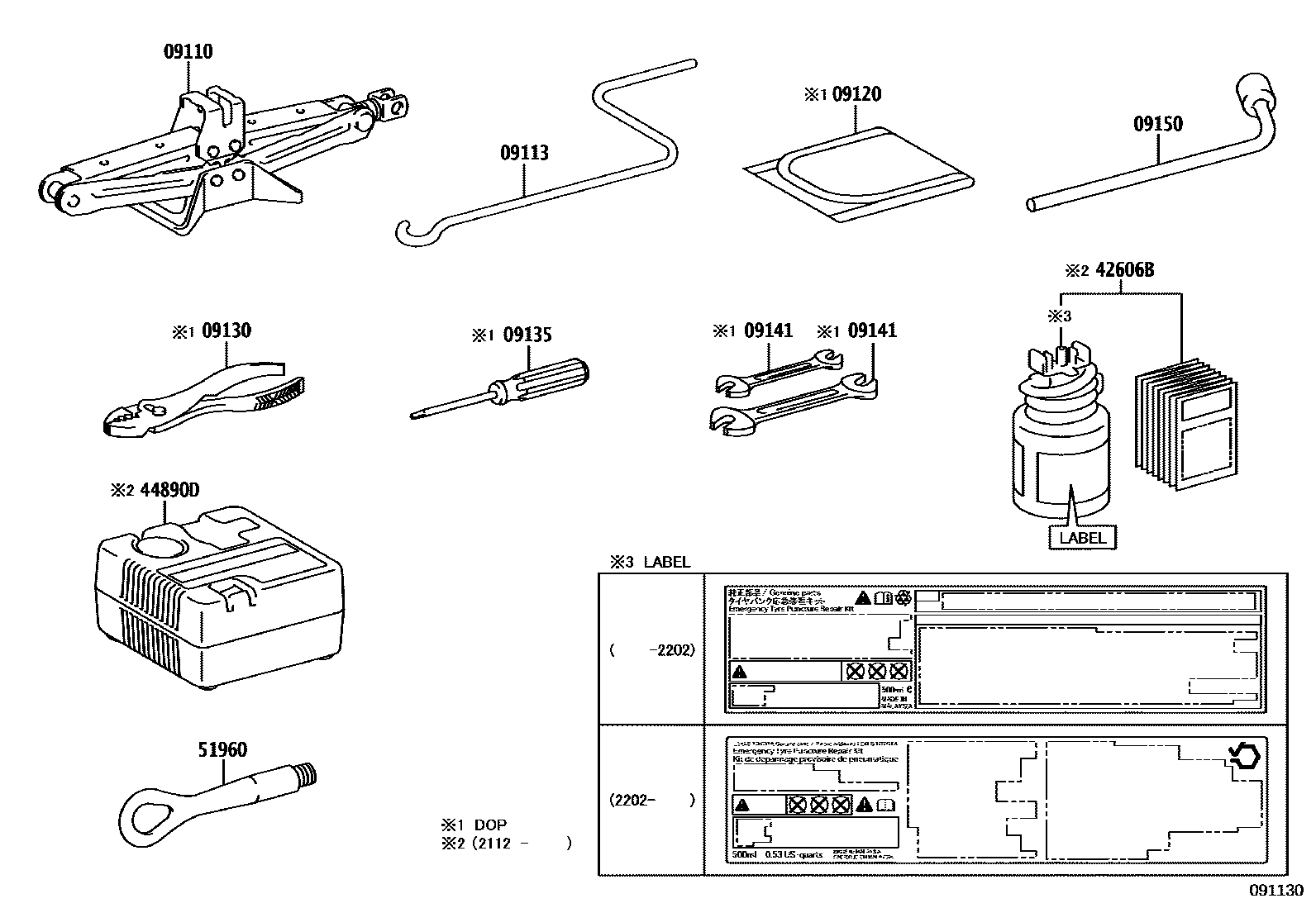

STANDARD TOOL

09110JACK ASSY

main09111-0E060iGGL25..B201509-201601

sub09111-0E061

main09111-0E061iGGL25..B201602-201908

main09111-48020iGGL25,GYL25..A201509-201603

sub09111-48021

main09111-48021iGGL25,GYL25..A201604-202108

main09111-48022iGGL25,GYL25..A202109-202112

09113HANDLE, JACK

main09113-33010iGGL25..B201509-202112

09120BAG, TOOL

main09120-48010

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main09135-50060

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-26010iGGL25,GYL25201509-202112

42606BREPAIR KIT, TUBELESS TIRE

main42606-48010iGGL25,GYL25..A202112-202202

main42606-48020iGGL25,GYL25..A202202

44890DCOMPRESSOR ASSY, AIR

main44890-48061iGGL25,GYL25..A202112

sub44890-48062

51960HOOK ASSY, FRONT

main51961-48070iGGL25,GYL25201509-201908

10 parts on this diagram · 1 diagram in section
