WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-48020iGGL1#,GYL1#..JPP200812-201203

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-58090iGGL1#,GYL1#..JPP200812-201203

85160LINK ASSY, WINDSHIELD WIPER

main85150-48170iGGL1#,GYL1#..JPP200812-201203

85211BARM, FRONT WIPER, RH

main85211-48150iGGL1#,GYL1#..JPP200812-201203

85212ABLADE, FR WIPER, RH

main85212-48130iGGL1#..JPP200812-200902

main85212-48150iGGL1#,GYL1#..JPP200903-201203

85214ARUBBER, WIPER, RH

main85214-53080iGGL1#,GYL1#..JPP200812-201203

85214BRUBBER, WIPER, LH

main85214-68020iGGL1#,GYL1#..JPP200812-201203

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-48150iGGL1#,GYL1#..JPP200812-201203

85222ABLADE, FR WIPER, LH

main85222-52170iGGL1#,GYL1#..JPP200812-201203

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iGGL1#,GYL1#..JPP200812-201203

89941SENSOR, RAIN

main89941-30020iGGL1#,GYL1#..JPP200812-201007

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-48070iGGL1#,GYL1#..JPP201008-201102

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-48071iGGL1#,GYL1#..JPP201103-201108

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-48072iGGL1#,GYL1#..JPP201109-201203

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-22030iGGL1#,GYL1#..JPP200812-201203

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42010iGGL1#,GYL1#..JPP200812-201203

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

9011906864

main90119-06864

9017610005

main90176-10005

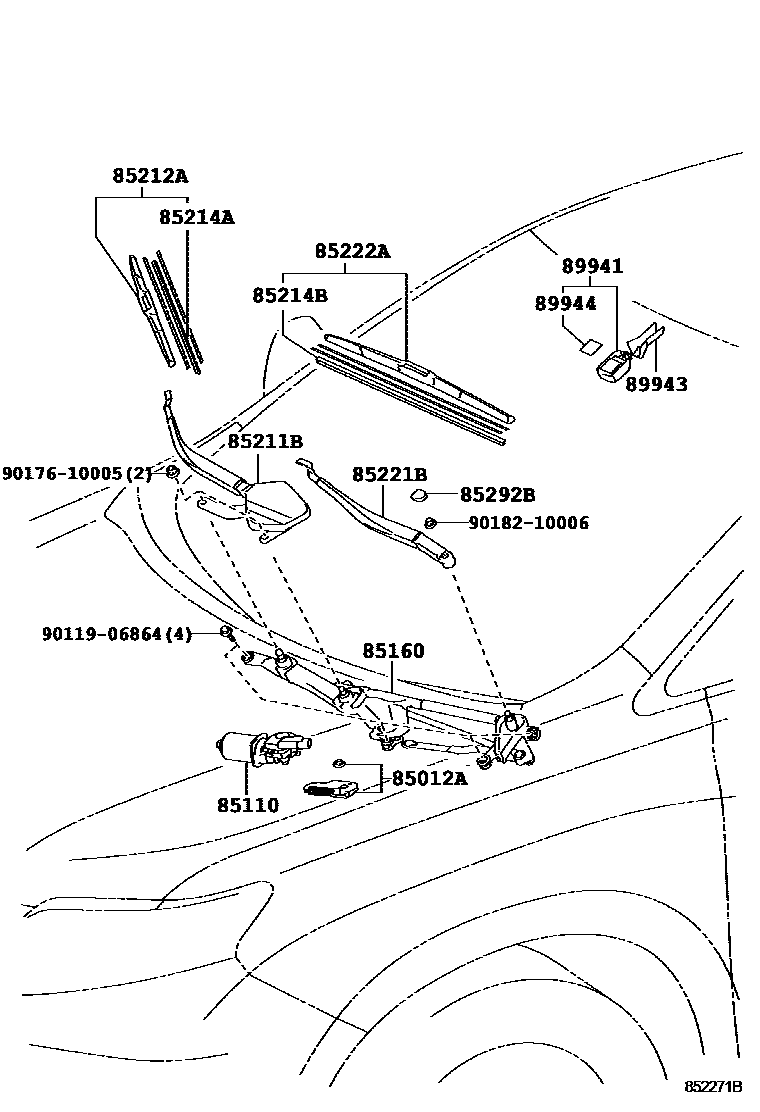

15 parts on this diagram · 1 diagram in section
