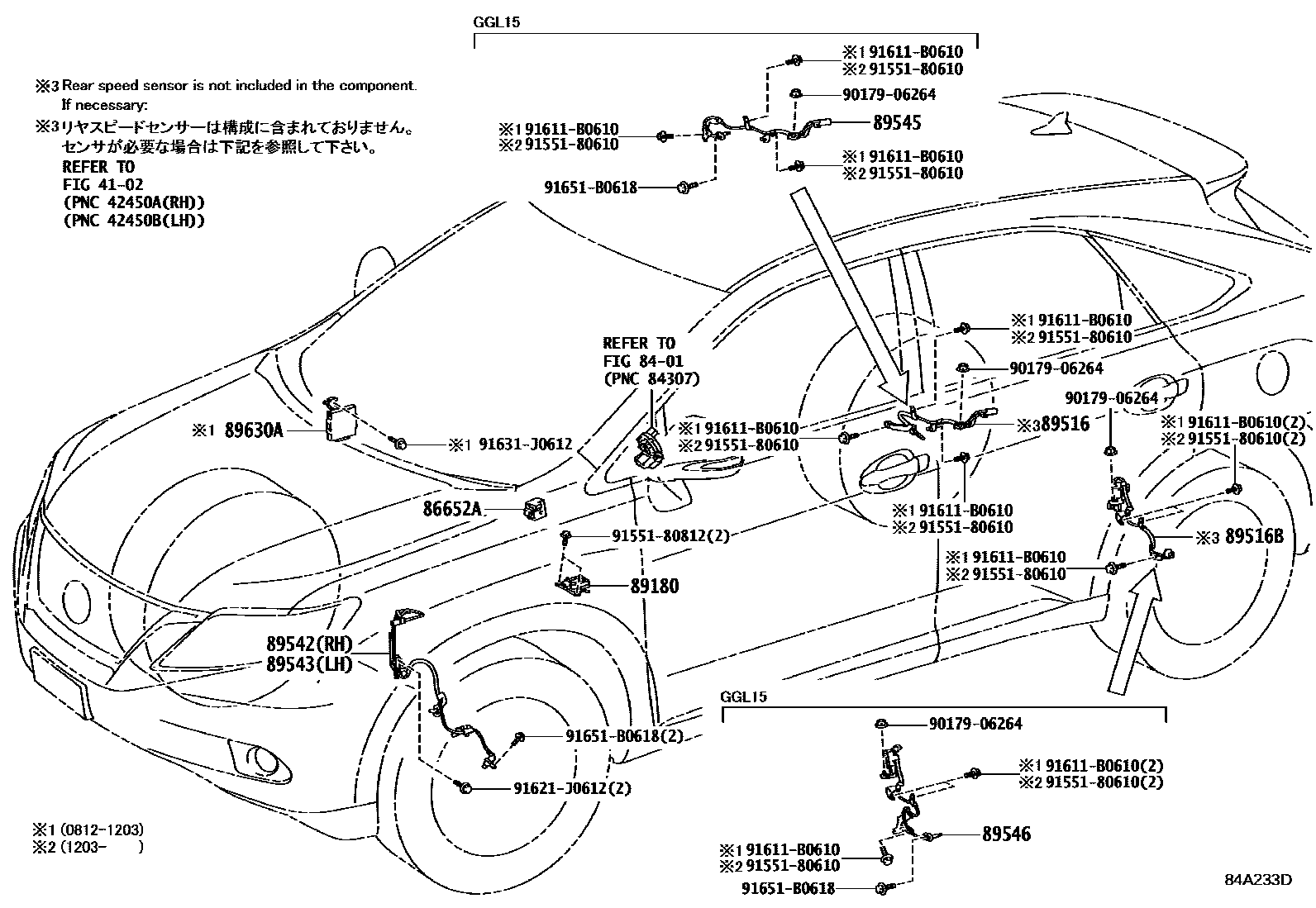

ABS & VSC

0001 1 0002 1

4102

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iGYL1#..JPP200812-201203

89180SENSOR ASSY, YAWRATE

main89180-48080iGYL1#..JPP201203

VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)

main89180-48080iGYL1#..JPP200903-201203

main89180-48090iGGL1#..JPP200812-201203

89516WIRE, SKID CONTROL SENSOR

main89516-48070iGGL10,GYL10..JPP200812-201203

89516BWIRE, SKID CONTROL SENSOR

main89516-48080iGGL10,GYL10..JPP200812-201203

89542SENSOR, SPEED, FRONT RH

main89542-48050iGGL1#,GYL1#..JPP200812-201203

89543SENSOR, SPEED, FRONT LH

main89543-48050iGGL1#,GYL1#..JPP200812-201203

89545SENSOR, SPEED, REAR RH

main89545-48050iGGL15,GYL15..JPP200812-201509

89546SENSOR, SPEED, REAR LH

main89546-48050iGGL15,GYL15..JPP200812-201203

89630ACOMPUTER ASSY, 4WD

main89630-48010iGGL15..JPP200812-201203

9017906264

main90179-06264

9155180610

main91551-80610

9155180812

main91551-80812

91611B0610

main91611-B0610

91621J0612

main91621-J0612

91631J0612

main91631-J0612

91651B0618

main91651-B0618

18 parts on this diagram · 2 diagrams in section
