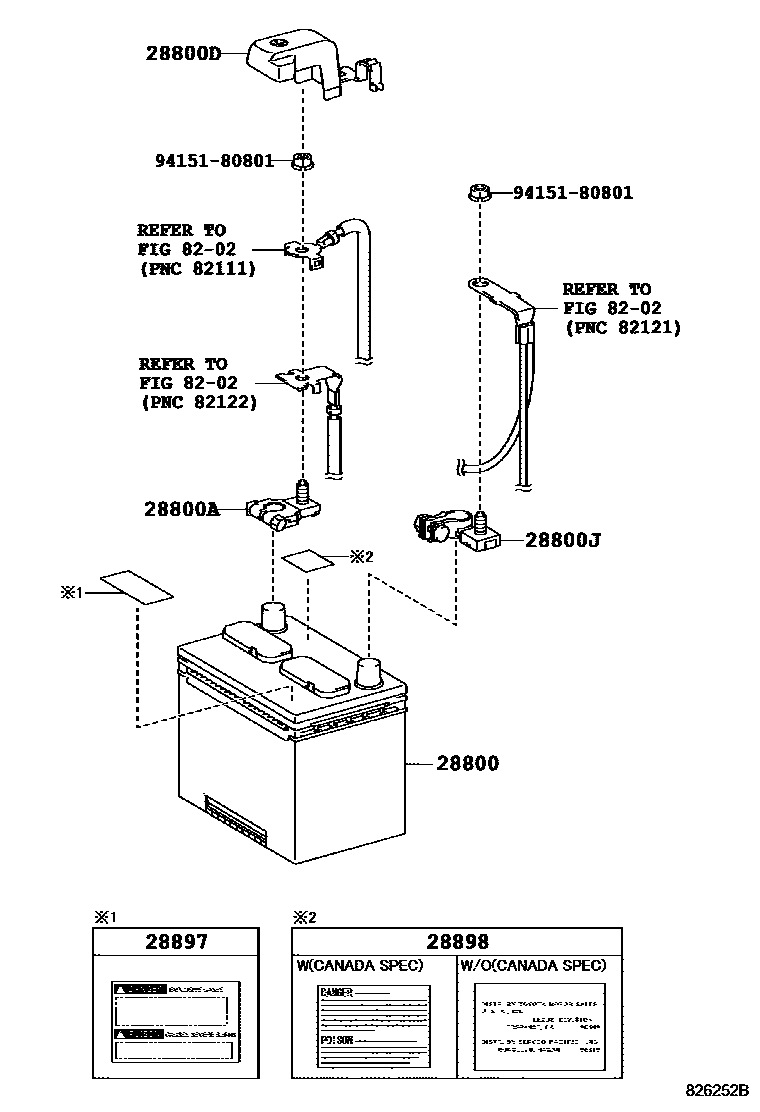

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-31290i2GRFXE..GYL1#..JPP200903-201509

S55D23L

sub28800-31291

main28800-38080i2GRFE..GGL1#..JPP200812-201509

80D26L

sub28800-38081

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFXE..GYL1#..JPP200903-201203

main90982-05062i2GRFE..GGL1#..JPP200812-201203

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-52060i2GRFE..GGL1#..JPP200812-201203

28800JTERMINAL, BATTERY NEGATIVE

main90982-06060i2GRFE..GGL1#..JPP200812-201203

28897PLATE, BATTERY CAUTION

main28897-50050i2GRFE..GGL1#..JPP200812-201509

28898PLATE, BATTERY

main28898-20010i2GRFE..GGL1#..JPP200812-201509

8202

9415180801

main94151-80801

8 parts on this diagram · 5 diagrams in section
