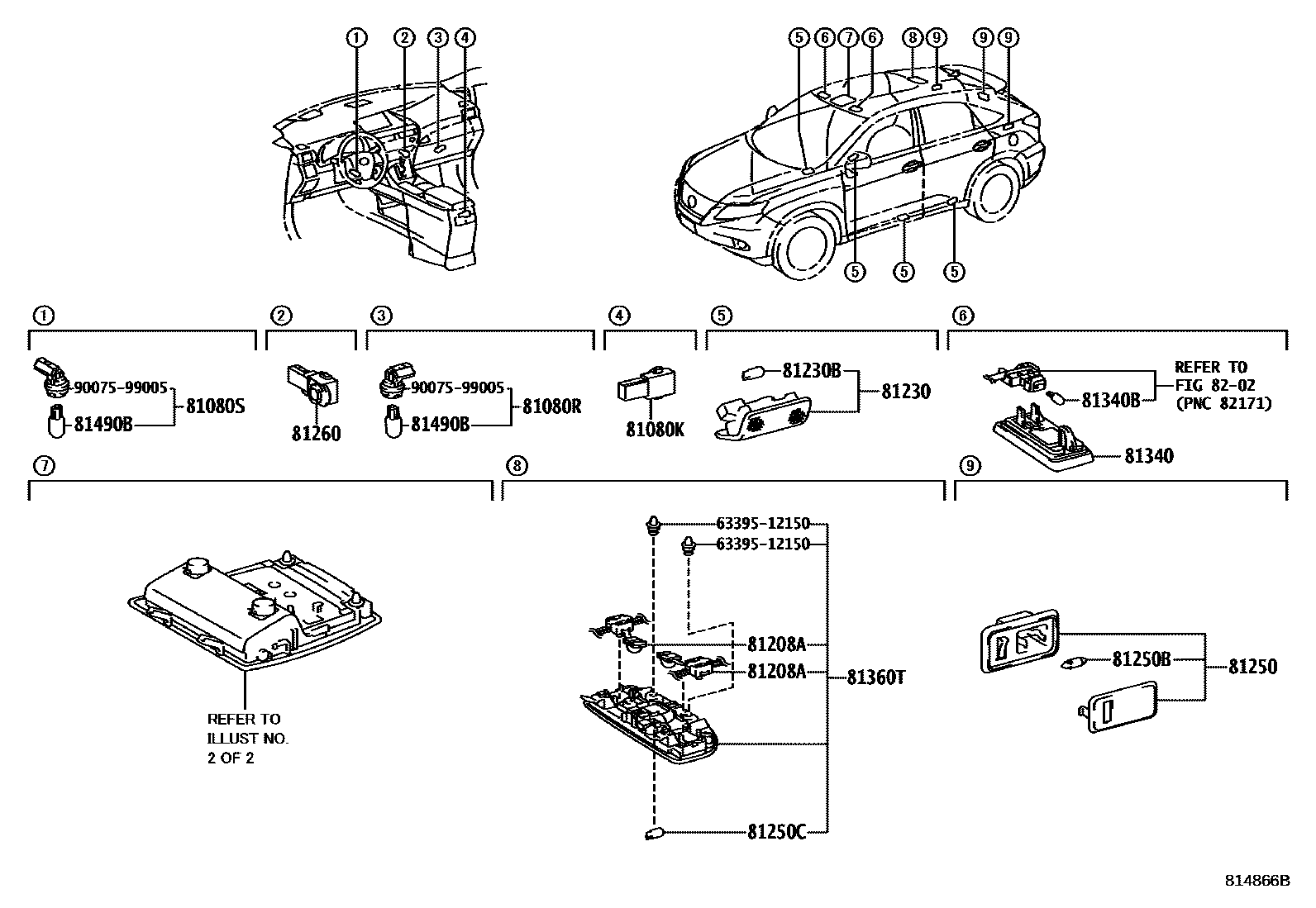

INTERIOR LAMP
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81208LAMP SUB-ASSY, MAP
81208ALAMP SUB-ASSY, MAP, NO.2
81230BBULB(FOR COURTESY LAMP)
12V 5W
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 5W
81250CBULB, SPOT LAMP
12V 8W
81260LAMP ASSY, GLOVE BOX
81340LAMP ASSY, VANITY
IVORY,TRIM0#
IVORY,TRIM0#,40
LT.GRAY,TRIM1#,20,3#,40
LT.GRAY,TRIM1#,2#
BLACK,TRIM21,22
BLACK,TRIM22
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
IVORY,TRIM0#,40
IVORY,TRIM0#
LT.GRAY,TRIM1#,20,3#,40
LT.GRAY,TRIM1#,20,30,40
LT.GRAY,TRIM1#,2#
BLACK,TRIM21,22,31
BLACK,TRIM22
81490BBULB (FOR FOOT LAMP)
12V 3.8W
8202
6339512150CLIP, ROOF HEADLINING TRIM
main63395-12150
9007599005
main90075-99005
18 parts on this diagram · 2 diagrams in section
