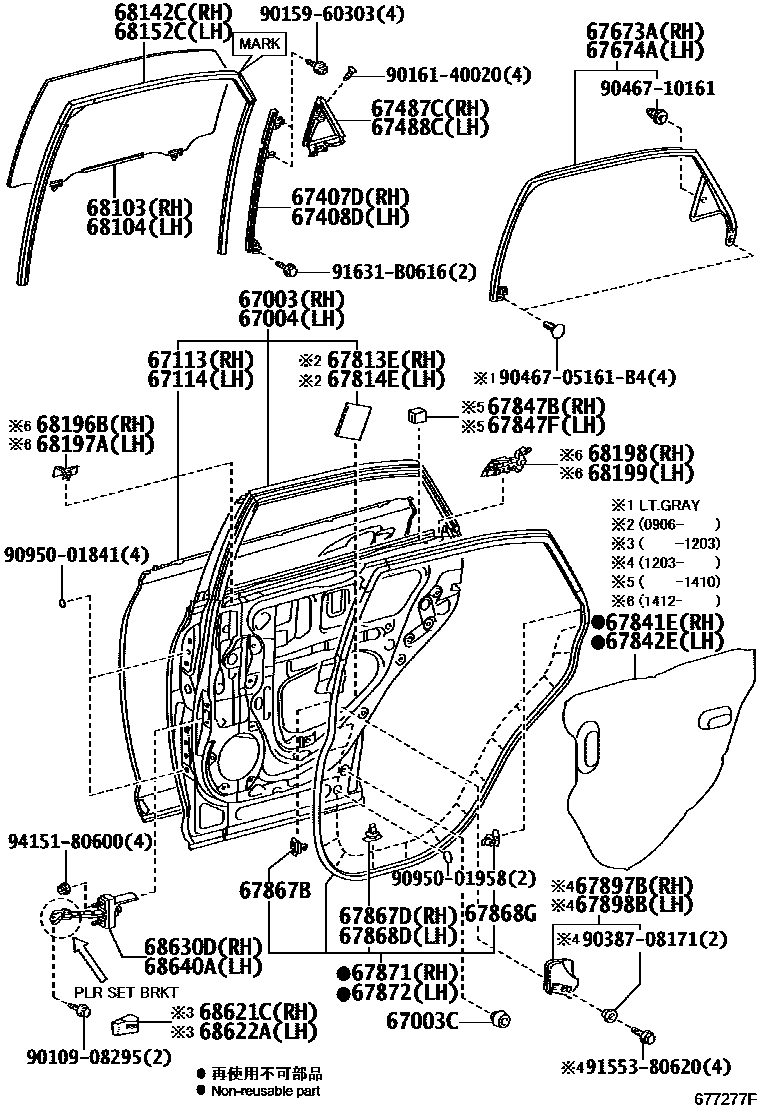

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
CANADA SPEC
KOREA SPEC
MEXICO SPEC
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
KOREA SPEC
CANADA SPEC
MEXICO SPEC
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67813ESHEET, QUARTER PANEL SILENCER, RH
67814ESHEET, QUARTER PANEL SILENCER, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67847FSEAL, REAR DOOR VENT, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67868GRETAINER, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67897BCUSHION, REAR DOOR, RH
67898BCUSHION, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=4.0,DARK GLAY
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=4.0,DARK GLAY
68142CRUN, REAR DOOR GLASS, RH
MARK 68142-48051
MARK 68142-48052
68152CRUN, REAR DOOR GLASS, LH
MARK 68152-48051
MARK 68152-48052
68196BSEAL, REAR DOOR BELT, FRONT RH
68197ASEAL, REAR DOOR BELT, FRONT LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
68630DCHECK ASSY, REAR DOOR, RH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
68640ACHECK ASSY, REAR DOOR, LH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
9010908295
main90109-08295
9015960303
main90159-60303
9016140020
main90161-40020
9038708171
main90387-08171
9046705161B4
main90467-05161B4
9046710161
main90467-10161
9095001841
main90950-01841
9095001958
main90950-01958
9155380620
main91553-80620
91631B0616
main91631-B0616
9415180600
main94151-80600
48 parts on this diagram · 2 diagrams in section
