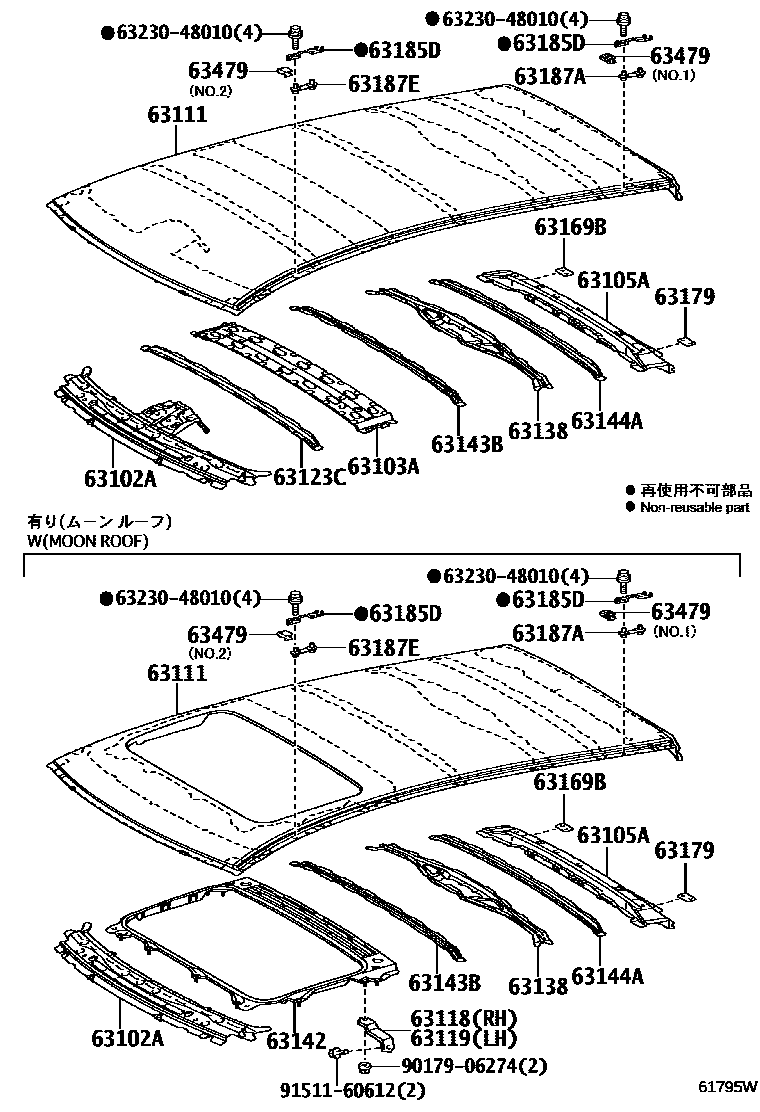

ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
WITH(MOON ROOF)&SATELLITE RADIO-WITHOUT
WITH(MOON ROOF)
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63111PANEL, ROOF
SATELLITE RADIO-WITHOUT
WITH(MOON ROOF)
WITH(MOON ROOF)&SATELLITE RADIO-WITHOUT
WITH(MOON ROOF)
63118SUPPORT, ROOF PANEL, RH
WITH(MOON ROOF)&SATELLITE RADIO-WITHOUT
WITH(MOON ROOF)
63119SUPPORT, ROOF PANEL, LH
WITH(MOON ROOF)
WITH(MOON ROOF)&SATELLITE RADIO-WITHOUT
63123CREINFORCEMENT, ROOF PANEL
63138BRACKET, DOME LAMP, NO.2
63142REINFORCEMENT, ROOF PANEL, NO.2
WITH(MOON ROOF)&SATELLITE RADIO-WITHOUT
WITH(MOON ROOF)
63143BREINFORCEMENT, ROOF PANEL, NO.3
WITH(MOON ROOF)
WITH(MOON ROOF)&SATELLITE RADIO-WITHOUT
63144AREINFORCEMENT, ROOF PANEL, NO.4
63169BPLATE, ROOF PANEL REINFORCEMENT, RH
63179PLATE, ROOF PANEL REINFORCEMENT, LH
63185DBRACKET, ROOF RACK, FRONT
63187ABRACKET, ROOF RACK, REAR
63187EBRACKET, ROOF RACK, REAR
63479RETAINER, ROOF INNER RACK
NO.1
NO.2
6323048010MOULDING ASSY, ROOF WINDOW, SIDE
main63230-48010
9017906274
main90179-06274
9151160612
main91511-60612
20 parts on this diagram · 3 diagrams in section
