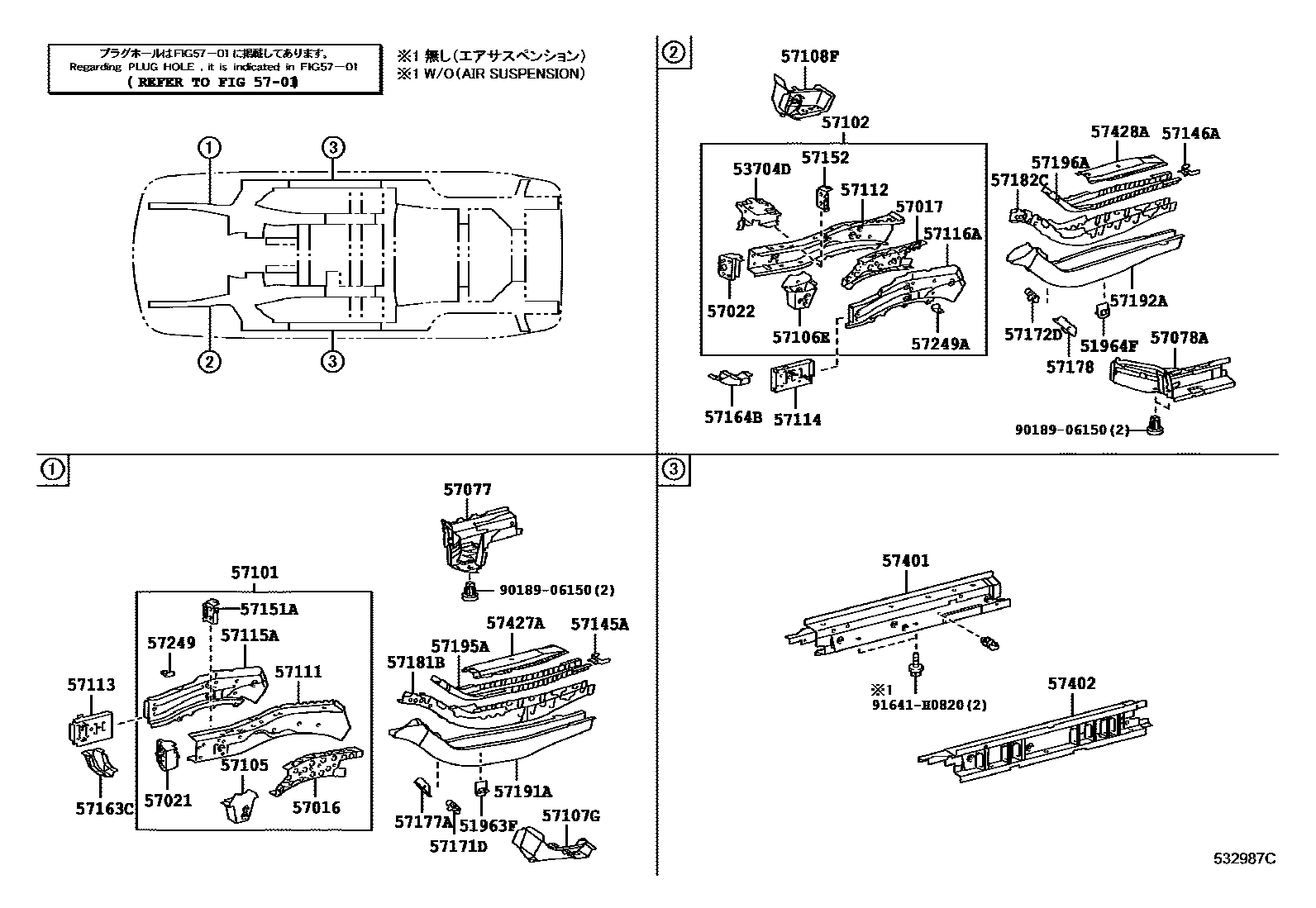

FLOOR SIDE MEMBER
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
53704DSUPPORT SUB-ASSY, BATTERY, LH
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH
57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH
57177APLATE, FRONT SIDE MEMBER, NO.7 RH
57178PLATE, FRONT SIDE MEMBER, NO.7 LH
57181BPLATE, FRONT SIDE MEMBER, NO.3 RH
57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH
9018906150
91641H0820
46 parts on this diagram · 3 diagrams in section
