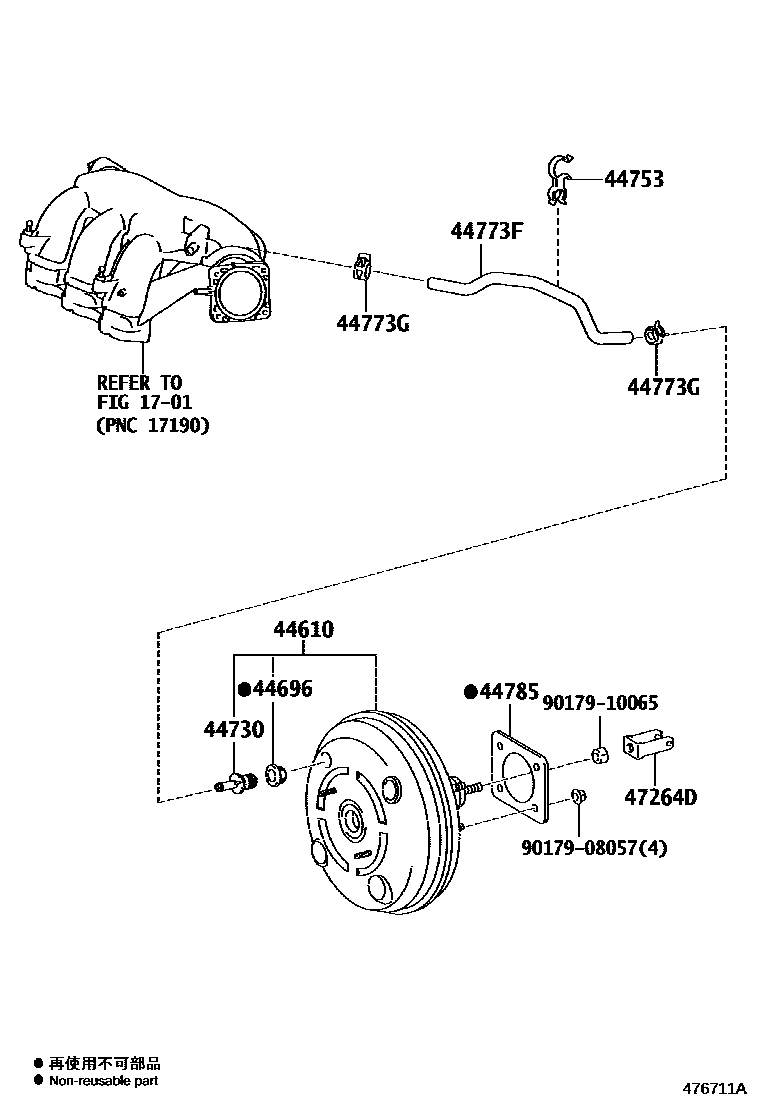

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-48331iGGL1#..JPP200812-201403

main44610-48332iGGL1#..JPP201403-201509

44696GROMMET, CHECK VALVE

main90480-24439iGGL1#..JPP200812-201203

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGGL1#..JPP200812-201006

main44730-60070iGGL1#..JPP201006-201203

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-48310iGGL1#..JPP200812-201203

44773FHOSE, UNION TO CHECK VALVE

main44773-48190iGGL1#..JPP200812-201203

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGGL1#..JPP200812-201203

44785GASKET, BRAKE BOOSTER

main44785-12040iGGL1#..JPP200812-201203

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGGL1#..JPP200812-201203

9017908057

main90179-08057

9017910065

main90179-10065

11 parts on this diagram · 1 diagram in section
