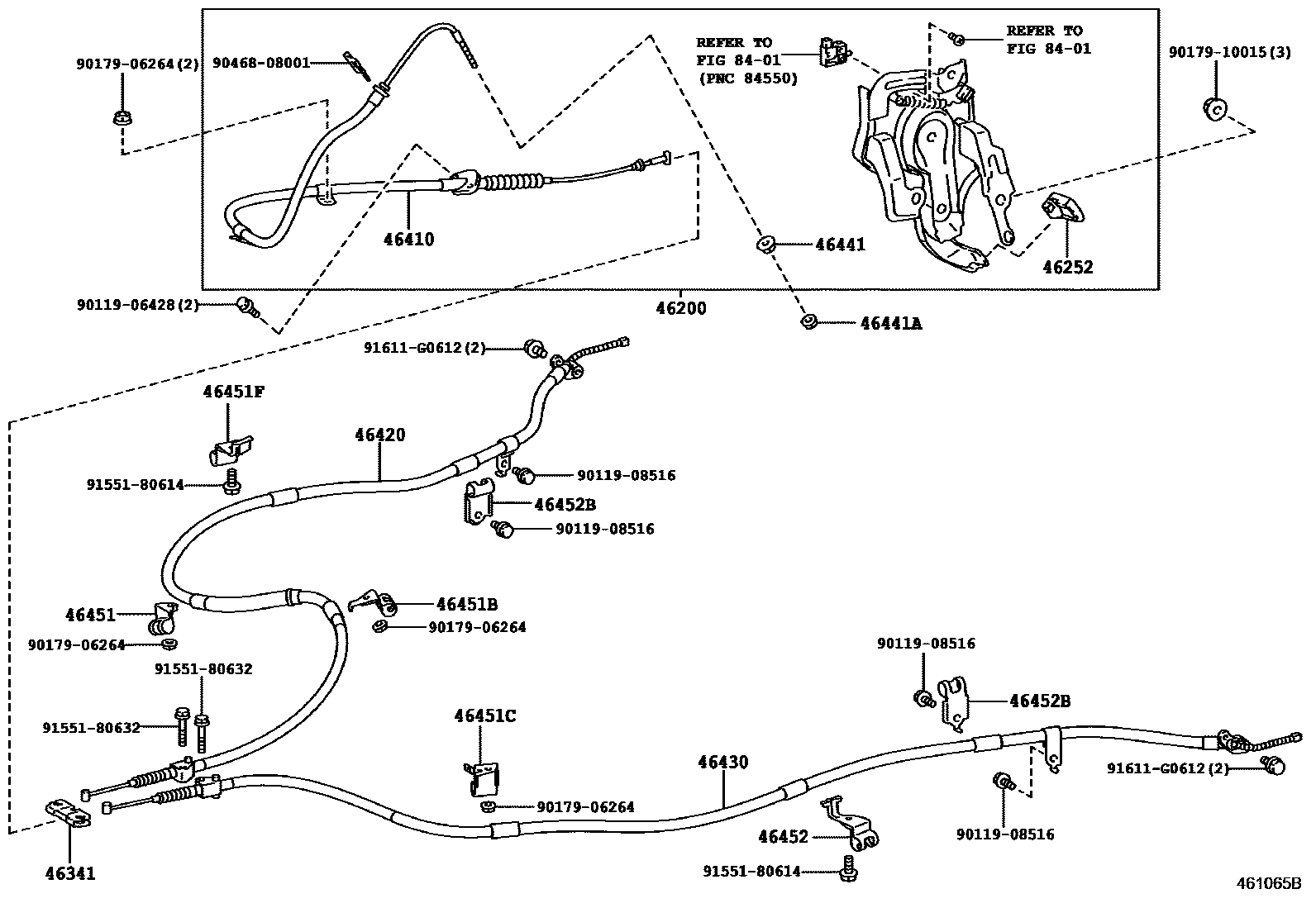

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-48150iGGL1#..JPP200812-201509

main46200-48170iGYL1#..JPP200903-201509

46252PAD, PARKING PEDAL

main46252-22010iGGL1#,GYL1#..JPP200812-201310

main46252-47010iGGL1#,GYL1#..JPP201311

46341EQUALIZER, PARKING BRAKE

main46341-48010iGGL1#,GYL1#..JPP200812-201203

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-48150iGGL1#..JPP200812-201203

main46410-48170iGYL1#..JPP200903-201203

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-48110iGGL1#..JPP200812-201205

sub46420-48111

main46420-48111iGGL1#..JPP201206

main46420-48160iGYL1#..JPP200903-201205

sub46420-48161

main46420-48161iGYL1#..JPP201206

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-48110iGGL1#..JPP200812-201205

sub46430-48111

main46430-48111iGGL1#..JPP201206

main46430-48160iGYL1#..JPP200903-201205

sub46430-48161

main46430-48161iGYL1#..JPP201206

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGGL1#,GYL1#..JPP200812-201203

46441ANUT, WIRE ADJUSTING, NO.2

main94151-80600iGGL1#,GYL1#..JPP200812-201203

46451BRACKET, CABLE SUPPORT

main46451-48180iGYL1#..JPP200903-201203

main46451-48190iGGL1#..JPP200812-201203

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-48260iGYL1#..JPP200903-201203

main46451-48270iGGL1#..JPP200812-201203

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-48070iGGL1#..JPP200812-201203

main46451-48250iGYL1#..JPP200903-201203

46451FBRACKET, CABLE SUPPORT

main46451-48150iGGL1#,GYL1#..JPP200812-201203

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-48160iGGL1#,GYL1#..JPP200812-201203

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-48170iGGL1#,GYL1#..JPP200812-201203

8401

9011906428

main90119-06428

9011908516

main90119-08516

9017906264

main90179-06264

9017910015

main90179-10015

9046808001

main90468-08001

9155180614

main91551-80614

9155180632

main91551-80632

91611G0612

main91611-G0612

23 parts on this diagram · 3 diagrams in section
