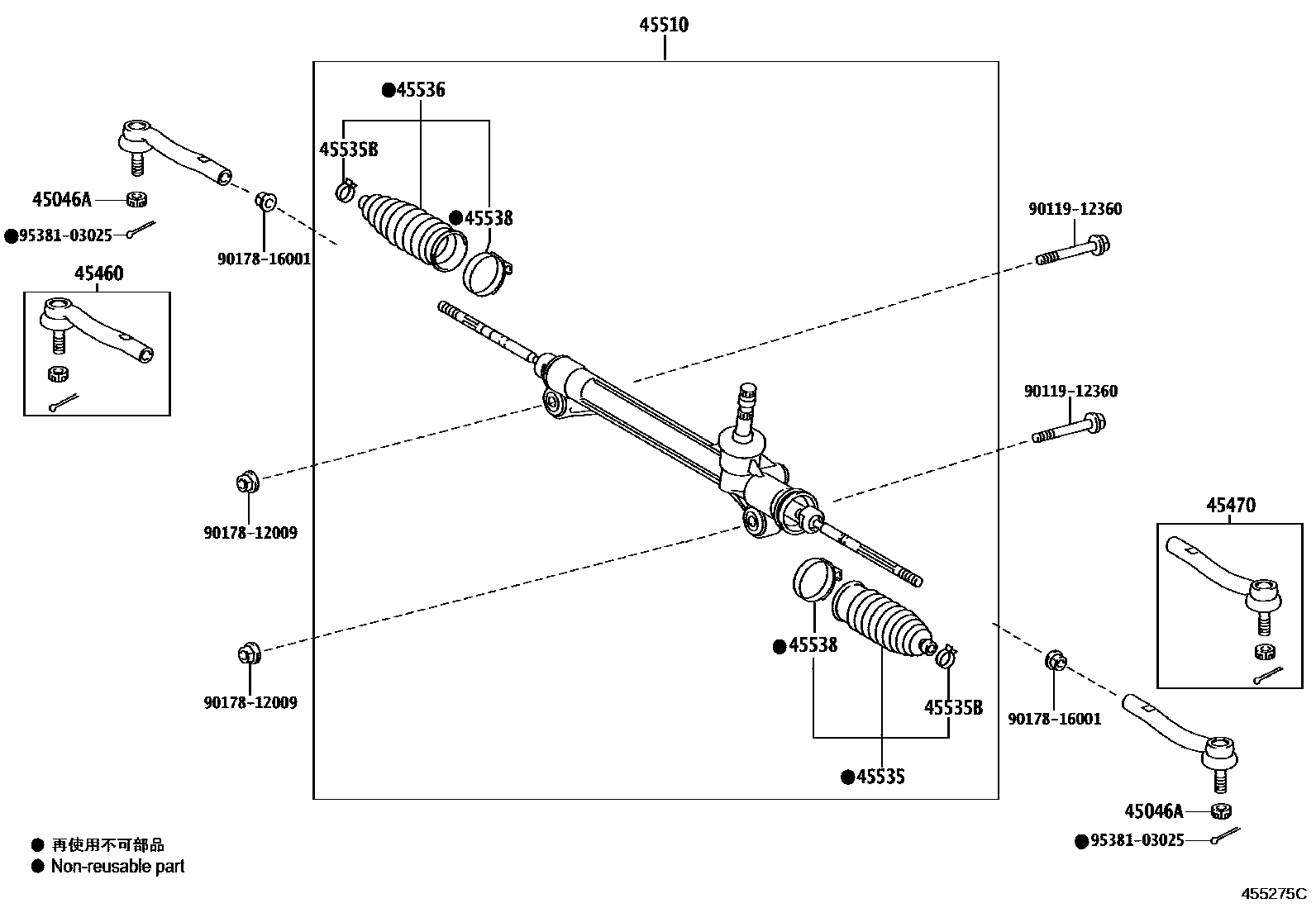

FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iGGL1#,GYL1#..JPP200812-201203

45460ROD ASSY, TIE, RH

main45460-49055iGGL1#,GYL1#..JPP200812-201203

45470ROD ASSY, TIE, LH

main45470-49025iGGL1#,GYL1#..JPP200812-201203

45510GEAR ASSY, STEERING

main45510-48040iGGL1#,GYL1#..JPP200812-201203

45535BOOT, STEERING RACK, NO.1

main45535-49005iGGL1#,GYL1#..JPP200812-201203

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iGGL1#,GYL1#..JPP200812-201203

45536BOOT, STEERING RACK, NO.2

main45535-49005iGGL1#,GYL1#..JPP200812-201203

45538RETAINER, STEERING RACK BOOT

main45538-48020iGGL1#,GYL1#..JPP200812-201203

9011912360

main90119-12360

9017812009

main90178-12009

9017816001

main90178-16001

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section
