E
EPC Data

DISC WHEEL & WHEEL CAP

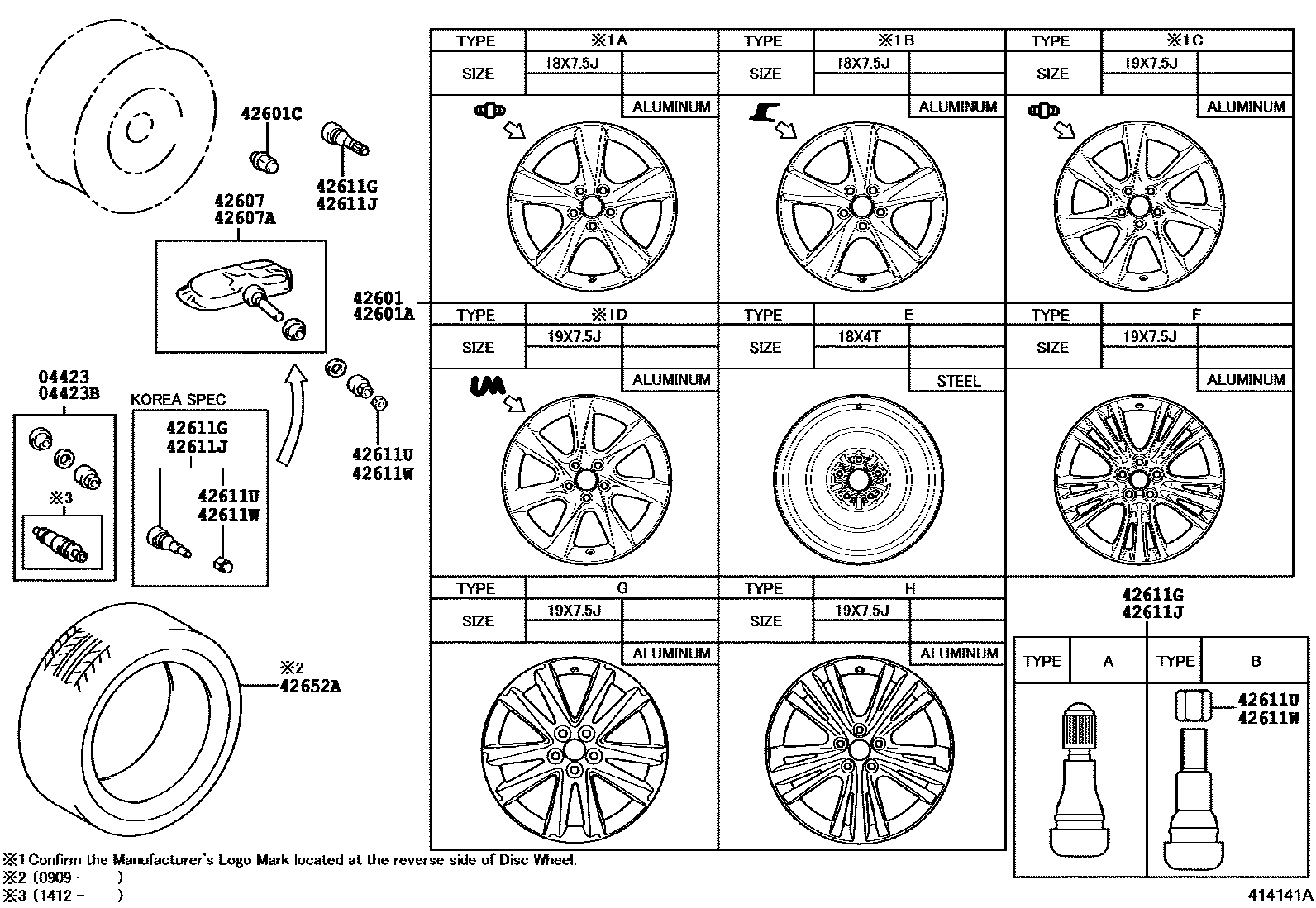

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200812-201411
sub04423-33060
main04423-33060i201412
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i200812-201411
USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i200903-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARE TIRE-GROUNDTIRE
sub04423-33060
main04423-33030i200903-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i200812-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i200812-201008
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i200812-201008
MEXICO SPEC&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i200903-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV
sub04423-33060
main04423-33030i200903-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV
sub04423-33060
main04423-33030i200812-200909
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S
sub04423-33060
main04423-33030i200812-200909
MEXICO SPEC
sub04423-33060
main04423-33030i200812-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S
sub04423-33060
main04423-33030i200812-200909
USA DEPENDANCY SPEC
sub04423-33060
main04423-33030i201203-201411
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUNDTIRE
sub04423-33060
main04423-33030i201203-201411
USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARETIRE-GROUND TIRE
sub04423-33060
main04423-33030i201308-201411
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i201308-201411
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i201308-201411
KOREA SPEC&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i201308-201411
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33030i201203-201411
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33060i201412
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
main04423-33060i201412
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE
main04423-33060i201412
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE
main04423-33060i201412
KOREA SPEC&SPARE TIRE-GROUND TIRE
main04423-33060i201412
USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARETIRE-GROUND TIRE
main04423-33060i201412
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUNDTIRE
main04423-33060i201412
USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE
main04423-33060i201412
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
42601WHEEL, DISC
main42611-48640i200812-201307
18X7.5J,#,TYPE A:REFER ILLUST.
sub42611-48641
main42611-48640i201307-201308
18X7.5J,#,USA DEPENDANCY SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.
sub42611-48641
main42611-48641i201308
18X7.5J,#,TYPE A:REFER ILLUST.
sub42611-48642
main42611-48651i201308
18X7.5J,#,CANADA SPEC,TYPE A:REFER ILLUST.
main42611-48660i200812-201203
18X7.5J,#,TYPE B:REFER ILLUST.
sub42611-48661
main42611-48670i200812-201203
18X7.5J,#,CANADA SPEC,TYPE B:REFER ILLUST.
sub42611-48671
main42611-48680i200909-201008
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-REINFORCEDTEMPORARY(T165/90D18),TYPE C:REFER ILLUST.
main42611-48680i200812-200909
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE C:REFER ILLUST.
main42611-48680i200812-200909
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE C:REFER ILLUST.
main42611-48680i200909-201203
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE C:REFER ILLUST.
main42611-48680i200812-201008
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-48680i200812-201203
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-48680i200812-201203
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE C:REFER ILLUST.
main42611-48680i200812-201203
19X7.5J,#,TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE C:REFER ILLUST.
main42611-48680i200812-201203
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-48690i200812-201203
19X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE C:REFER ILLUST.
main42611-48700i200812-201203
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-201203
19X7.5J,#,TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-201203
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-201203
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200909-201203
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-200909
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-201008
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-200909
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200909-201008
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-REINFORCEDTEMPORARY(T165/90D18),TYPE D:REFER ILLUST.
sub42611-48680
main42611-48710i200812-201203
19X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48690
main42611-48720i200903-201203
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i200909-201203
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i201203-201308
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i201203-201403
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i201203-201403
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i201203-201403
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i201203-201403
19X7.5J,#,TIRE & DISC WHEEL-235/55R19 ALUMI M + S,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i200903-200909
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i200903-201203
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i200903-201203
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i200903-201203
19X7.5J,#,TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48730i200903-201203
19X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV,TYPE F:REFER ILLUST.
sub42611-48731
main42611-48730i201203-201403
19X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S,TYPE F:REFER ILLUST.
sub42611-48731
main42611-48790i201403
19X7.5J SILVER,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE H:REFER ILLUST.
sub42611-48800
main42611-48790i201403
19X7.5J SILVER,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S,TYPE H:REFER ILLUST.
sub42611-48800
main42611-48790i201403
19X7.5J SILVER,TIRE & DISC WHEEL-235/55R19 ALUMI M + S,TYPE H:REFER ILLUST.
sub42611-48800
main42611-48790i201403
19X7.5J SILVER,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE H:REFER ILLUST.
sub42611-48800
main42611-48800i201403
19X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S,TYPE H:REFER ILLUST.
sub42611-48801
main4261A-48030i200812-201203
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-201203
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200909-201008
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-201008
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-200909
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-200909
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200909-201203
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-201203
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-201203
19X7.5J,CHP,TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48040i200812-201203
19X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE C:REFER ILLUST.
sub4261A-48041
main4261A-48050i200812-201203
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-200909
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-200909
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-201008
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200909-201008
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-201203
19X7.5J,CHP,TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-201203
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-201203
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200909-201203
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48060i200812-201203
19X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE D:REFER ILLUST.
sub4261A-48040
main4261A-48070i200903-201203
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i200903-201203
19X7.5J,CHP,TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i200903-201203
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i200903-201203
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARETIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i201203-201307
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i201203-201307
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i201203-201307
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i201203-201307
19X7.5J,CHP,TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i200909-201203
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARETIRE-REINFORCED TEMPORARY(T165/90D18),TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i201203-201308
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-REINFORCED TEMPORARY(T165/90D18),TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i200903-200909
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV,TYPEF:REFER ILLUST.
sub4261A-48071
main4261A-48071i201308
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE F:REFER ILLUST.
sub4261A-48072
main4261A-48071i201308
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48072
main4261A-48071i201308
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48072
main4261A-48071i201308
19X7.5J,CHP,TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE F:REFER ILLUST.
sub4261A-48072
main4261A-48080i201203-201407
19X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE F:REFER ILLUST.
sub4261A-48081
main4261A-48080i200903-201203
19X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV,TYPE F:REFER ILLUST.
sub4261A-48081
main4261A-48081i201408
19X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE F:REFER ILLUST.
sub4261A-48082
main4261A-48110i201203-201403
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE G:REFER ILLUST.
sub4261A-48111
main4261A-48110i201203-201403
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48111
main4261A-48110i201203-201403
19X7.5J,CHP,TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE G:REFER ILLUST.
sub4261A-48111
main4261A-48110i201203-201403
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48111
main4261A-48110i201203-201308
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-REINFORCED TEMPORARY(T165/90D18),TYPE G:REFER ILLUST.
sub4261A-48111
main4261A-48111i201404
19X7.5J,CHP,TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE G:REFER ILLUST.
sub4261A-48112
main4261A-48111i201404
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48112
main4261A-48111i201404
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE G:REFER ILLUST.
sub4261A-48112
main4261A-48111i201404
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48112
main4261A-48120i201203-201307
19X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE G:REFER ILLUST.
sub4261A-48121
main4261A-48121i201308
19X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE G:REFER ILLUST.
sub4261A-48122
main4261A-48130i201203-201404
19X7.5J, #,USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE G:REFER ILLUST.
sub4261A-48131
main4261A-48130i201203-201404
19X7.5J, #,KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT,TYPEG:REFER ILLUST.
sub4261A-48131
main4261A-48130i201203-201404
19X7.5J, #,KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48131
main4261A-48130i201203-201404
19X7.5J, #,USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48131
main4261A-48131i201405
19X7.5J, #,USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),TYPE G:REFER ILLUST.
sub4261A-48132
main4261A-48131i201405
19X7.5J, #,KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT,TYPEG:REFER ILLUST.
sub4261A-48132
main4261A-48131i201405
19X7.5J, #,KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48132
main4261A-48131i201405
19X7.5J, #,USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48132
42601AWHEEL, DISC (FOR SPARE)
main42611-48640i200812-200909
18X7.5J,#,MEXICO SPEC,TYPE A:REFER ILLUST.
sub42611-48641
main42611-48640i200812-201307
18X7.5J,#,USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub42611-48641
main42611-48640i200812-200909
18X7.5J,#,USA DEPENDANCY SPEC,TYPE A:REFER ILLUST.
sub42611-48641
main42611-48640i200812-201308
18X7.5J,#,KOREA SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub42611-48641
main42611-48640i200812-201008
18X7.5J,#,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub42611-48641
main42611-48641i201308-201509
18X7.5J,#,USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub42611-48642
main42611-48641i201308-201509
18X7.5J,#,KOREA SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub42611-48642
main42611-48660i200812-201509
18X7.5J,#,KOREA SPEC&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub42611-48661
main42611-48660i200812-200909
18X7.5J,#,USA DEPENDANCY SPEC,TYPE B:REFER ILLUST.
sub42611-48661
main42611-48660i200812-200909
18X7.5J,#,MEXICO SPEC,TYPE B:REFER ILLUST.
sub42611-48661
main42611-48660i200812-201509
18X7.5J,#,USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub42611-48661
main42611-48660i200812-201008
18X7.5J,#,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub42611-48661
main42611-48680i200812-201203
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-48680i200812-201203
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-48680i200812-201008
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-48680i200812-200909
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE C:REFER ILLUST.
main42611-48680i200812-200909
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE C:REFER ILLUST.
main42611-48700i200812-200909
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-201203
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-201008
19X7.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-200909
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48700i200812-201203
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-48680
main42611-48720i200903-201203
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i201203-201403
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i200903-201203
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i201203-201403
19X7.5J,#,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48720i200903-200909
19X7.5J,#,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV,TYPE F:REFER ILLUST.
sub42611-48721
main42611-48750i200812-201509
18X4T,TYPE E:REFER ILLUST.
sub42611-48751
main42611-48750i201308-201509
18X4T,KOREA SPEC&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-48751
main42611-48750i201308-201509
18X4T,USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-48751
main42611-48790i201403-201509
19X7.5J SILVER,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE H:REFER ILLUST.
sub42611-48800
main42611-48790i201403-201509
19X7.5J SILVER,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE H:REFER ILLUST.
sub42611-48800
main4261A-48030i200812-201008
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-201203
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-201203
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-200909
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48030i200812-200909
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE C:REFER ILLUST.
sub4261A-48040
main4261A-48050i200812-200909
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-201203
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-201203
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-200909
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48050i200812-201008
19X7.5J,CHP,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-48030
main4261A-48070i200903-201203
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i200903-201203
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARETIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i201203-201307
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i201203-201308
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48071
main4261A-48070i200903-200909
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV,TYPEF:REFER ILLUST.
sub4261A-48071
main4261A-48071i201308-201509
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48072
main4261A-48071i201308-201509
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
sub4261A-48072
main4261A-48110i201203-201403
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48111
main4261A-48110i201203-201403
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48111
main4261A-48111i201404-201509
19X7.5J,CHP,KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48112
main4261A-48111i201404-201509
19X7.5J,CHP,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48112
main4261A-48130i201203-201404
19X7.5J, #,USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48131
main4261A-48130i201203-201308
19X7.5J, #,KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48131
main4261A-48130i201308-201404
19X7.5J, #,KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-48131
main4261A-48131i201405-201509
19X7.5J, #,USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48132
main4261A-48131i201405-201509
19X7.5J, #,KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
sub4261A-48132
42601CNUT, HUB (FOR AXLE)
main90942-01033i200812-201203
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-30070i201308-201404
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC&SPARE TIRE-GROUND TIRE
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S
sub42607-30071
main42607-30071i201405
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE
main42607-30071i201405
KOREA SPEC&SPARE TIRE-GROUND TIRE
main42607-30071i201405
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S
main42607-30071i201405
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
main42607-30071i201405
KOREA SPEC
main42607-30071i201405
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT
main42607-30071i201405
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE
main42607-30071i201405
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK
main42607-33021i200812-201203
sub42607-33022
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-30070i201308-201404
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC&SPARE TIRE-GROUND TIRE
sub42607-30071
main42607-30070i201308-201404
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
sub42607-30071
main42607-30071i201405
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
main42607-30071i201405
KOREA SPEC&SPARE TIRE-GROUND TIRE
main42607-30071i201405
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE
main42607-30071i201405
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE
main42607-33021i200812-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE
sub42607-33022
main42607-33021i200812-200909
USA DEPENDANCY SPEC
sub42607-33022
main42607-33021i200812-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S
sub42607-33022
main42607-33021i200812-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S
sub42607-33022
main42607-33021i200812-200909
MEXICO SPEC
sub42607-33022
main42607-33021i200812-200909
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S
sub42607-33022
main42607-33021i200812-200909
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S
sub42607-33022
main42607-33021i200903-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV
sub42607-33022
main42607-33021i200903-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV
sub42607-33022
main42607-33021i200812-201008
MEXICO SPEC&SPARE TIRE-GROUND TIRE
sub42607-33022
main42607-33021i200812-201008
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE
sub42607-33022
main42607-33021i200812-201008
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE
sub42607-33022
main42607-33021i200812-201203
USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE
sub42607-33022
main42607-33021i200812-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE
sub42607-33022
main42607-33021i200903-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE
sub42607-33022
main42607-33021i200903-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARE TIRE-GROUNDTIRE
sub42607-33022
main42607-33021i201203-201403
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
sub42607-33022
main42607-33021i201203
USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARETIRE-GROUND TIRE
sub42607-33022
main42607-33021i201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUNDTIRE
sub42607-33022
42611GVALVE (FOR TUBELESS TIRE)
main90942-05028i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S,TYPE B:REFER ILLUST.
main90942-05028i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i200812-201308
KOREA SPEC&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i200812-201308
KOREA SPEC,TYPE B:REFER ILLUST.
main90942-05028i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S,TYPE B:REFER ILLUST.
main90942-05028i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV,TYPE B:REFER ILLUST.
main90942-05028i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV,TYPE B:REFER ILLUST.
main90942-05028i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i201203-201308
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT,TYPE B:REFER ILLUST.
main90942-05028i201203-201308
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S,TYPE B:REFER ILLUST.
main90942-05028i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK,TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i200812-201509
TYPE A:REFER ILLUST.
main90942-05009i201308-201509
KOREA SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
main90942-05009i201308-201509
USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
main90942-05028i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i200812-201203
KOREA SPEC&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i201203-201308
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main90942-05028i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
42611UCAP, TIRE VALVE
main90942-05029i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE
main90942-05029i200812-201308
KOREA SPEC
main90942-05029i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S
main90942-05029i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S
main90942-05029i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE
main90942-05029i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE
main90942-05029i200812-201308
KOREA SPEC&SPARE TIRE-GROUND TIRE
main90942-05029i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV
main90942-05029i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV
main90942-05029i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE
main90942-05029i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARE TIRE-GROUND TIRE
main90942-05029i201203-201308
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT
main90942-05029i201203-201308
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE
main90942-05029i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S
main90942-05029i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
main90942-05029i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK
main90942-05037i200812-201207
main90942-05042i201207-201509
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05029i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE
main90942-05029i200812-201308
KOREA SPEC&SPARE TIRE-GROUND TIRE
main90942-05029i200812-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE
main90942-05029i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE
main90942-05029i200903-201203
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARE TIRE-GROUND TIRE
main90942-05029i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE
main90942-05029i201203-201308
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE
main90942-05029i201203-201308
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
main90942-05037i200812-200909
USA DEPENDANCY SPEC
main90942-05037i200812-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S
main90942-05037i200812-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S
main90942-05037i200812-200909
MEXICO SPEC
main90942-05037i200812-200909
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S
main90942-05037i200812-200909
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S
main90942-05037i200903-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV
main90942-05037i200903-200909
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV
main90942-05037i200812-201008
MEXICO SPEC&SPARE TIRE-GROUND TIRE
main90942-05037i200812-201008
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE
main90942-05037i200812-201008
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE
main90942-05037i200812-201207
USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE
main90942-05037i200812-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-GROUND TIRE
main90942-05037i200812-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-GROUND TIRE
main90942-05037i200903-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-GROUND TIRE
main90942-05037i200903-201203
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARE TIRE-GROUNDTIRE
main90942-05037i201203-201207
USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARETIRE-GROUND TIRE
main90942-05037i201203-201207
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
main90942-05037i201203-201207
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUNDTIRE
main90942-05042i201308-201509
KOREA SPEC&SPARE TIRE-GROUND TIRE
main90942-05042i201308-201509
KOREA SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-GROUND TIRE
main90942-05042i201308-201509
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUND TIRE
main90942-05042i201308-201509
KOREA SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
main90942-05042i201207-201509
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-GROUND TIRE
main90942-05042i201207-201509
USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARETIRE-GROUND TIRE
main90942-05042i201207-201509
USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARE TIRE-GROUNDTIRE
main90942-05042i201207-201509
USA DEPENDANCY SPEC&SPARE TIRE-GROUND TIRE
42652ATIRE (FOR SPARE)
main4265A-48040i200909-201509
T165/90D18,USA DEPENDANCY SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i200909-201203
T165/90D18,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i200909-201203
T165/90D18,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i200909-201203
T165/90D18,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S HV&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i200909-201203
T165/90D18,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S M+S HV&SPARETIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i201203-201308
T165/90D18,USA DEPENDANCY SPEC&F SPORT&TIRE & DISC WHEEL-235/55R19 ALUMI M + S F-SPORT&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i201203-201308
T165/90D18,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i201203-201308
T165/90D18,USA DEPENDANCY SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M + S DARK&SPARETIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i200909-201008
T165/90D18,MEXICO SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i200909-201008
T165/90D18,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 ALUMI M+S&SPARE TIRE-REINFORCEDTEMPORARY(T165/90D18)
sub4265A-48012
main4265A-48040i200909-201008
T165/90D18,MEXICO SPEC&TIRE & DISC WHEEL-235/55R19 VERSION S ALUMI M+S&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
sub4265A-48012

12 parts on this diagram · 2 diagrams in section

DISC WHEEL & WHEEL CAP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
